Pure Lockers - Locker
Verified by manufacturer 4 months ago
CHAS
Certificate type
Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type

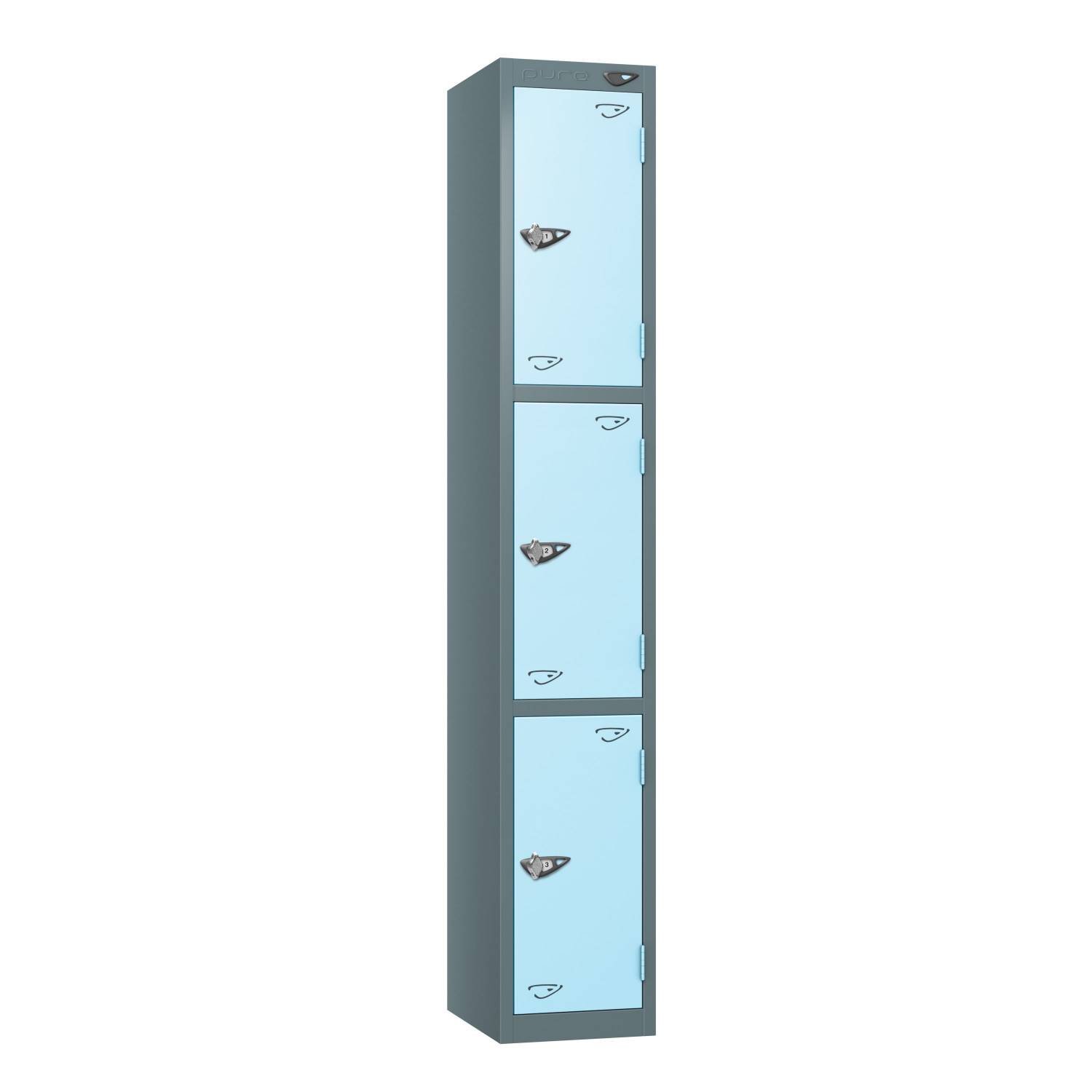

Steel bodied lockers with Steel or SGL door
Application
Office Changing Rooms, Commercial Environments, Cloakrooms
Description
Our steel bodied lockers are manufactured from 0.7 mm thick carbon steel and 0.9 mm thick carbon steel doors.
We also offer SGL door options for an aesthetically pleasing look with increased durability.
Available with a range of different shelving options and configurations ask us about our small compartment lockers, power charging lockers, pupil lockers and garment handling lockers.
150 mm high metal powder coated stands (silver grey) with adjustable feet available upon request. Integral Benching available upon request.
Cam lock as standard but other lock options are available at an additional cost (coin return, digital, combination, hasp and staple).
Cost effective and durable, these lockers are the perfect choice when humidity is not an issue.
Suitable for dry environments only.
General information
Finish | Powder-coated |
Material | Steel |
Length | 300 mm 380 mm 450 mm |
Width | 300 mm 380 mm 450 mm |
Height | 1800 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/220 Lockers |
Specification data - Lockers
Locker type | Single.Guidance for specification option: Single tier including top shelf and double coat hook 2 Tier.Guidance for specification option: 2 Tier including dividing shelf and double coat hook 3 Tier.Guidance for specification option: Includes dividing shelves 4 Tier.Guidance for specification option: Includes dividing shelves 5 Tier.Guidance for specification option: Includes dividing shelves 6 Tier.Guidance for specification option: Includes dividing shelves |
Dimensions | 300 x 300 x 1800 mm.300 x 380 x 1800 mm.300 x 450 x 1800 mm.380 x 300 x 1800 mm.380 x 380 x 1800 mm.380 x 450 x 1800 mm.450 x 300 x 1800 mm.450 x 380 x 1800 mm.450 x 450 x 1800 mm.Manufacturer guidanceSize (w x d x h). |
Material | Locker Bodies: Manufactured from 0.7 mm thick carbon steel carcass. Locker Doors: 0.9 mm thick carbon steel. All bodies are manufactured in accordance with BS 4680:1996. |
Colour | Manufacturer guidance
|
Fittings | Five knuckle steel hinge. Cam Lock with two keys and number disc to door.Guidance for specification option: Coin return, digital, combination, hasp and staple locking options also available upon request. Consult manufacturer for details and insert requirements. Manufacturer guidanceCNC drilled components with Cam and Dowel fixing assembly |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Steel |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
Locker Range
