Proofex Cavitydrain 200
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type
High density polyethylene (HDPE) profiled drained cavity former and damp proof membrane.
Application

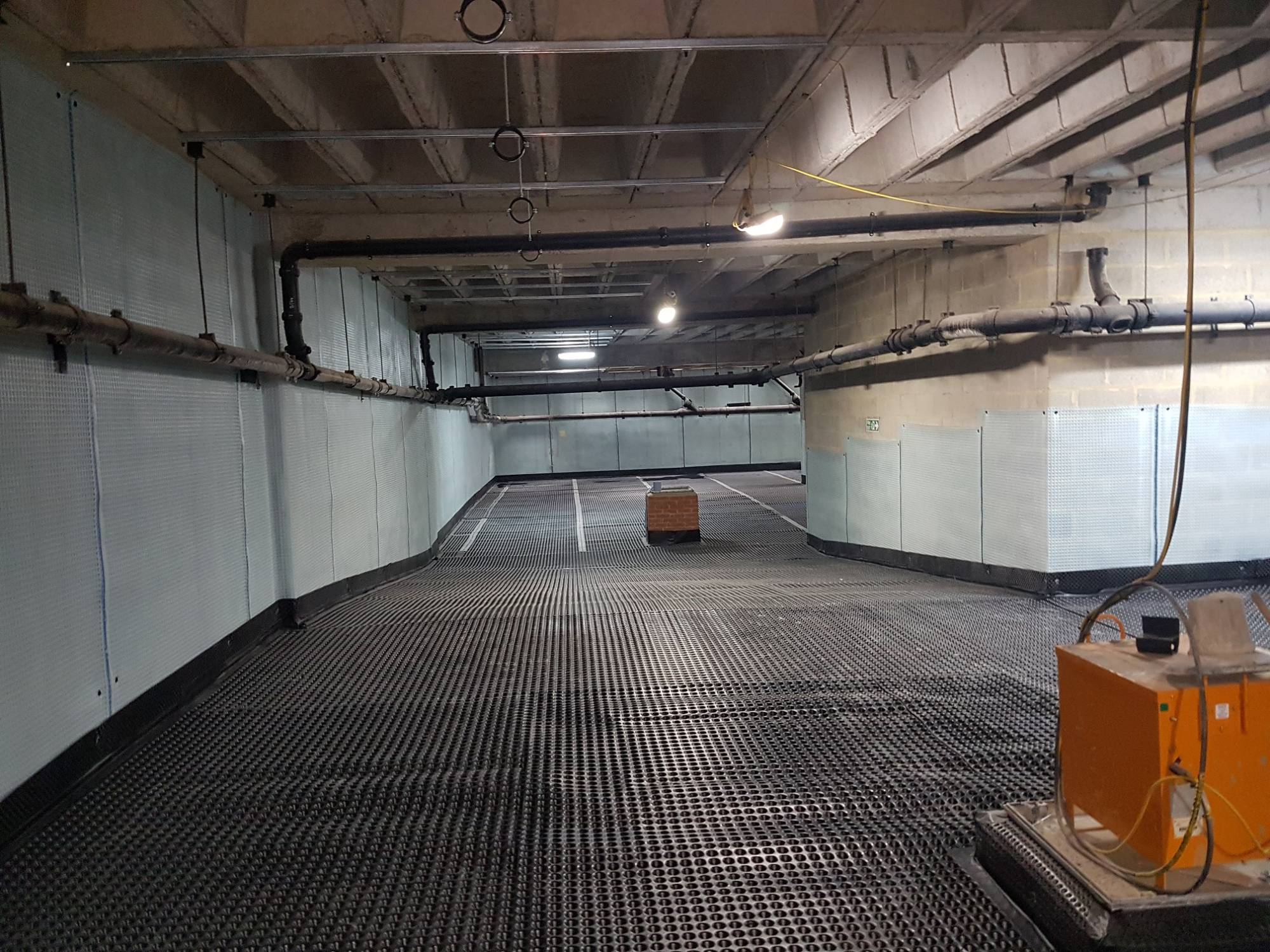

Proofex Cavitydrain 200 is typically laid onto basement floor slabs where Type C (Drained Cavity) protection is required either as the sole protective measure or in conjunction with Type A (Barrier) or Type B (Integral) waterproofing to achieve the required grade of protection in accordance with the recommendations of BS 8102.
Description

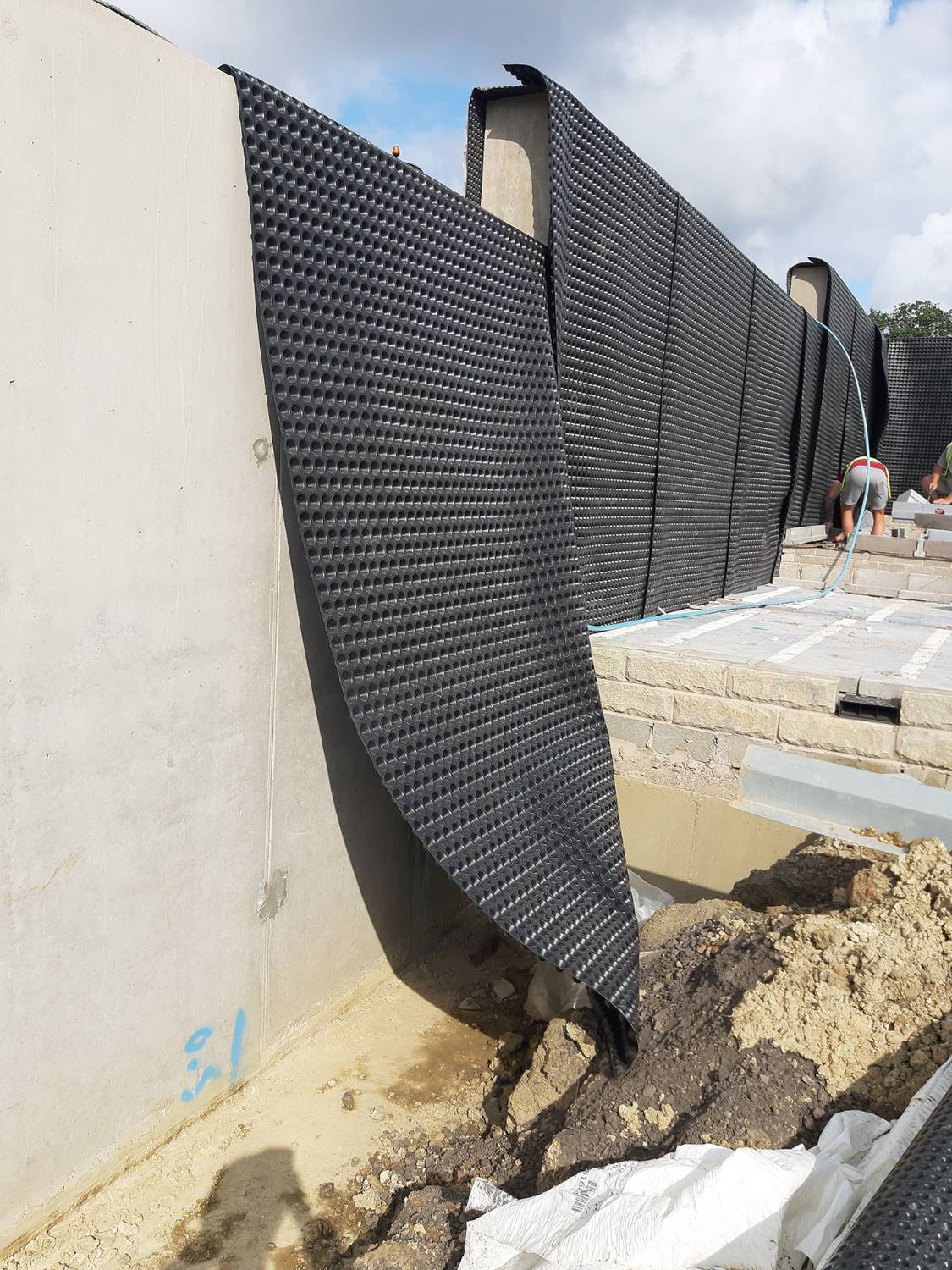

Proofex Cavitydrain is a profiled HDPE membrane with ribbed conical voids spaced to permit high water flow through a permanent void against the sub-structure face.
Any water ingress through the structural concrete will not enter the internal environment because Proofex Cavitydrain provides a continuous water and damp proof drainage former to connect with drainage channels or outlets cast into the floor. Internal application in a controlled environment increases security against waterproofing failure.
Features and benefits:
- Resistant to most acids, alkalis, oils and fuels.
- Suitable for new and existing construction projects.
- Acceptable for all water table classifications.
General information
Color | Black |
Material | Polyethylene |
Length | 20000 mm |
Width | 2000 mm |
Height | 20 mm |
Warranty description | Manufacturer guidanceA project specific warranty document for an agreed period for products supplied in accordance with a detailed specification document is available on request. |
Uniclass | |
CAWS | J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane |
Specification data - High-density polyethylene (PE-HD) studded sheets
Standard | To EN 13967. |
Third-party certification | British Board of Agrément (BBA) Certificate. |
Stud height | 20 mm. |
Sheet thickness | 1 mm. |
Weight (minimum) | 0.95 kg/m². |
Colour | Black. |
Performance characteristics | |
Flow rate | To BS EN ISO 12958 at 20 kPa, 10 L/s.m (vertical), 2.50 L/s.m (horizontal). |
Fire performance | To EN 13967, Class F. |
Sealing | Proofex Cavitydrain Sealing Tape. |
Joints | 30 mm minimum overlap between sheets. |
Fixing | Proofex Cavitydrain Fixing Plugs with Seals. |
Tensile strength (minimum) | MD: 530 N/50mm, CMD: 500 N/50mm. |
Tear resistance | 350 N. |
CompressiveStrength | To ISO 25619-2, 150 kN/m. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyethylene |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
BBA Agrément Certificate
Proofex Cavitydrain 200
Literature
Proofex Cavitydrain Technical Datasheet
Technical Datasheet Catalogue 15th Edition
Proofex Cavitydrain Safety Datasheet
