Profiles XL Inverted Warm System
Verified by manufacturer 5 days ago

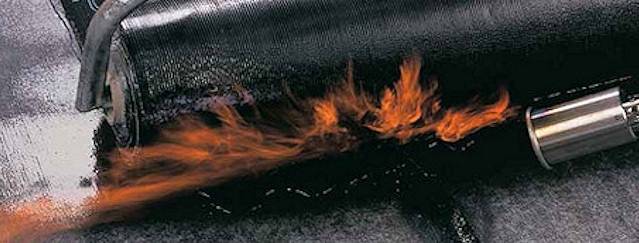

A two layer, high performance, SBS modified bitumen, torch-on flat roofing system.
Application
Suitable for direct application to non-combustible substrates only, such as concrete/ screed, or in overlay situations onto existing asphalt/ built-up roof (BUR) substrates. Specify Profiles T.A. System for combustible substrates such as plywood or OSB.
Preparation:
- Consult manufacturer for details of the preparation and priming of the intended roof structure and substrate, and for details of the requirements for preparation layers, venting layers, nailing layers and taping strips.
Description
Two layer system incorporating a range of styrene butadiene styrene (SBS) modified, elastomeric bitumen membranes and accessories. Profiles Systems incorporate a ‘striped’ pattern. This advanced vapour release technology has been designed to dissipate moisture vapour that may be trapped in the roofing system. When this trapped moisture warms, it can form pressure pockets within the system. Low melt bitumen needs a minimal application of flame to activate its fast adhesive properties.
Features and benefits:
- Offer a design and specification service (recommended that they are consulted early on in the design process).
Components:
- Ballast.
- Waterproofing.
- Separation layer: Icopal SLP 300.
- Insulation: Thermazone Hydroshield IVR.
- Filtration layer: Monarperm 700 Water Reducing Layer.
General information
Color | Blue Grey Green Brown Manufacturer guidanceCapsheet colour. |
Material | Bitumen Guidance for specification option: Styrene butadiene styrene (SBS) modified. |
Shape | Other |
Uniclass | |
CAWS | J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/14 Reinforced bitumen membrane inverted roof covering |
Specification data - Reinforced bitumen membrane inverted roof covering systems
Waterproof covering | |
Top layer | |
Type | Profiles XL Sand Capsheet. Guidance for specification option: Torch-applied capsheet. Manufacturer guidanceTop layer/ Capsheet. |
System accessories | None. Icopal GRP Edge Trims. Icopal Roofgard Outlet. Icopal Roofgard Parapet Outlet. Icopal Lightning Conductor Pads. Icopal Roofgard Cable and Tube Duct. Icopal Roofgard Cowled Telescopic Vent. |
Primer | Icopal Siplast Bitumen Primer. Guidance for specification option: Quick-drying primer for torch-applied membranes. |
Underlay | Profiles Vent XL. Guidance for specification option: Torch-applied membrane with stripes on underside to provide partial bond. Profiles XL Sand. Guidance for specification option: Fully bonded torch-applied membrane. |
Underlay | Icopal T.A. Detailing Underlay. Guidance for specification option: 3 mm self-adhesive underlay. Profiles XL Sand. Guidance for specification option: 4 mm torch-applied membrane. |
Capsheet | FireSmart T.A. Detailing Capsheet. Guidance for specification option: Self-adhesive capsheet. Profiles XL Mineral Capsheet. Guidance for specification option: Torch-applied capsheet. Thermaweld Capsheet. Guidance for specification option: Torch-applied capsheet. |
Colour | Green. Brown. Blue-grey. Manufacturer guidanceCapsheet colour. |
