Profiles SGL Panel Cubicle

Description

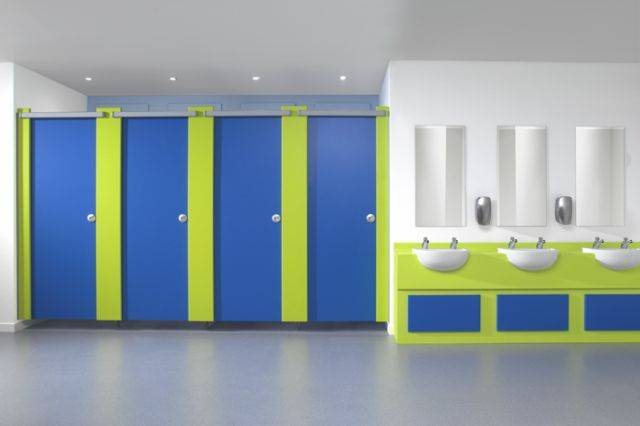

Profiles SGL is a cubicle that delivers functional style and features shaped pilasters and a distinct lintel style headrail.

Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Solid grade laminate panels, supplied with polished black radiused edges.
  • Frame comprising: Headrail, pilaster, legs, hinges and channel.

General information

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems

Product Reference

Profiles SGL Panel Cubicles

Colour

-

Headrail & Legs

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Blue

Powder coated aluminium.

Green

Powder coated aluminium.

Red

Powder coated aluminium.

Yellow

Powder coated aluminium.

Hinges & Channels

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Faceplate

Charcoal grey

Powder coated ABS.

Silver

Powder coated ABS.

Blue

Powder coated ABS.

Green

Powder coated ABS.

Red

Powder coated ABS.

Yellow

Powder coated ABS.

Panels & Pilasters

Refer to manufacturer's standard colour range.

Pilaster head

Square

Arrowhead

Crescent

Accessories

None

Other requirements

None

Stylex printed doors

Standard product features

Panel Material:

  • Solid grade laminate, 1400 kg/m³.
  • Thickness (overall): 13 mm.
  • Edge detail: Polished black radiused edge.

Floor Clearance:

105mm.

Height:

2000mm.

Pilasters:

Solid grade laminate in a choice of colours - select from manufacturer's literature.

Legs:

Powder coated aluminium with plastic moulded shroud.

Product Options

Colours:

- Panels & Pilasters: 36 laminate colour options and 4 digital prints - select from manufacturer's literature.

Accessories:

- Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.

Literature

Main Washrooms Brochure
