Prodok SLS - Safe Loading System For Cold Storage Applications

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

The Prodok SLS is a specialist loading solution, designed to provide superior temperature and hygiene control for facilities handling sensitive goods.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Controlled logistics.
  • Food and drink manufacturing.
  • Pharmaceutical manufacturing.
  • Health and cosmetics.

Description

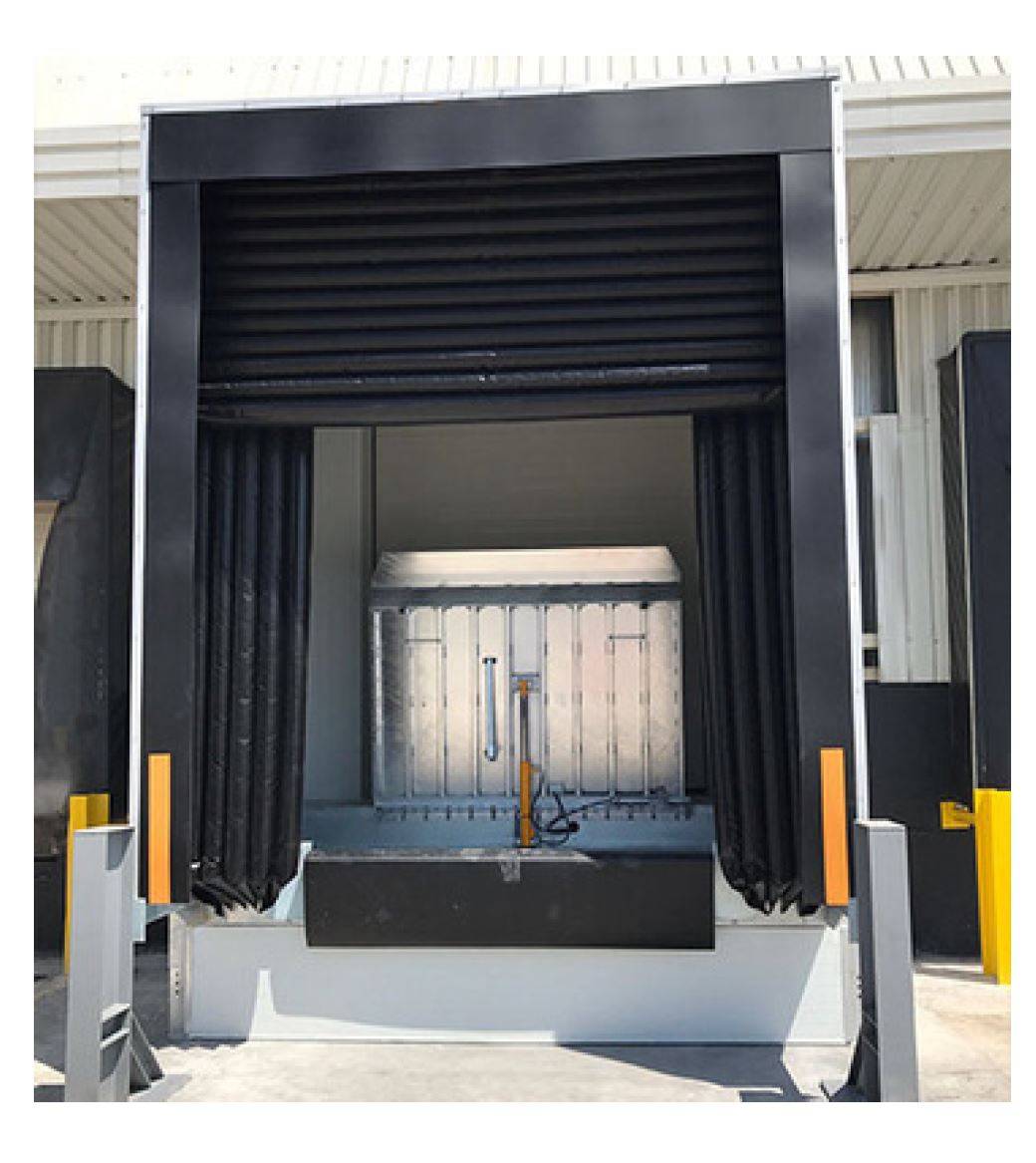

Complete with bay door, levelling equipment, inflatable dock shelter, insulated steel platform and cladding (where required), the Prodok SLS offers the complete loading bay package.


The system has been designed to enable the loading vehicle to dock with its rear doors closed. This ensures that the product's environment is kept consistent for the duration of the loading procedure.


Upon completion of docking, the inflatable dock shelter is activated, providing a complete seal, before the bay door to the loading area is opened. The vehicle doors are then opened, and the dock levelling equipment is engaged so the loading/ unloading process can begin.


With its robust construction, this product is suitable for frequently used loading bays.


The system can be installed inside the building, or as a free-standing external package with either a vertical loading bridge, or telescopic dock leveller.


Features and benefits:

  • Complete loading bay solution.
  • Superior temperature control.
  • Improved hygiene control.
  • Robust steel construction.

General information

Color

Black

White

Other

Finish

Primed

Painted

Galvanized

Material

Steel

Shape

Rectangle

Square

Other

Length

Bespoke

Manufacturer guidance

Bespoke sizes available.

Width

Bespoke

Manufacturer guidance

Bespoke sizes available.

Height

Bespoke

Manufacturer guidance

Bespoke sizes available.

Warranty description

One year

Uniclass

Ss_25_30_20_45 Loading bay doorset systemsPrimary

CAWS

L20/617 Loading bay door and docking system

Specification data - Loading bay doorset systems

System components

Cladding.

Guidance for specification option:

Where required.

Hydraulic telescopic-lip dock leveller, 1000 mm lip.

Hydraulic telescopic-lip dock leveller, 500 mm lip.

Inflatable dock shelter.

Insulated steel platform.

Sectional overhead doorset.

System accessories

EPDM seals.

Guidance for specification option:

For Prodok Ultra PT.

Anti-drop protection.

Guidance for specification option:

For Prodok Ultra PT.

Anti-slip platform.

Guidance for specification option:

For Prodok Ultra PT.

Toe-guards.

Guidance for specification option:

For Prodok Ultra PT.

Anti-slip paint on platform.

Guidance for specification option:

For Prodok Ultra PT.

Size:

Size (w x l x h): 3500 x 2400 x 3700 mm.

Load capacity

6000 kg (maximum).

Construction

A pit mounted insulative base, supporting an internal dock leveller or vertical loading bridge. Complete with an internally mounted dock door and externally mounted inflatable dock shelter.

Guidance for specification option:

Standard.

A free-standing insulated steel platform housing a dock leveller or vertical loading bridge and covered by an insulated steel frame housing to support an inflatable dock shelter.

Guidance for specification option:

Optional.

Platform

Fixed steel frame enclosed with sheet steel material. Primed and painted steel.

Guidance for specification option:

Optional.

Not applicable.

Guidance for specification option:

Standard.

Housing

Steel frame construction, coved with insulated panels. Housing roof constructed with a 5° pitch to prevent the accumulation of rainwater. Primed and painted steel.

Guidance for specification option:

Optional.

Not applicable.

Guidance for specification option:

Standard.

Power supply

415 V, three-phase power.

Installation

External installation.

Internal installation.

Component material/ finish:

RAL 7016 anthracite grey paint.

Guidance for specification option:

Standard dock leveller finish.

Galvanized.

Guidance for specification option:

Optional dock leveller finish.

Plastisol-coated.

Polyester powder-coated.

Frame

Pit mounted frame with rear angle.

Guidance for specification option:

For Prodok Ultra PT.

'F' type frame with side and rear angles. Box frame to be cast into floor slab.

Guidance for specification option:

For Prodok Ultra PT.

Control

Standard one button control panel.

Guidance for specification option:

For Prodok Ultra PT.

Combination panel to interlock with the door and/ or inflatable shelter.

Guidance for specification option:

For Prodok Ultra PT.

Interlocked with other loading bay components for automatic operation.

Guidance for specification option:

For Prodok LSI Inflatable Dock Shelter.

Seperate push button to turn the shelter on/ off manually.

Guidance for specification option:

For Prodok LSI Inflatable Dock Shelter.

Colour:

Sunflower Yellow.

Flame Red.

Sapphire Blue.

Khaki Green.

Olive Green.

Show more

Manufacturer guidance

Rollashield Isodor colour.


Activation

Manual hand-chain.

Manual push up (spring assist).

Motor Operation.

Vision panels

Rectangular rounded.

Guidance for specification option:

For Rollashield Isodor.

Rectangular.

Guidance for specification option:

For Rollashield Isodor.

Panoramic style door.

Guidance for specification option:

For Rollashield Isodor.

None.

Air permeability

Class 2.

Class 4.

Thickness:

Rollashield Isodor: 40 mm thickness.

Rollashield Isodor: 80 mm thickness.

Safety

Spring break device, Cable break device.

Guidance for specification option:

For Rollashield Isodor.

Bottom optical safety edge.

Guidance for specification option:

For Rollashield Isodor.

Safety Photocell.

Guidance for specification option:

For Rollashield Isodor.

Fixing

Galvanized steel brackets mounted at dock height.

Guidance for specification option:

For Prodok LSI Inflatable Dock Shelter.

Full height side panels extending to floor level.

Guidance for specification option:

For Prodok LSI Inflatable Dock Shelter.

Sustainability data

Material

Steel
