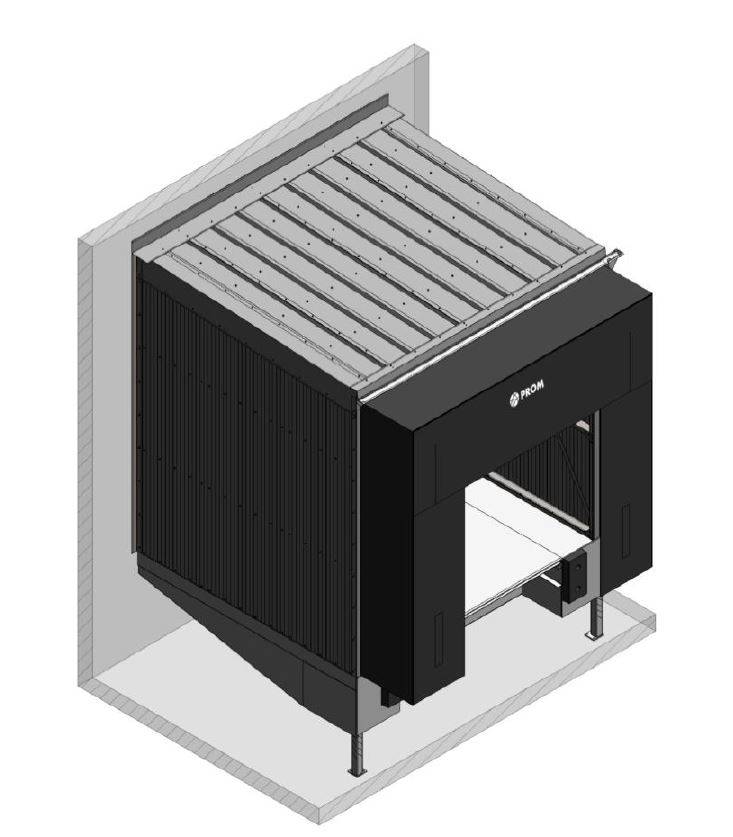

Complete loading bay package.
The Prodok Load LH is a high quality, loading house range, designed to provide a hygienic and effective loading solution for sites with limited warehouse or yard space. With its hygienic design and robust construction, this product is suitable for high traffic loading areas.

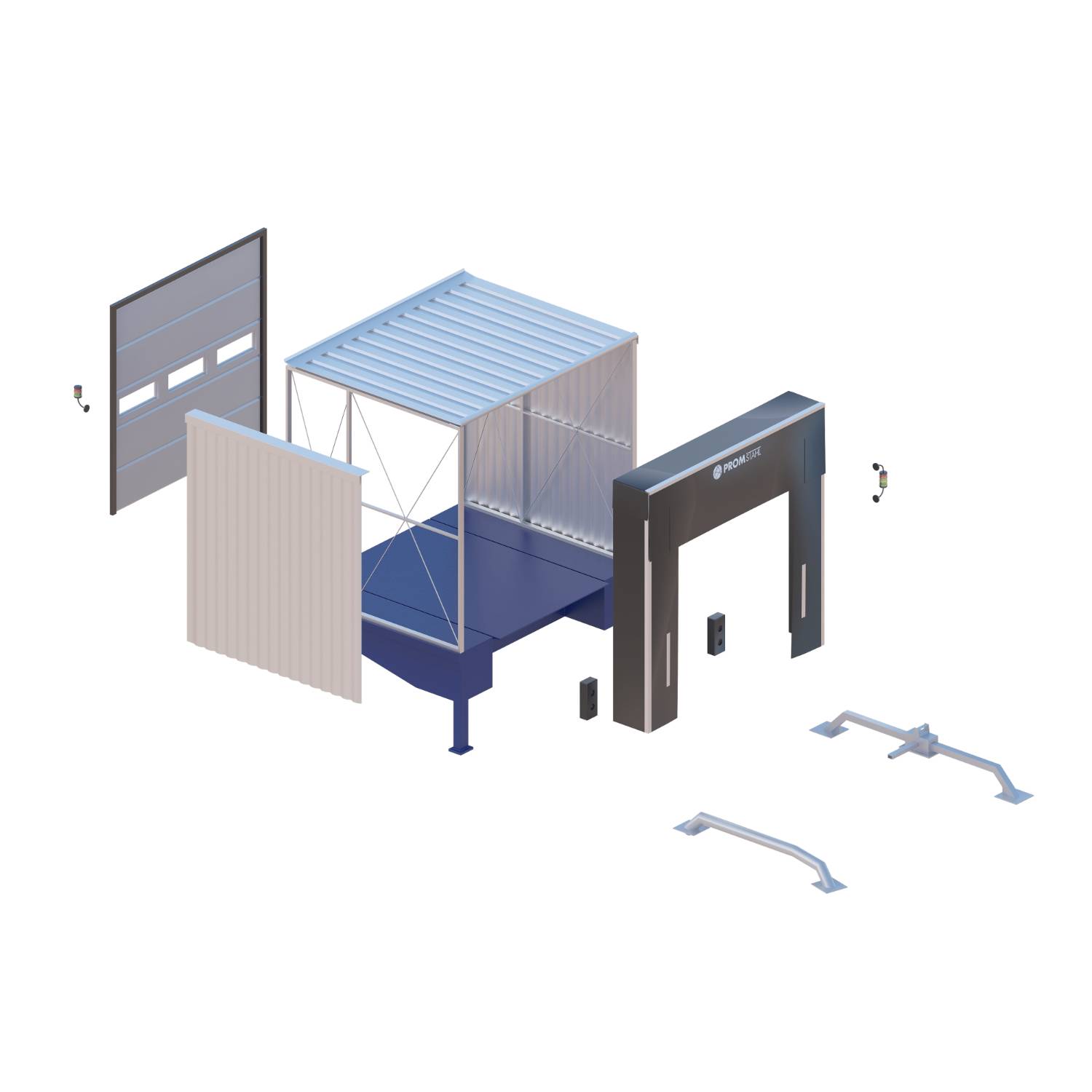

Complete with door, dock leveller, shelter, steel platform and cladding, the Prodok Load offers the complete package.
The product has been designed for three purposes. Firstly, where buildings have limited internal space, this solution allows for a dock to be installed on the outside of the building. Secondly, where sites have limited yard space, loading houses can be installed at an angle, to allow lorries to utilize yard space to maximum efficiency. Thirdly, this loading solution is preferable for hygiene sensitive industries (food and pharmaceutical) due to the externally mounted dock leveller minimizing rodent ingress points to the main building.
Available with either a mechanical or inflatable dock shelter, this range of dock houses are suitable for both temperature controlled and ambient facilities.
Features and benefits:
Color | Black White Grey Other |
Finish | Galvanized Painted Powder-coated |
Material | Steel |
Shape | Square Rectangle |
Length | 2580 mm Bespoke |
Width | 3400 mm Bespoke |
Height | 3660 mm Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/617 Loading bay door and docking system |
System components | A free-standing steel platform with height-adjustable legs and optional walkways housing a dock leveller. Covered by a steel frame housing to support the dock shelter. |
Trim | Non-insulated.Guidance for specification option: Steel frame construction, coved with aanti-drip ribbed steel panel which slopesto prevent the accumulation of rainwater. Insulated.Guidance for specification option: Insulated cold-room panel for improved temperature control. |
System accessories | Walkway. |
Size: | Manufacturer guidance
|
Components | Swing lip dock leveller. Guidance for specification option: Please consult Prodok UltraPS datasheet for details. Telescopic lip dock leveller. Guidance for specification option: Please consult Prodok Ultra PT datasheet for details. |
Shelter | Inflatable dock shelter. Guidance for specification option: Please consult ProdokSeal LSI datasheet for details. Mechanical dock shelter. Guidance for specification option: Please consult Prodok SealLSM datasheet for details. |
Power supply | 415 V, three-phase power. |
Finish: | Galvanized. Primed and painted. Manufacturer guidanceHousing and platform finish. |
Material | Steel |
