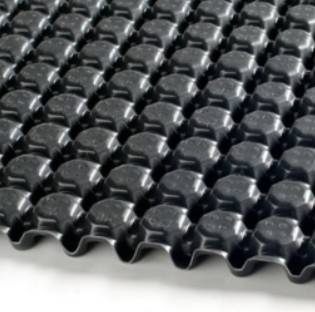

Pro-Living® Bio-Solar Drainage Board - Bio-Solar Green Roof Component
Verified by manufacturer 2 days ago
A cuspated moisture and flow retention layer for extensive or bio-diverse roofs with integrated bio-solar photovoltaic (PV) mounting.
Application
Suitable for use on extensive and bio-diverse roofs with waterproofing membranes such as Cold Melt®, Proteus Hot Melt®, Pro-BW® Plus, Pro-BW® LO, and Proteus Pro-Felt® Ultima Plus Anti-Roof Capsheet.
For installation above the Pro-Living® Bio-Solar Mount.
Description
Pro-Living® Bio-Solar Drainage Board is a cuspated moisture and flow retention layer for extensive or bio-diverse roofs with integrated bio-solar PV mounting.
Features and benefits:
- Made from deep-drawn recycled HDPE.
- Integrated bio-solar PV mounting.
- Water reservoir function.
- Channel system on the underside for drainage.
- Diffusion and drainage holes.
- Suitable for use with a wide range of waterproofing membranes.
Should be installed in accordance with the requirements of BS 6229, BS 8217, BS 8000-0 and BS 8000-4.
Consult manufacturer/ literature for installation guidelines.
General information
Color | Black |
Finish | Studded |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 2000 mm |
Width | 500 mm 1000 mm |
Height | 25 mm |
Warranty description | Other Guidance for specification option: Defects arising from lack of maintenance or abnormal use may fall outside of the cover of the Proteus Waterproofing guarantee. |
Uniclass | |
CAWS | Q37/350 Drainage layer Q37/340 Moisture retention mat |
Specification data - High-density polyethylene (PE-HD) studded sheets
Classification data | |
Product reference | Pro-Living® Bio-Solar Drainage Board. |
Performance characteristics | |
Water storage capacity | 5 L (maximum). Manufacturer guidanceWater reservoir. |
Flow rate | To EN ISO 12958, 0.99 L/s/m at 1% gradient; 1.41 L/s/m at 2% gradient; 2.20 L/s/m at 5% gradient. Manufacturer guidanceWater discharge capacity. |
Sheet thickness | 25 mm. |
Weight (minimum) | 1.35 kg/m². |
Colour | Black. |
Width | 0.5 m. 1 m. |
Compressive strength | To EN ISO 25619-2, unfilled: 200 kN/m²; unfilled with 10% compression: 90 kN/m²; filled: 175 kN/m². Guidance for specification option: All figures are approximate. |
Volume | 14.5 L (maximum). Manufacturer guidanceFilling volume. |
Sustainability data
Material | High density polyethylene (HDPE) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceMade from deep-drawn recycled HDPE. |
