Pro Clima Tescon Naideck - Nail Sealing Tape
Verified by manufacturer 6 months ago
Double-sided nail sealing tape.
Application
- Nail sealing tape under counter battens for sloped roof structures.
- In accordance with the Central Association of the German Roofing Trade (ZVDH), the use of nail sealing tapes in combination with 'underlays/ sarking membranes with seam and perforation protection' (SOLITEX connect variants) is a required additional measure in the case of “more demanding requirements” (e.g. if the roof pitch is less than the standard roof pitch).
- If required, TESCON NAIDECK also serves as a suitable additional measure to create a temporary covering.
Description
Butyl rubber double-sided nail sealing tape with siliconized paper release film.
Features and benefits:
- Very good sealing effect: sealing material is pulled into the hole created when a nail or screw is fitted.
- Conforms to regulations: satisfies the requirements of ZVDH and of SIA 232/1.
- Reliable during the construction phase: suitable for temporary coverings / sealing during construction work.
General information
Color | Black |
Finish | Smooth |
Material | Butyl |
Shape | Rectangle |
Length | 20000 mm |
Width | 50 mm 75 mm |
Height | 1 mm Guidance for specification option: Thickness. |
Warranty description | Ten year |
Uniclass | |
CAWS | H65/10 Reconstituted slate roof tiling H60/3 Roof tiling H65/5 Roof tiling H60/120 Concrete roof tiling H60/105 Clay roof tiling H64/10 Wood shingle/ shake roofing H67/5 Metal roof tiling H64/15 Vertical wood shingle/ shakes H67/8 Metal vertical tiling H62/3 Roof slating H61/5 Roof slating H67/130 Metal vertical tiling H67/110 Metal roof tiling H65/135 Ceramic slate roof tiling H65/125 Reconstituted slate roof tiling H65/115 Concrete roof tiling H65/105 Clay roof tiling H64/130 Vertical wood shingle/ shakes H64/110 Wood shingle/ shake roofing H62/145 Roof slating H62/125 Roof slating H62/105 Roof slating H61/105 Roof slating |
Specification data - Butyl rubber sealant tapes
Fire performance | |
Fire resistance | NPD (no performance determined). |
Reaction to fire | NPD (no performance determined). |
Core | |
Material | Butyl rubber. |
Bond | Double-sided nail sealing tape. |
Size | 50 mm wide.75 mm wide. |
Colour | Black. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | Not recyclable due to permanent bond |
Literature

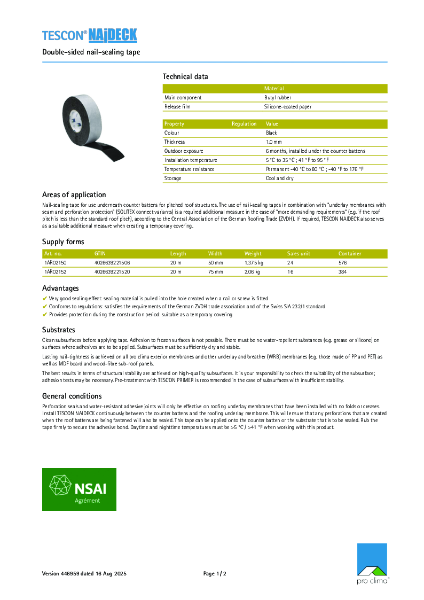

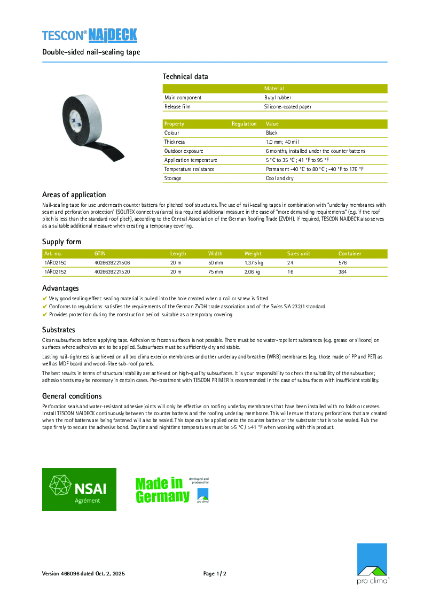

Pro Clima Tescon Naideck Technical Datasheet
Pro Clima Warranty Agreement
Thermal Roof Solutions Leaflet
Airtightness Made Easy Ecological Building Systems Leaflet
Pro Clima Product Portfolio
Tescon Naideck Material Safety Datasheet
