Double Glazed - Contemporary

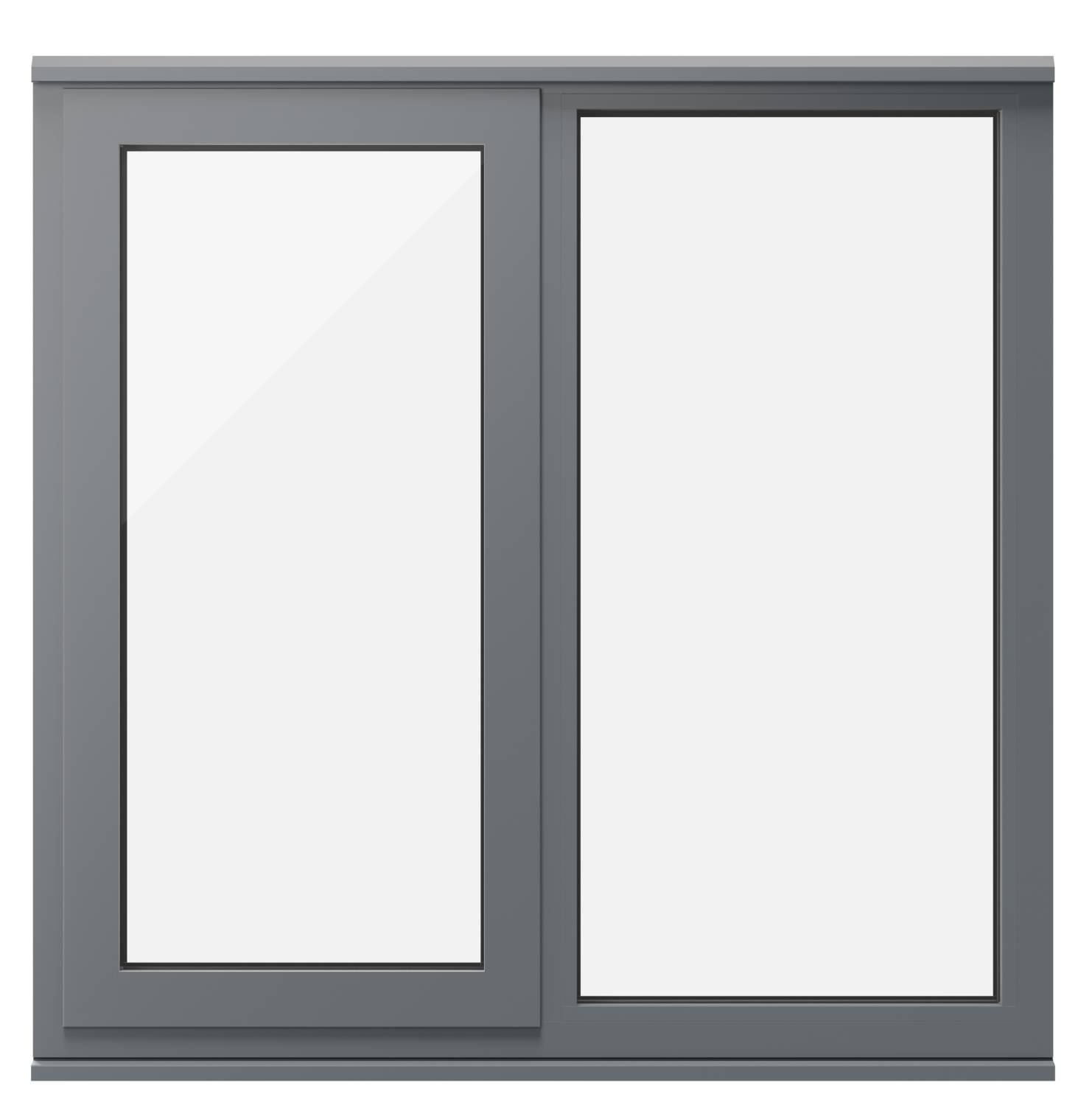

Aluminium casement windows that combine exceptional thermal performance with refined looks.
Suitable for a wide range of projects.
The stylish aluminium casement windows seamlessly blend exceptional thermal performance with a refined aesthetic, making them a suitable choice for contemporary spaces. Thoughtfully crafted to complement modern interior trends, they feature slim sashes that maximize natural light, enhancing the sense of openness and tranquillity within a space. Their sleek design not only elevates the visual appeal of any setting but also ensures superior energy efficiency and comfort.
The entire Prestige window range is Part L compliant, able to achieve a double-glazed U-value of 1.4 W/m²K which easily achieves compliance for new homes and non-dwelling commercial projects.
Features and benefits:
Color | Grey Black Brown Cream White |
Finish | Powder-coated Matt Gloss Metallic Satin |
Material | Aluminium Glass |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Powder-coated finish, thermlock performance and profile integrity. Ten year Guidance for specification option: Gasket integrity. Other Guidance for specification option: Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details. Manufacturer guidanceSheerline components are covered by a comprehensive guarantee - consult manufacturer for details. |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Dimensions and configurations | Manufacturer guidanceInsert requirements.
|
Product performance | |
Weather performance | |
Air permeability | Class 4. |
Watertightness | Class E750. |
Resistance to wind load | Class CE2400. |
Safety | |
Security level | To PAS 24. To PAS 24 and Secured by Design certification. |
Environmental | |
Background ventilation | As Approved Document F: Ventilation. Guidance for specification option: Consult manufacturer's literature for details. |
Acoustic performance rating | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Thermal | |
Whole window U-value | 1.4 W/m2K. |
British Fenestration Rating Council Window Energy Rating | B. |
Frame | |

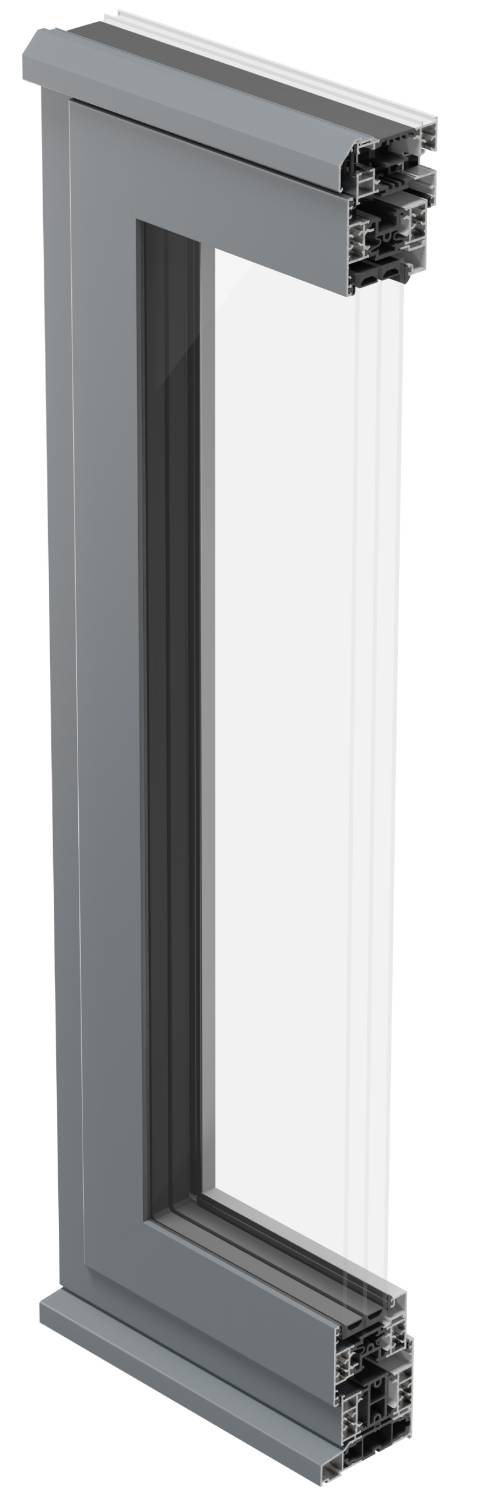

Profile | Contemporary - SP102/SP301 (stub cill SA010). Guidance for specification option:
|
Finish as delivered | |
Coating | Powder coating to BS EN 12206-1. Guidance for specification option: Qualicoat 'seaside class' and Sherwin-Williams approved powder-coating. |
Colour | Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Cream, RAL 9001, matt. Agate grey, RAL 7038, matt. Squirrel grey, RAL 7000, matt. Pastel turquoise, RAL 6034, matt. Chocolate brown, RAL 8017, matt. Silver metallic effect. Mid bronze metallic effect. Black metallic effect. Black cherry laminated foil. Golden oak laminated foil. White laminated foil. Irish oak laminated foil. Anthracite grey laminated foil. Black brown laminated foil. Chartwell green laminated foil. Bespoke. Guidance for specification option:
Manufacturer guidanceExternal frame colour.
For Internal colour, see Internal colour property below. |
Film thickness (minimum) | Coating applicator to determine. |
Ventilator | Not required. Concealed ventilation shroud. |
Glazing or infill | |
Requirements | Double glazing, 28 mm (4/20/4). Guidance for specification option: Clear/ Argon/ Planitherm Total+. Double glazing, 28 mm (4/18/6.8). Guidance for specification option: Clear/ Argon/ Laminated Planitherm Total+. |
Hardware | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Operation | |
Type | Manual. |
Electrical supply | None, manual operation. |
Fixing features | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Sightline | Intermediate, 102 mm. |
Internal colour | As external. Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Manufacturer guidanceInternal frame colour.
External frame colour specified above. |
Transoms and mullions | Not required. Standard (SP200). Flush (SP210). Intermediate (SP201). |
Extensions | Not required. 25 mm extension (SA015). 45 mm extension (SA016). |
Joints | Not required. Concealed (SA507). Standard (SA013/SA013). Butt joint (SA018/SA018). HD (SA014/SA013). Manufacturer guidanceJoints and couplers. |
Glazing bars | Not required. Decorative bar, small flat Georgian bar (SA036). Decorative bar, large flat Georgian bar (SA037). Decorative bar, stepped dummy mullion (SC230). |
Corners | Not required. 90° corner. 135° corner. 150° corner. Variable 100–170° corner. |
Accessories | Not required. Structural add on, vertical (SA014/SA030). Structural add on, horizontal (SA010/SA030). Structural add on, retrofit (SA030). |
Country of material origin | United Kingdom Guidance for specification option: UK sourced aluminium. |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recyclability | Sustainable recycling friendly |
