Classic Beadless French Window - Aluminium Window

Verified by manufacturer 2 days ago

Sheerline Product certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • Secured By Design

    Secured By Design

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

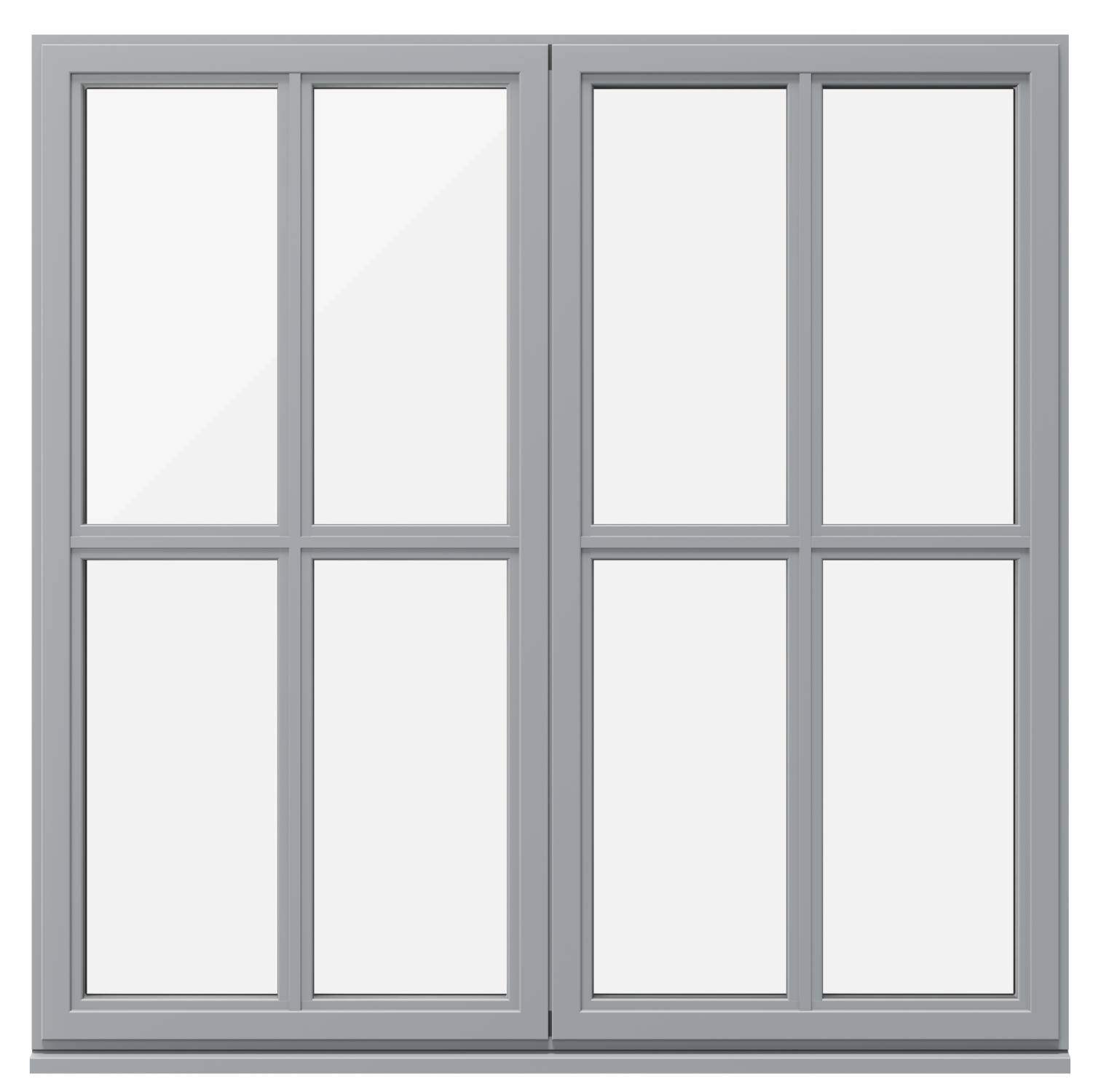

Beadless French window system.

Jump to:
01332 978000 Website

Application

Window system for projects requiring extra security and unrivalled aesthetics with reduced installation times.

Description

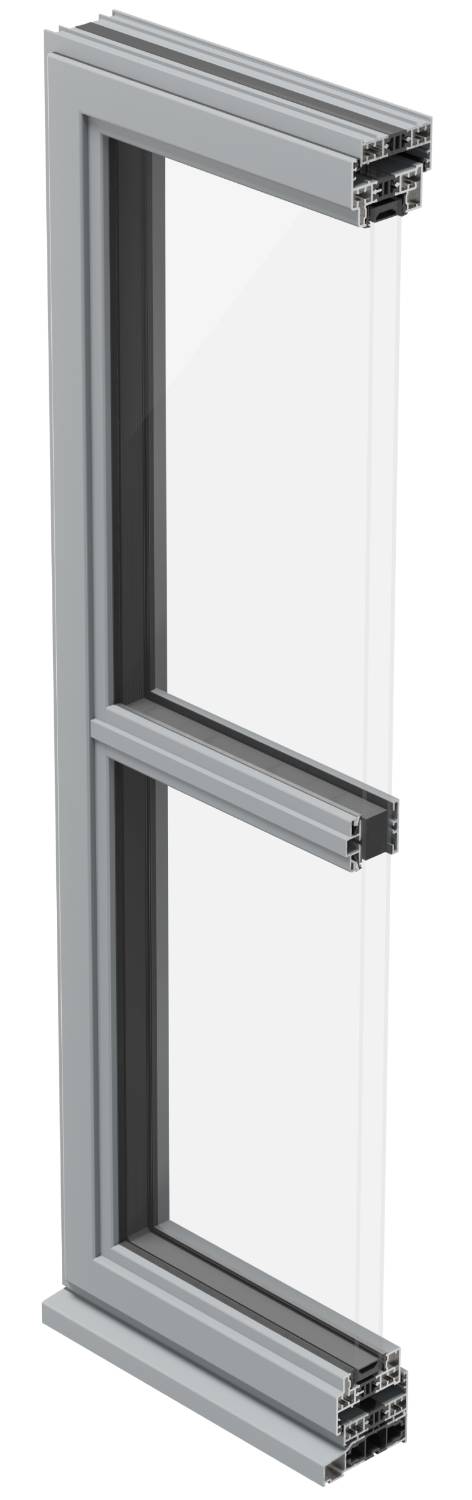

Classic beadless French aluminium window system offering exceptional aesthetics and security. The units feature refined internal corners with run through mitres on internal joints for a seamless finish. It’s beadless construction also eliminates a common area of attack by would-be intruders.

Features and benefits:

  • Run through mitres on internal corners.
  • Matches standard casement sightlines.
  • Suitable for fire egress applications (subject to minimum opening requirements).
  • Self locating: easy installation with hinges fitting into self-locating slots that hold sashes in position while they are screwed in place.
  • Quick to install: beadless windows are supplied pre-glazed, and feature built-in toe and heeling device meaning there’s no need to spend time wedge gasketing.
  • Ultimate security: beadless construction eliminates a common area of attack. While patented corner joint allows for on site deglazing if required.
  • Available in multiple colours and finishes.
  • Designed to meet the latest requirements of the built environment.
  • Double glazed, providing A window energy rating.
  • 28 mm glazing.
  • Corner posts and ancillaries feature the same Thermlock® technology and co-extruded weather seals to lock-in thermal performance and quality.
  • Multi-material gasket prevents shrinkage and features low friction coatings on bi-fold and bubble gaskets.
  • Different outer frame sizes can be used together if required.
  • Both systems designed around equal sightlines and shadow gaps for consistent aesthetics with a consistent 6 mm of cover across both systems.
  • Cill components clip together to reduce complexity. Available in stub, standard, large and XL sizes and feature an integrated cement key.
  • Four style options: stepped, stepped flush, contemporary and flush contemporary.
  • Part L compliant.

General information

Color

Grey

Black

Brown

Cream

White

Show more

Finish

Powder-coated

Matt

Gloss

Metallic

Satin

Show more

Material

Aluminium

Glass

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Powder-coated finish, thermlock performance and profile integrity.

Ten year

Guidance for specification option:

Gasket integrity.

Other

Guidance for specification option:

Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details.

Manufacturer guidance

Sheerline components are covered by a comprehensive guarantee - consult manufacturer for details.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Dimensions and configurations

-

Manufacturer guidance

Insert requirements.

  • Minimum size with small outer frame (width x height): 732 x 420 mm.
  • Maximum size with small outer frame (width x height): 1477 x 1501 mm.
  • Maximum side hung sash size (width x height): 710 x 1450 mm.

Product performance

-

Weather performance

-

Air permeability

Class 4.

Watertightness

Class 9A.

Resistance to wind load

Class CE2400.

Safety

-

Security level

To PAS 24.
To PAS 24 and Secured by Design certification.

Environmental

-

Background ventilation

As Approved Document F: Ventilation.

Guidance for specification option:

Consult manufacturer's literature for details.

Acoustic performance rating

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Thermal

-

Whole window U-value

1.5 W/m2K.

British Fenestration Rating Council Window Energy Rating

A.

Frame

-

Profile

Stepped - SC100/SC300 (stub cill SA010).

Guidance for specification option:

  • SC100 small outer frame, 59 mm sightline.
  • SC300 stepped.
  • Cill: stub cill SA032, 85 mm cill width.

Stepped flush - SC101/SC300 (standard cill SA011).

Guidance for specification option:

  • SC101 small outer frame, 59 mm sightline.
  • SC300 standard flush.
  • Cill: standard cill SA011, 158 mm cill width.

Contemporary - SC100/SC301 (large cill SA012).

Guidance for specification option:

  • SC100 small outer frame, 59 mm sightline.
  • SC300 contemporary.
  • Cill: large cill SA012, 175 mm cill width.

Contemporary flush - SC101/SC301 (XL cill SA032).

Guidance for specification option:

  • SC101 small outer frame, 59 mm sightline.
  • SC301 contemporary flush.
  • Cill: extra large cill SA032, 233 mm cill width.

Finish as delivered

-

Coating

Powder coating to BS EN 12206-1.

Guidance for specification option:

Qualicoat 'seaside class' and Sherwin-Williams approved powder-coating.

Colour

Anthracite grey, RAL 7016, matt.
Pure white, RAL 9010, gloss.
Hipca gloss white, RAL 9910, gloss.
Jet black, RAL 9005, matt.
Cream, RAL 9001, matt.
Agate grey, RAL 7038, matt.
Squirrel grey, RAL 7000, matt.
Pastel turquoise, RAL 6034, matt.
Chocolate brown, RAL 8017, matt.
Silver metallic effect.
Mid bronze metallic effect.
Black metallic effect.
Black cherry laminated foil.
Golden oak laminated foil.
White laminated foil.
Irish oak laminated foil.
Anthracite grey laminated foil.
Black brown laminated foil.
Chartwell green laminated foil.
Bespoke.

Guidance for specification option:

  • Bespoke powder-coated colours available in matt, satin, gloss or textured finishes.
  • Bespoke laminated foil colours available to meet project requirements.
  • Consult manufacturer for details and insert requirements.

Manufacturer guidance

External frame colour.

  • Single and dual colours available as standard.
  • Bespoke options available.

For Internal colour, see Internal colour property below.

Film thickness (minimum)

Coating applicator to determine.

Ventilator

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Glazing or infill

-

Requirements

Double glazing, 28 mm (4/20/4).

Guidance for specification option:

Clear/ Argon/ Planitherm* Total+.

Double glazing, 28 mm (4/18/6.8).

Guidance for specification option:

Clear/ Argon/ Laminated Planitherm Total+.

Hardware

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Operation

-

Type

Manual.

Electrical supply

None, manual operation.

Fixing features

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Sightline

Small, 59 mm.

Internal colour

As external.

Anthracite grey, RAL 7016, matt.

Pure white, RAL 9010, gloss.

Hipca gloss white, RAL 9910, gloss.

Jet black, RAL 9005, matt.

Show more

Manufacturer guidance

Internal frame colour.

  • Powder-coated - as external colour or dual colour available.
  • Bespoke options available.

External frame colour specified above.

Transoms and mullions

Not required.

Transom/ mullion option (SC200).

Extensions

Not required.

25 mm extension (SA015).

45 mm extension (SA016).

Joints

Not required.

Concealed (SA507).

Standard (SA013/SA013).

Butt joint (SA018/SA018).

HD (SA014/SA013).

Show more

Glazing bars

Not required.

Decorative bar, small flat Georgian bar (SA036).

Decorative bar, large flat Georgian bar (SA037).

Decorative bar, stepped Georgian bar (SC238).

Corners

Not required.

90° corner.

135° corner.

150° corner.

Variable 100–170° corner.

Accessories

Not required.

Structural add on, vertical (SA014/SA030).

Structural add on, horizontal (SA010/SA030).

Structural add on, retrofit (SA030).

Sustainability data

Country of material origin

United Kingdom

Guidance for specification option:

UK sourced aluminium.

Country of product manufacture

United Kingdom

Material

Aluminium
Glass

Recyclability

Sustainable recycling friendly

Product certifications

BSI Kitemark

BSI Kitemark

Classic and Prestige BS 4873

BSI Kitemark

BSI Kitemark

Classic and Prestige Windows BS 4873/PAS24

Qualicoat approval

Qualicoat approval

Qualicoat Seaside Class Powder Coating

Secured By Design

Secured By Design

Secured By Design

BSI Kitemark

BSI Kitemark

Sheerline ISO 9001:2015

Literature

Sheerline Guarantee

Sheerline Guarantee

Sheerline Specification Guide

Sheerline Specification Guide

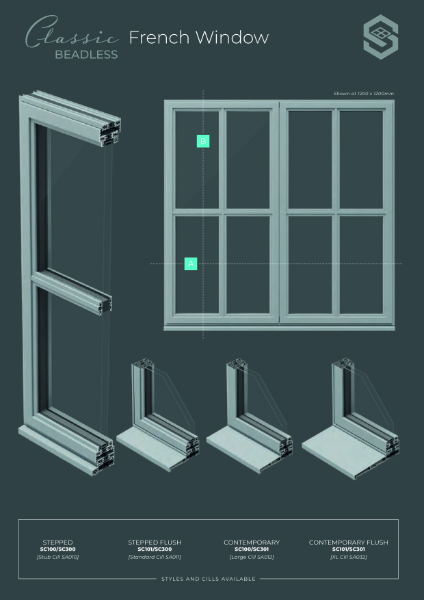

Classic Beadless French Window Data Sheet

Classic Beadless French Window Data Sheet
