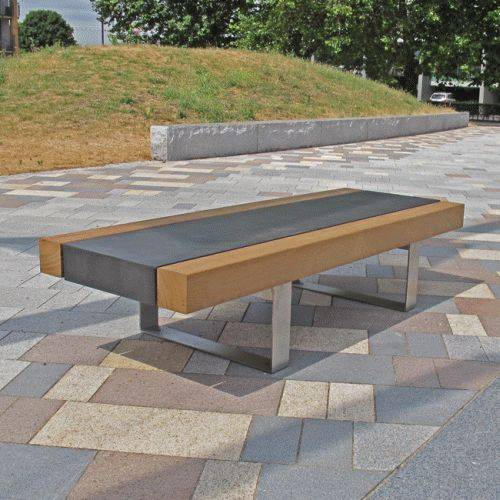

Concrete bench with concrete seating platform and timber edge beams
The Podium range is a ‘mix and match’ selection of seat platforms and supports. The concrete platform is the core component of the range and is available in four styles (two include timber features). The platform is elevated on a choice of three seat support options, which can be fitted at the ends of the platform, or inset. Benches can be used independently or as multiples to form continuous seating runs. All concrete components are reinforced and are available in a wide range of standard colours and finishes. Steel seat supports can be supplied in galvanized, stainless or corten steel.
Uniclass 2015 | |
CAWS | Q50/220 Benches Q50/225 Seats Q50/30 Street furniture |
Product Reference | PDSE1Concrete seat platform with iroko timber edge beams, four person seat, 2000 x 700 x 125 mm (l x w x h); weight: 300 kg. |
Platform | Reinforced concrete, colour/ finishInsert requirements. |
Supports | - |
Type | L70F700 mm wide steel seat support (pair). L70F B700 mm wide steel seat support (pair) complete with iroko backrest (only compatible with PDSE1). L70J700 mm wide steel seat support I-section (individual). L70U700 mm wide steel seat support. L70Z700 mm wide steel seat support Z-section (pair). |
Material | Corten steelStainless steel, grade 1.4301 (304), bright polishedStainless steel, grade 1.4301 (304), satin polishedStainless steel, grade 1.4401 (316), bright polishedStainless steel, grade 1.4401 (316), satin polishedSteel, galvanized finishStandard. |
Anti-skate device | Not requiredRequired |
Standard product features | Platform: Edge: Iroko timber, smooth planed finish. |
