PLSTiE Slimline LST Fan Heater With Wi-Fi

Verified by manufacturer 3 months ago

PLSTi050EWIFI

Consort Claudgen Variant:

Slimline LST fan heater with Wi-Fi

Jump to:
BOS
+44 (0)1646 692172 Website

Application

Wi-Fi enabled room heater.

Description

These heaters connect directly to Wi-Fi and can be controlled either from the integral electronic 7-day timer or via the Consort Connect app, which provides complete control remotely.


It provides the same control features as the digital control panel on the heater and is simple to set up. With the app, users can configure the settings of all connected heaters and view energy usage on the last day, week, month and year.


Features and benefits:

  • 0.5 kW, 0.75 kW, 1 kW or 1.5 kW rating.
  • Can be controlled from digital control panel on the heater or via Consort Connect app on smartphone or tablet.
  • Safety monitoring: Heaters now have a built-in safety monitoring feature. In the unlikely event of a fault, the safety monitoring will help prevent high surface temperatures and the heaters will beep at different intervals to indicate the type of failure. The safety monitoring will identify overheating, fan failure and certain electronic faults.
  • Intelligent fan control: The fan speed of the heater automatically adjusts relative to the room’s current temperature in order to achieve a warm airflow temperature. This eliminates the heater from blowing cold air when initially powered on in a cold room.
  • Incorporates EC motor for improved energy efficiency.
  • Maximum surface temperature of 43°C to comply with NHS Estates Health Guidelines Notes.
  • 7-day timer with 24 heating periods per day.
  • Ability to view energy consumption statistics.
  • Open window tracking and response capability.
  • Copy day function.
  • Four operating modes: Programme, Boost, Setback and Manual.
  • Boost option for up to 4 hours in 15-minutes steps.
  • Comfort heat setting between 15°C to 35°C.
  • Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C.
  • Maintains temperature within 0.7 degrees.
  • Easy operation.
  • Lock function with 4-digit pin code to prevent accidental or purposeful changes to settings.
  • Slimline and clean design.
  • Strengthened grilles to increase durability.
  • Quiet operation.
  • Concealed digital controls on heater.
  • Digital control panel has easy-to-read display and four large control buttons with tactile feedback.
  • Splash proof to IP24 for use in bathrooms and other damp areas.
  • Hinged wall mounting system for easy installation and decorating.
  • Optional control panel locking kit (PLK1).
  • Automatic safety cut-out.
  • Fitted with 1.1 m of supply cable.
  • Finished in white.

General information

Color

White

Finish

Powder-coated

Material

Metal

Shape

Rectangle

Length

93 mm

Manufacturer guidance

Depth

Width

506 mm

640 mm

892 mm

Height

430 mm

Warranty description

One year

Uniclass

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

V90/590 Equipment

Specification data - Room heaters

Room heaters type

Fan.

Output

0.5 kW.

Finish

White.

Accessories

Not required.

Control panel locking kit (PLK1).

Control

Digital control panel.

Guidance for specification option:

On the heater.

Consort Connect app.

Guidance for specification option:

On smartphone or tablet.

Manufacturer guidance

Connected directly to WiFi.

OperatingMode

Programme, boost, setback and manual.

Manufacturer guidance

Four operating modes.

Temperature

15°C to 35°C.

Guidance for specification option:

  • Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C.
  • Maintains temperature within 0.7 degrees.

Manufacturer guidance

Comfort heat setting.

Lock

Four digit pin code.

Ingress protection

IP24.

Guidance for specification option:

Splash proof to IP24 for use in bathrooms and other damp areas.

Power supply cable

1 m.

Height

430 mm.

Depth

93 mm.

Width

506 mm.

Weight

4.5 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Metal

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

This product can be recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Manufacturer guidance

Percentage value will vary depending on the product manufactured and the recycle materials available for use to manufacture the product.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Literature

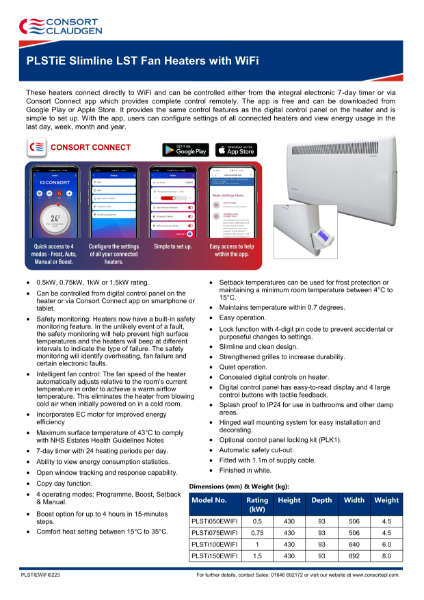

PLSTiE LST Fan heater with Wi-Fi

PLSTiE LST Fan heater with Wi-Fi

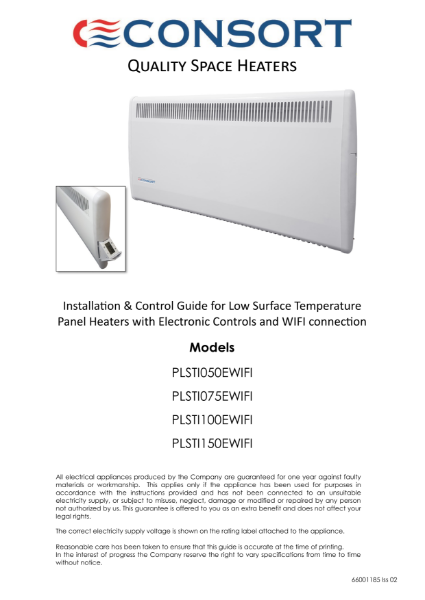

PLSTiE-WiFi user instructions

PLSTiE-WiFi user instructions
