Plinth Course
Cast stone plinth course.
Suitable for commercial and residential projects.
Cast stone plinth courses available in five standard designs Plinth courses can also be produced to individual requirements.

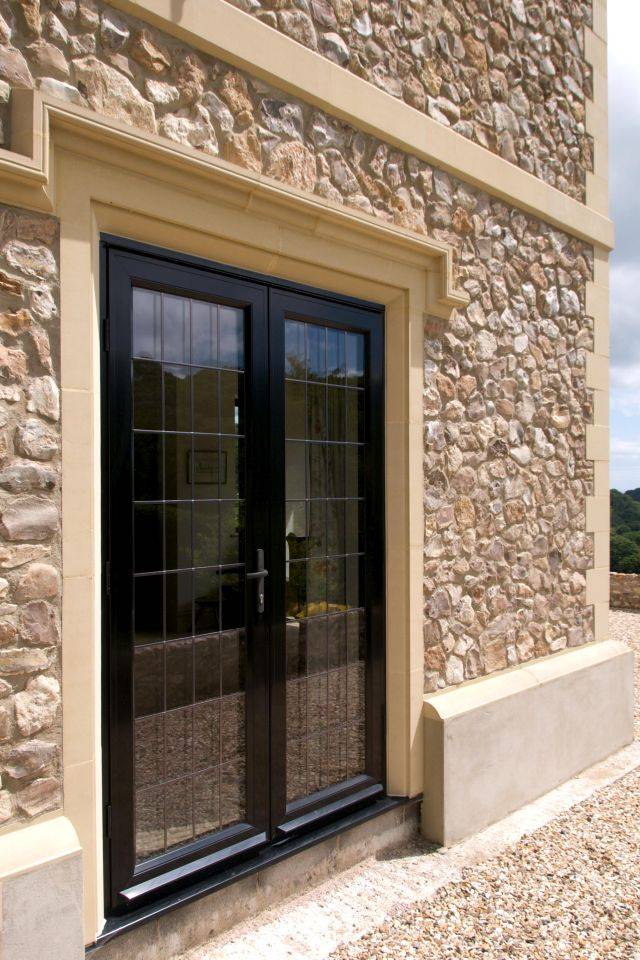

Plinth courses are ideally used for breaking up brickwork in a building. Built into the lowest part of the wall of a building, they can be supplied in a range of sizes and complement many other components, including quoins, string courses and band courses.
Material:
- Haddonstone (Semi-dry cast limestone):
High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.
- TecStone (wet cast limestone):
High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.
Applications:
Suitable for commercial and residential projects.
Material | Haddonstone (semi-dry cast limestone) TecStone (wet cast limestone) |
Uniclass 2015 | |
CAWS | F22/110 Cast stone L37/380 Manufactured stone plinth |
Product Reference | Plinth Course |
Type | Q530Q540Matches the S120G pier base. Q560Q570Q571BespokeConsult manufacturer for details and insert requirements. |
Material | Haddonstone (semi-dry cast limestone)TecStone (wet cast limestone) |
Colour | Bath 02Ivory Limestone ILPortland 01BespokeInsert requirement for colour. |
Accessories | NoneCast-in fixingsInsert requirements for cast fixings. Cast-in lifting socketsInsert requirements for lifting sockets. |
Standard product features | Compressive cube strength after 28 days (minimum):
Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198. Haddonstone:
TecStone:
|
Product Options | Type: - Size:
- Weight:
|
