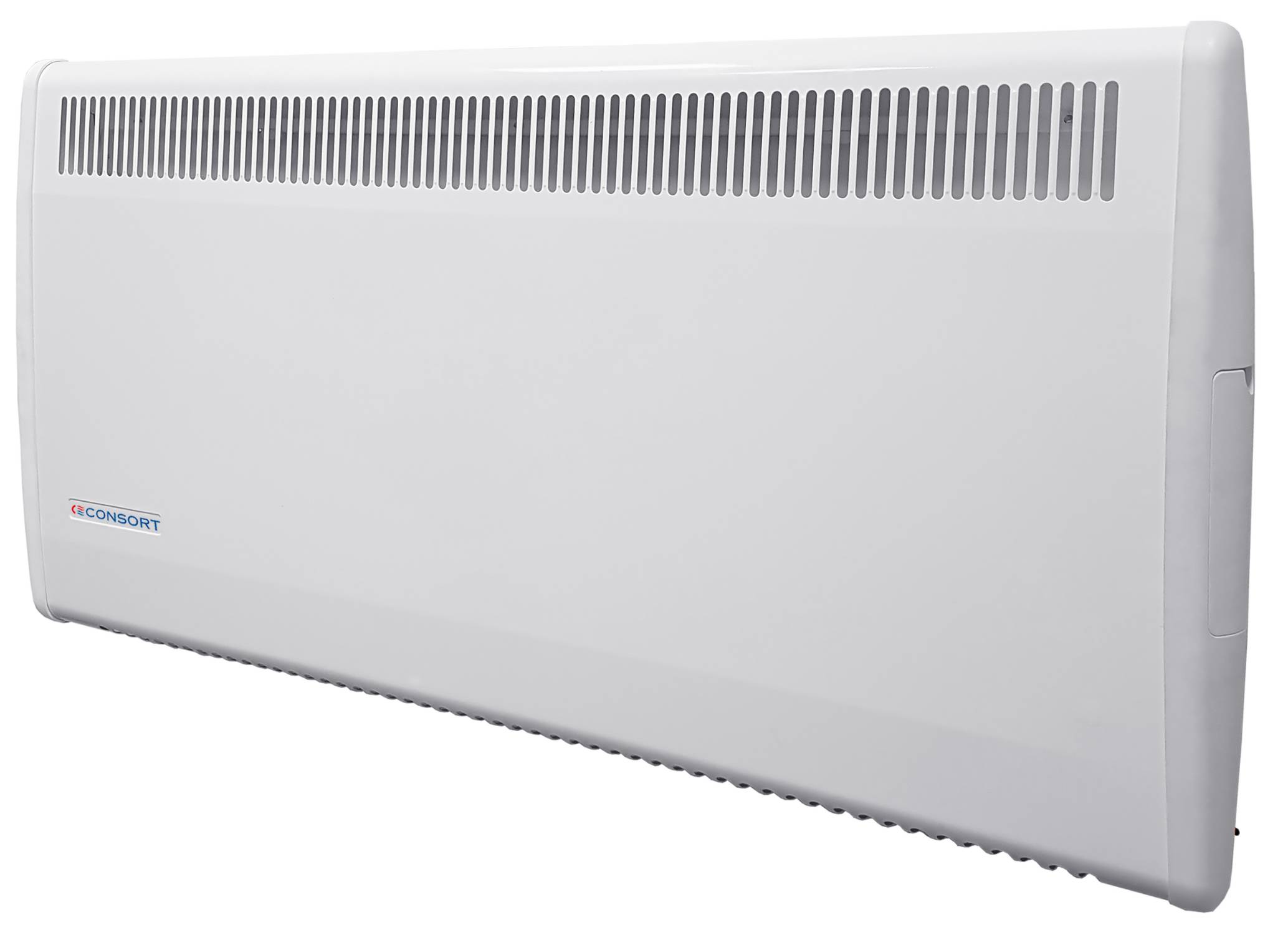

PLE Panel Heaters
Verified by manufacturer 3 months ago
PLE050
PLE050
Panel heaters with electronic seven-day timer.
Application
Suitable for hotels, offices, bedrooms, kitchens, bathrooms and laundries.
Description
These slimline heaters with concealed digital controls have strengthened grilles to increase durability and feature a snap-on bracket on their wall mounting system which allows easy installation and dismounting for cleaning and decorating.
Features and benefits:
- 0.5 kW, 0.75 kW, 1 kW, 1.25 kW, 1.5k W or 2 kW rating.
- Seven-day timer with electronic thermostat.
- Six heating periods per day.
- Cell battery to backup real time clock.
- Open window detection.
- Frost protection setting.
- Can set comfort and setback temperatures.
- Very quiet operation.
- Four large control button with audible and tactile feedback.
- Electronic lock.
- Automatic safety cut-out.
- Splash-proof to IP24.
- Maintains temperature within 0.7 degrees.
- 15-minutes Boost feature.
Include in object:
- PLE050
- PLE075
- PLE100
- PLE125
- PLE150
- PLE200/SS
Note: 'SS' denotes stainless steel model.
General information
Color | White Silver Guidance for specification option: For PLE200SS stainless steel finish. |
Finish | Powder-coated |
Material | Steel Plastic Acrylonitrile butadiene styrene (ABS) Manufacturer guidanceZinc coated steel, UL94 V0 ABS plastic side mouldings. |
Shape | Rectangle |
Length | 93 mm Manufacturer guidanceDepth |
Width | 442 mm 614 mm 720 mm 852 mm |
Height | 430 mm |
Warranty description | One year Guidance for specification option: All products have a one year warranty which is backed by our nationwide customer care service, offering full spares and field support. |
Uniclass |
Product range |
Specification data - Room heaters
Room heaters type | Panel. |
Output | 0.5 KW. |
Finish | Polyester powder coated, stainless steel and white. |
Accessories | Optional control panel locking kit (PLK1). |
Dimensions | 442 x 430 x 93 mm. |
Connections | Electrical connections, 1.8 m, 3 core cable (live, neutral, earth) supplied fitted to each heater. |
Weight | 4.0 kg. |
Clearance height | Minimum clearance of 150 mm from floor. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Plastic Acrylonitrile butadiene styrene (ABS) Manufacturer guidanceZinc coated steel, UL94 V0 ABS plastic side mouldings. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/unit Self declared |
Recyclability | This product can be recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Manufacturer guidancePercentage value will vary depending on the product manufactured and the recycle materials available for use to manufacture the product. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 3 |
 Revit | Revit 2017 | 3 |
Literature
PLE Panel Heater data sheet

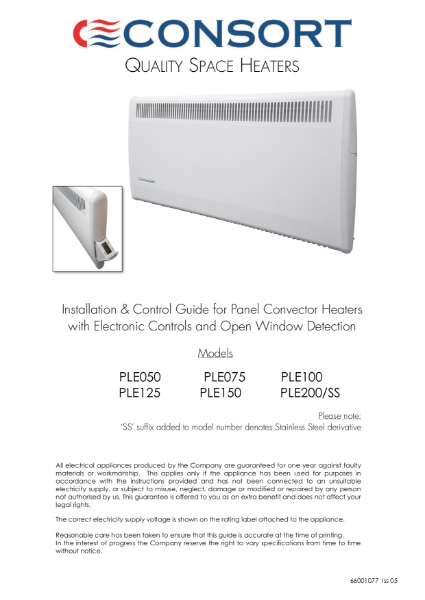

PLE Panel Heater user instructions
