Plaza Paving + Flags - Premium granite water-etched paving

Verified by manufacturer 5 months ago

Flagstones

AG Variant:

A range of small to large element paving with a premium quality granite aggregate washed finish

Jump to:
+44 (0) 28 8778 8112 Website

Application

  • Suitable for all applications and loading conditions.
  • Appropriate for creating hard landscaping designs in large urban schemes.

Description

Paving manufactured from granite and quartz aggregates using a water-based process.


Features and benefits:

  • Available in a range of depths, sizes and colours.
  • Also available in Plaza Lineal (120 mm thickness in mixed pack of four sizes), Plaza Large Format (120 mm thickness in 1000 x 400 mm size) and Xflo Plaza Permeable Paving (in 60 mm and 80 mm thickness).
  • State-of-the-art factory controlled vapour curing significantly reduces this naturally occurring chemical reaction.
  • BES 6001 Responsible Sourcing of Concrete Products (Rating: Very Good).
  • Energy Use 100% renewable.
  • Water Used 90% recycled water.
  • Recyclable 100% of this product can be recycled.
  • Manufacturing Produced in the UK using responsibly sourced materials.
  • Non-Primary Materials 52 – 60% (surface layer).
  • Waste Wood + Plastic 100% recycled.
  • BREEAM 50 - 60mm: A Rating – according to the Green Guide to Specification.
  • 4th edition 2009. A+ Rating can be achieved when used in conjunction with a prepared recycled sub-base.
  • 80mm: B Rating – according to the Green Guide to Specification 4th.
  • edition 2009. A Rating can be achieved when used in conjunction with a prepared recycled sub-base.

General information

Color

Grey

Yellow

Green

Silver

Finish

Textured

Water-etched, lightly textured.

Material

Granite

Shape

Rectangle

Square

Length

1000 mm

600 mm

500 mm

425 mm

400 mm

Show more

Width

400 mm

200 mm

170 mm

150 mm

135 mm

Show more

Height

120 mm

80 mm

60 mm

Uniclass

Pr_25_93_60_16 Concrete flagsPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/113 Conventional concrete block paving overlay

Q25/31 Concrete flag paving system

Q25/315 Concrete flags

Specification data - Concrete flags

Standard

CE marking:

CE marked; Certificate 04/1-7-13, attestation Level 4 CPR (2011) Annex V.

To BS EN 1339, flagstones.

Physical properties

-

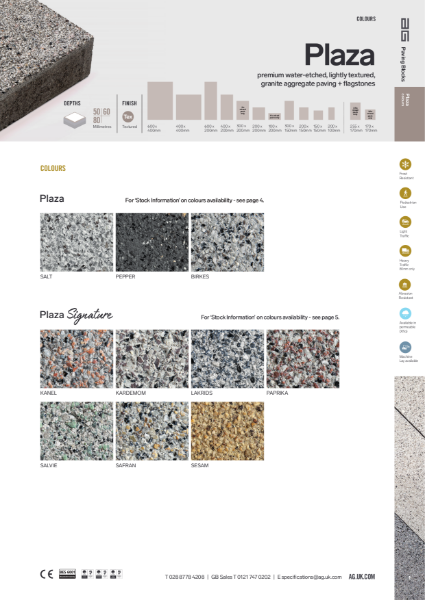

Colour

Birkes (Graphite).

Kanel (Orange/ Brown).

Kardemom (Purple/ Brown).

Lakrids (Grey/ Slate).

Paprika (Rose).

Pepper (Black).

Safran (Yellow/ Orange).

Salt (Silver).

Salvie (Green).

Sesam (Sandstone)

Finish

Water-etched, lightly textured.

Profile

-

Flag type

Regular plan form.

Dimensions and associated tolerances

-

Nominal sizes

50 x 400 x 400 mm.

50 x 600 x 400 mm.

60 x 150 x 150 mm.

60 x 200 x 100 mm.

60 x 200 x 150 mm.

60 x 300 x 150 mm.

60 x mixed size.

60 x mixed size (300 x 200 mm/ 200 x 200 mm/ 100 x 200 mm).

80 x 150 x 150 mm.

80 x 200 x 100 mm.

80 x 200 x 150 mm.

80 x 200 x 200 mm.

80 x 400 x 200 mm.

80 x 400 x 400 mm.

80 x 600 x 200 mm.

80 x 600 x 400 mm.

120 x 1000 x 400 mm.

Plaza Large Format.

120 x mixed size.

Plaza Lineal, 120 x mixed size (500 x 135 mm/ 425 x 135 mm/ 325 x 135 mm/ 250 x 135 mm).

60 x 200 x 100 mm.

Xflo.

80 x 200 x 100 mm.

Xflo.

80 x mixed size.

Xflo, 80 x mixed size (255 x 170 mm/ 170 x 170 mm).

Skid resistance

(USRV) >75 low potential for slip.

Bending strength

Class 3.

>5 Mpa. This pressure applies to all flagstones sizes and depths. (Flagstones) For specific force performance on a given size or depth please contact our Technical Specification Department.

Jointing Sand

Buff.

For Sandstone colour flags.

Silver Granite.

For Silver/ Slate colour flags.

Other requirements

Not required.

TerraKerb (reconstituted granite kerbs).

Tactile flags.

Installation

Installed to BS 7533.

TensileStrength

Not applicable.

Abrasion resistance

To BS 1339, Class 4.

Frost protection

To BS 1339, Class 3.

SurfaceLayer

5 mm.

Durable and hard wearing with a minimum surface layer of 5 mm.

Cement

Minimum cement content.

380 kg/m³.

Granite content

≥90%.

Not less than 90% natural granite and quartz aggregate in surface layer.

Sustainability data

Country of material origin

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

Guidance:

  • Carbon footprint: AG have a new state-of-the-art washing plant which enables AG to produce paving from 100% recycled waste aggregate.
  • BREEAM rating: 60 mm: A Rating – according to the Green Guide to Specification 4th edition 2009. A+ Rating can be achieved when used in conjunction with a prepared recycled sub-base. 80 mm: B Rating – according to the Green Guide to Specification 4th edition 2009. A Rating can be achieved when used in conjunction with a prepared, recycled sub-base.


-

Recyclability

100%

  • Energy use: 100% renewable energy.
  • Water used: 90% recycled water.
  • Recyclability: 100% of this product can be recycled.
  • Manufacturing location: Produced in the UK using responsibly sourced materials.
  • Waste wood and plastic: 100% recycled.

Case studies

Combilift, Co. Monaghan

Combilift, Co. Monaghan

DNRC Stanford Hall, Nottinghamshire

DNRC Stanford Hall, Nottinghamshire

AECC Arena, Aberdeen

AECC Arena, Aberdeen

Dublin City University, Ballymun, County Dublin

Dublin City University, Ballymun, County Dublin

Sandiefield Development, Crown Street, Glasgow

Sandiefield Development, Crown Street, Glasgow
