Description

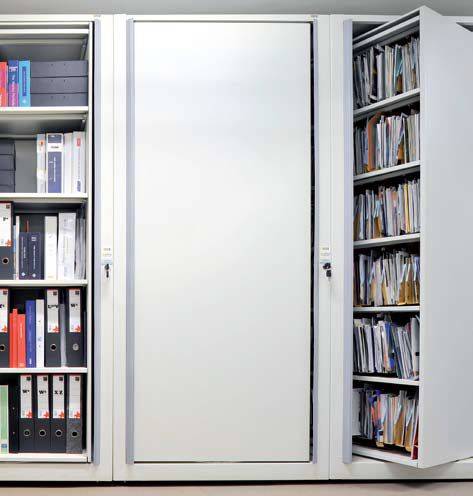

A fast and easy access rotary storage centre which can be rotated in a clockwise or anti-clockwise direction by grasping the full height hand hold and pulling the unit towards the operator. This feature eliminates the reluctance felt by operators when asked to push units open into a perceived hand trap. The spring loaded indent roller means that a positive location is made at each of the 90° stations.

The indent engages a recess automatically and does not have to surmount an indent bridge, as with some systems, thereby making the rest positions both direct and positive. This indent pressure is adjustable, during or after installation. This is an important feature as different bay loads need different pressure at the indent.

The units can be supplied in a wide range of sizes, and due to the design of the system, extension bays can be added to initial bays on either side should units need to be rearranged and relocated. Can easily be converted to an individual bay by the addition of end panels.

The interior of the storage centre incorporates a full height backsheet, together with the required quantity of storage levels. Each shelf is vertically adjustable at a pitch of 12.5 mm to give infinite accommodation of any media to be stored. Shelf adjustment is extremely simple and quick as the shelves rest on independent clips which are contained within the flange of the shelf unit.

No cantilever arms are used, nor are any screws used in locating the shelves. Operators simply lift the shelf, re-position the clips to the new location and drop in the shelf. This task can be carried out by any member of staff. No tools are needed.

The locking system on the standard unit can be locked in both the closed and the open position. Half of the stored material is fully accessible to staff when in the locked open position. The remaining 50% of stored material is available only to supervisory staff and accessed with the use of the key.

Manufactured from high quality steel and is provided with a life time guarantee on the rotation unit.

General information
Size

Insert requirements or drawing reference.

Uniclass 2015
Office storage units (Pr_40_30_78_57)Primary
Specification data - Office storage units
Product Reference

Pirouette

Size

Insert requirements or drawing reference.

Accessories

Dividers

Lockable compartments

Lockable drawer system

Lockers

Pull out file cradles

Pull out reference shelves

Single sided dust cover panel

Sortation trays

Suspended lateral file shelves

Wall closure panel

Product Options

Size:

Various options available including single and double units with four, five, six, seven or eight elevation combinations. Consult manufacturer for details and insert requirements.
