Pilkington OptiView™ Ultra Protect Anti-Reflective Glass

Verified by manufacturer 1 month ago

Pilkington United Kingdom Limited Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Offline coated laminated anti-reflective glass on low-iron (Pilkington Optiwhite™) substrate with a total light reflectance less than 1%.

Jump to:
Website

Application

Suitable applications include:

  • Retail.
  • Shopfronts.
  • Showrooms.
  • Museums.
  • Zoos.
  • Display cases.
  • Façades.
  • Sports stadia.

Description

Pilkington OptiView™ Ultra range consists of a sputtered off-line coated anti-reflective (AR) products based on a Pilkington Optiwhite™ low-iron substrate. Different versions of products are available such as monolithic, laminated, toughenable, either coated on one or both sides, including coatings with thermal insulation properties.


Pilkington OptiView™ Ultra Protect is a laminated glass with anti-reflective coatings on surfaces #1 and #4 (both outer surfaces of the laminated glass), which helps to reduce the total visible light reflection to below 1%.


Features and benefits:

  • Anti-reflective coating on both surfaces (#1 + #4).
  • Minimises the natural reflectance of glass.
  • Achieves an outside reflectance as low as just one percent (depending on the type and structure).
  • Offers views from both inside and out that are clear, unobscured and virtually reflection free.
  • Offers the crucial benefit of both transparency and neutrality.

General information

Color

Clear

Finish

Coated

Material

Glass

Shape

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

8.8 mm

Warranty description

-

Manufacturer guidance

Dependant on unit manufacture.

Uniclass

Pr_25_71_33_46 Laminated glass sheetsPrimary

Specification data - Laminated glass sheets

General requirements

Glass generally.

Laminate glass type

Safety.

Thickness

8.8 mm.

Outer leaf

Thermally toughened glass.

Inner leaf

Thermally toughened glass.

Sealing

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Body colour

Clear.

Coating

-

Type

Anti-reflection.

Design

Solid.

Colour or effect

Clear.

Performance requirements

-

Light

Transmittance: 98%; Reflectance: 1% (outside and inside).

Solar control

84%.

Manufacturer guidance

Total solar heat transmittance, g-value.

Thermal transmittance (U-Value)

5.5 W/m²K.

Cavity

90% argon.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Glass

Manufacturing plant location

Recyclability

Glass panes can be re-melted on float lines following correct separation from glass unit

Manufacturer guidance

Recyclable following correct

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Expected Life

Lifetime

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 - Quality Management System

Literature

Pilkington OptiView™ Range

Pilkington OptiView™ Range

Case studies

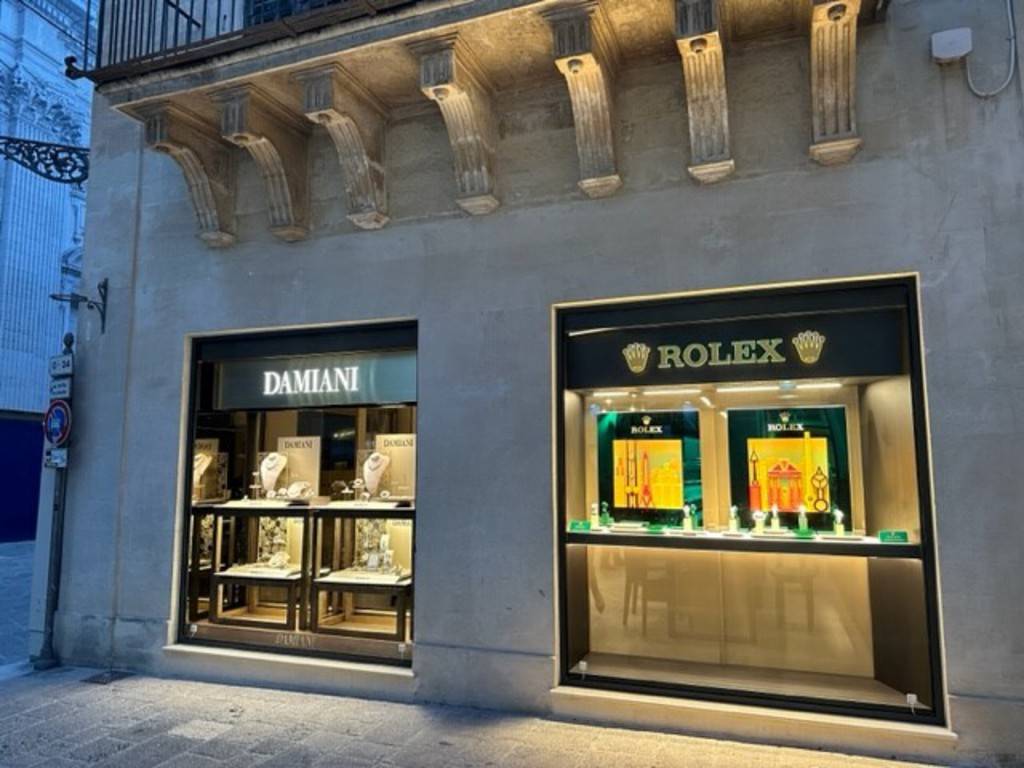

Jewellery Shop, Lecce, Italy
