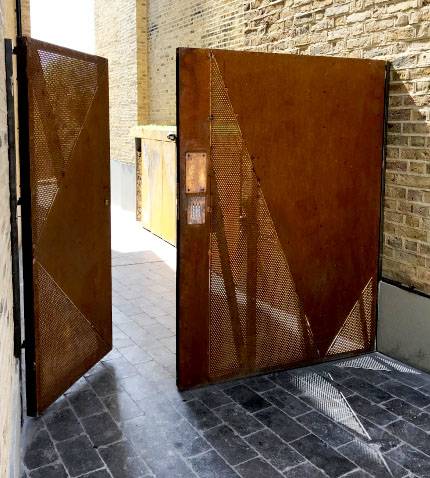

Picture-Perf Perforated Fencing and Gates
Verified by manufacturer 4 months ago
Height 2000 mm
Height 2000 mm

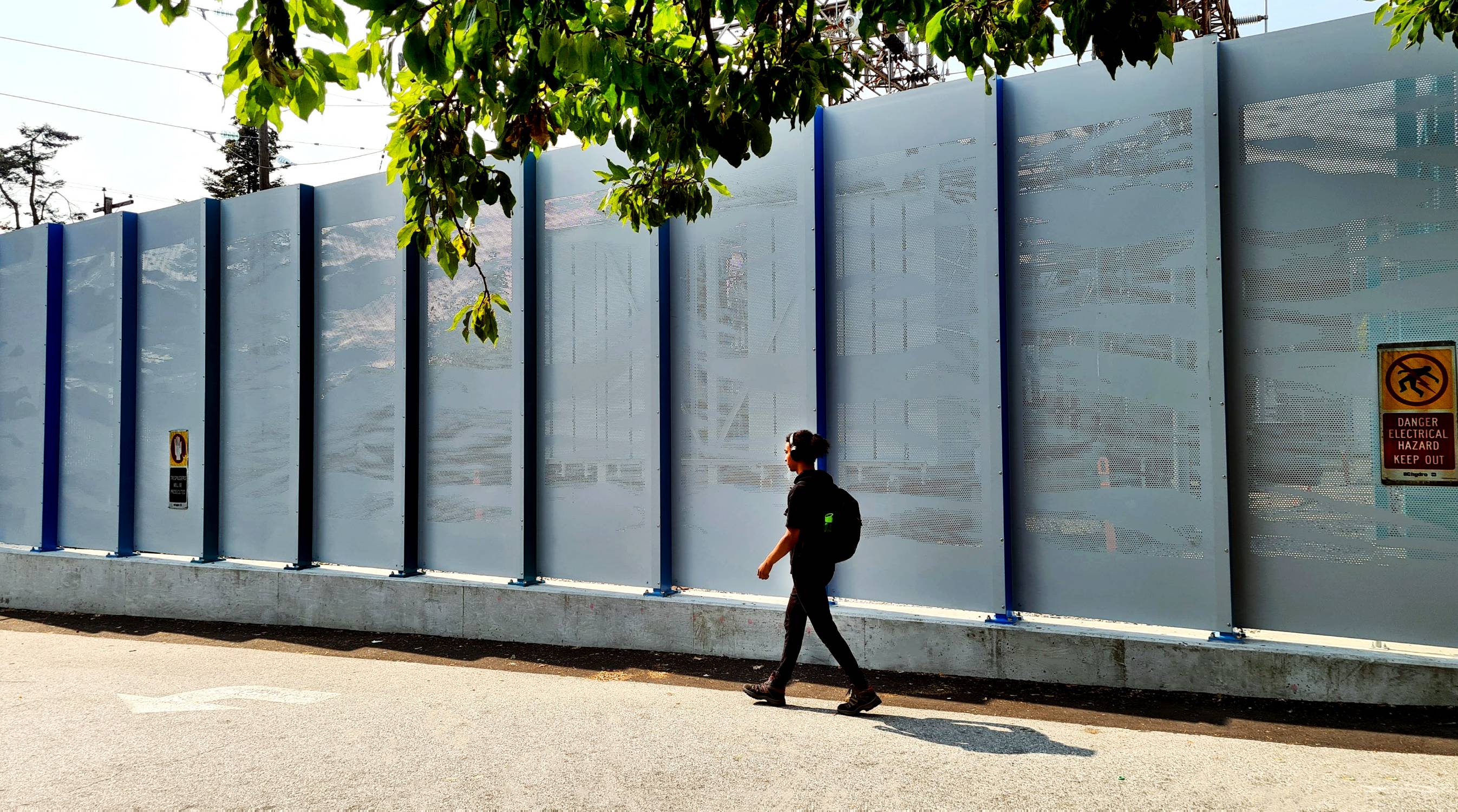

Picture-Perf™ Fencing and Gates by Zaun in collaboration with Graepals manufactured from either aluminium or stainless steel.
Application
Picture-Perf Fencing and Gates is suitable for use in playgrounds, parks and schools where laser cut fencing and gates present a finger trap and sharps risk.
It can also be used as hero panels to include in existing fencing to create a hero panel to highlight local areas or interests.
Description
Manufactured from either aluminium or stainless steel (other materials are available such as Corten, please contact manufacturer for further information) at heights of 2.0, 2.4, 3.0 and 4.0 m it offers clients and specifiers increased safety and visual impact compared to standard laser-cut fencing systems due to perforation process.
With perforation no larger than 8 mm across the whole system it prevents any areas for finger traps and with the innovative fixing system, the appearance of the posts removes any gaps between panels and posts.
Features and benefits:
- Available in four heights (2.0, 2.4, 3.0 and 4.0 m).
- Available in aluminium or stainless steel.
- Other materials are available on request such as Corten.
- Two perforations are available in either Picture-Perf™ or Pattern-Perf™.
General information
Color | Other |
Finish | Powder-coated Natural |
Material | Stainless steel Aluminium Cor-Ten |
Shape | Rectangle Square |
Width | 1500 mm |
Height | 2000 mm 2400 mm 3000 mm 4000 mm |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Post and panel fencing systems
Posts | Aluminium alloy posts.Stainless steel posts. |
Post foundations | Guidance for specification option: Consult manufacturer and insert requirements. |
Panels | Aluminium perforated panels.Stainless steel perforated panels.Other perforated panels.Guidance for specification option: Other materials are available on request such as Corten. Consult manufacturer and insert requirements. |
System accessories | Not required.Gate.Clamp-bars.Slide bolts. |
Surface finish | Natural. Powder-coated to BS 1722-16. |
Height | 2000 mm. |
Panel size | 1500 mm. |
Posts | 120 x 60 x 3 mm. |
Edge | Flush top edge. |
Post centres | 1453 mm. |
Perforation | Picture-Perf™. Pattern-Perf™. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | 100% recyclable at end of life |
Literature

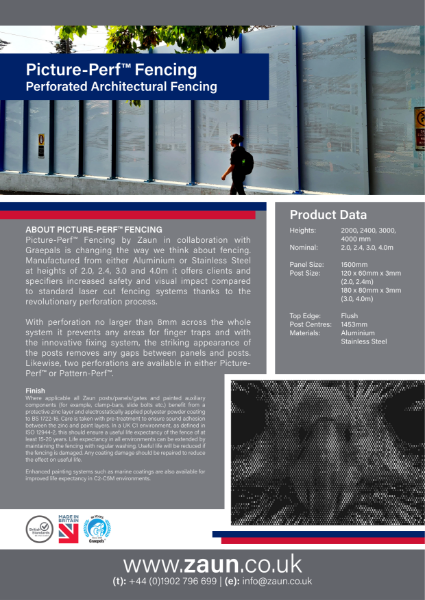

Picture-Perf Fencing and Gates
