Philips Emergency Standalone - Emergency LED
Verified by manufacturer 3 days ago

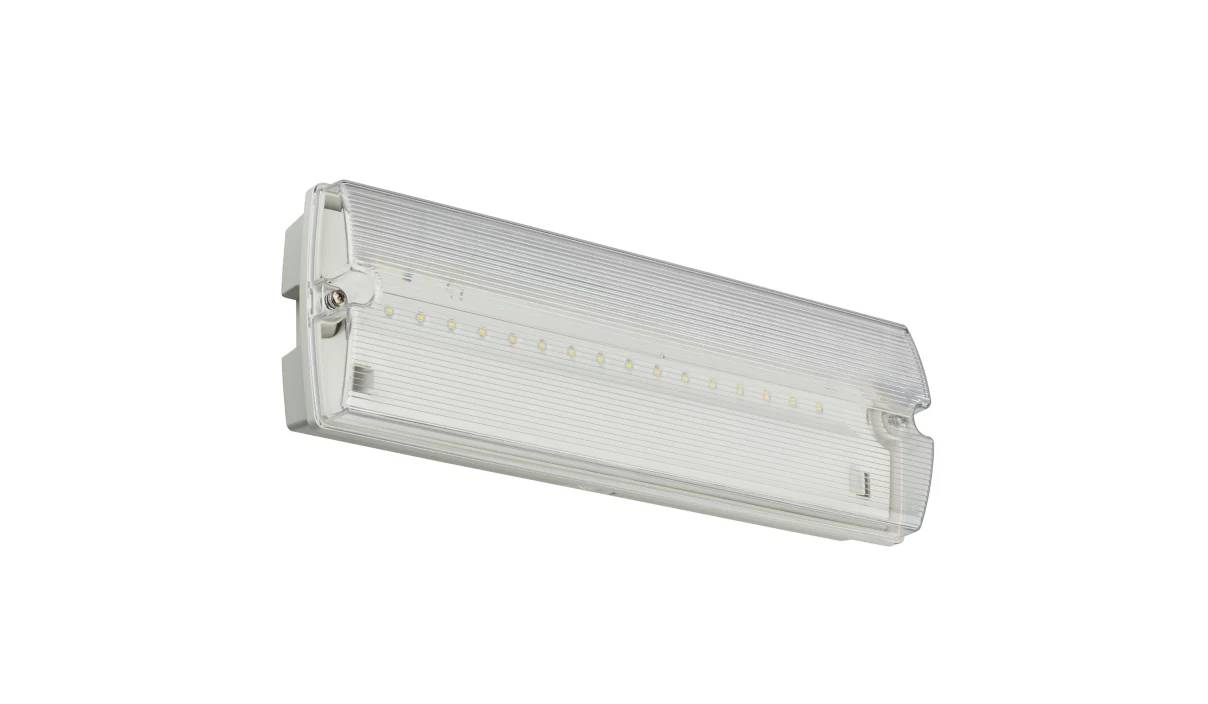

Bulkhead 150 lm IP65 3 hours manual-test -912401483510
Bulkhead 150 lm IP65 3 hours manual-test -912401483510
Range of emergency LEDs, including recessed, surface-mounted and twin spots, and bulkheads.
Application
Suitable applications include:
- Exit and emergency;
- Offices;
- Retail;
- Hospitality;
- Manufacturing.
Description
Safety is important for building owners and therefore having proper emergency lighting in place is a major concern for them. These emergency luminaires offer an easy solution for standalone emergency lighting, that is fully compliant with European regulations. The lithium battery (LiFePO4) has many advantages over nickel based products, as it has a longer lifetime, better discharge behaviour, is produced in a more welfare friendly way and can be recycled.
Spotlights include two interchangeable lenses are supplied with the product, to adjust the beam angle to the application.
Features and benefits:
- Meets European standards for emergency lighting luminaires.
- Lithium based battery type provides longer lifetime, low self discharge and high temperature tolerance.
- Welfare friendly solution versus nickel-based products as the battery can be recycled.
- Three hours emergency lighting.
- Manual and self-test options.
- Maintained/ non-maintained emergency lighting.
- EU RoHS compliant.
- CE marked.
General information
Color | White Green |
Material | Polycarbonate |
Shape | Rectangle Circle |
Length | 300 mm 321 mm 351 mm |
Width | 50 mm 111 mm 155 mm 167 mm 288 mm |
Height | 27 mm 46 mm 63 mm 69 mm 83 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires |
SKU Code | 912401483505, 912401483504, 912401483508, 912401483507, 912401483510, 912401483509, 912401483512, 912401483511, 912401483513 |
Specification data - Emergency luminaires
Luminaire description | Emergency Bulkhead, Emergency bulkhead, 4 W, 4 W, 351 x 111 mm; H63 mm, 175 lm, 6500 K, IP65, ELB3h. |
Classification | |
Electric shock | Class II. |
Ingress protection (minimum) | IP65. Guidance for specification option: Dust penetration-protected, jet-proof. |
Duration of emergency mode (minimum) | 180. |
Rated maximum ambient temperature | +45°C. Guidance for specification option: +5 to +45°C. |
Impact protection (minimum) | IK06. Manufacturer guidance1 J. |
Controlgear position | Integral within luminaire. |
Supply circuit conductor connections | 2 push-in connectors, 3-pole. |
Nominal voltage | 220–240 V. |
Luminaire power factor | Correct to minimum 0.4 lagging. |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | 50 lm/W. |
Colour temperature | 6500 K. |
Colour rendering index (Ra) | 80. |
Beam angle | 120°. |
Non-LED luminaires | |
Lamp properties | |
Initial lumens (minimum) | 150 lm. |
Graphical symbol format | European format sign, running man, arrow right. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Cable | Not applicable. |
Dimensions | 351 x 111 x 63 mm. |
Inrush current | 4.96 A. |
Housing | Polycarbonate. |
Driver | Manufacturer's standard. |
Optics | Polycarbonate, ribbed lens. Guidance for specification option: With UV-stabilized polycarbonate cover. |
Power consumption | 4 W. |
Frequency | 50 Hz. |
Area | 3 m². Manufacturer guidanceEffective projected area. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | China |
Material | Polycarbonate |
Recyclability | Battery can be recycled |
Expected Life | Lifetime |
Literature
Emergency Spot
Emergency Surface Mounted Downlight
Emergency Twin Spot
Emergency Bulkhead
