Summary
Range of emergency LEDs, including recessed, surface-mounted and twin spots, and bulkheads.
Color
White, Green
-
-
Material
Polycarbonate
-
-
Shape
Rectangle, Circle
-
-
Length
300 mm, 321 mm, 351 mm
-
-
Width
50 mm, 111 mm, 155 mm, 167 mm, 288 mm
-
-
Height
27 mm, 46 mm, 63 mm, 69 mm, 83 mm
-
-
Warranty description
Five year
-
-
Specification
Luminaire description

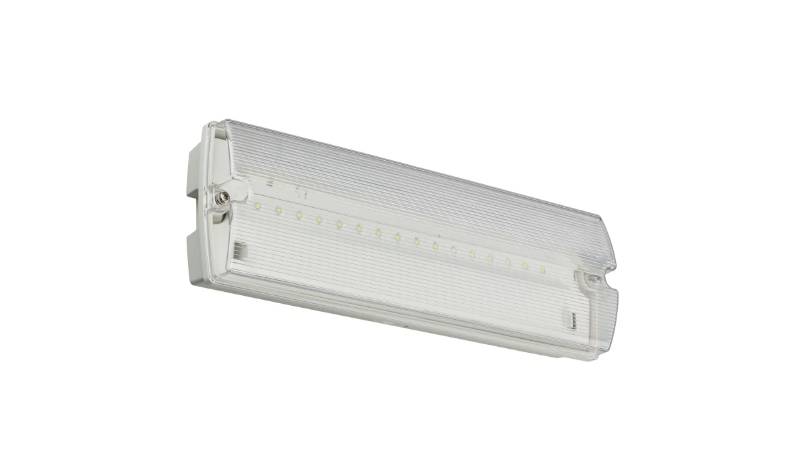

Emergency Bulkhead, Emergency bulkhead, 4 W, 4 W, 351 x 111 mm; H63 mm, 175 lm, 6500 K, IP65, ELB3h.
-
-
Classification
-
-
-
Electric shock
Class II.
-
-
Ingress protection (minimum)
IP65.
-
-
Duration of emergency mode (minimum)
180.
-
-
Rated maximum ambient temperature
+45°C.
-
-
Impact protection (minimum)
IK06.
-
-
Controlgear position
Integral within luminaire.
-
-
Supply circuit conductor connections
2 push-in connectors, 3-pole.
-
-
Nominal voltage
220–240 V.
-
-
Luminaire power factor
Correct to minimum 0.4 lagging.
-
-
LED luminaires
-
-
-
Initial LED luminaire efficacy (minimum)
50 lm/W.
-
-
Colour temperature
6500 K.
-
-
Colour rendering index (Ra)
80.
-
-
Beam angle
120°.
-
-
Non-LED luminaires
-
-
-
Lamp properties
-
-
-
Initial lumens (minimum)
150 lm.
-
-
Graphical symbol format
European format sign, running man, arrow right.
-
-
Additional properties
Cable
Not applicable.
-
-
Dimensions
351 x 111 x 63 mm.
-
-
Inrush current
4.96 A.
-
-
Housing
Polycarbonate.
-
-
Driver
Manufacturer's standard.
-
-
Optics
Polycarbonate, ribbed lens.
-
-
Power consumption
4 W.
-
-
Frequency
50 Hz.
-
-
Area
3 m².
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
China
-
-
Material
Polycarbonate
-
-
Recyclability
Battery can be recycled
-
-
Expected Life
Lifetime
-
-
