PFEIFER LCON Fixing Bracket System

Verified by manufacturer 21 days ago

PFEIFER Connection Bracket LCON1

J & P Building Systems Variant:

Concrete connection brackets.

Jump to:
+44 (0)1844 215 200 Website

Application

For load bearing connection of precast units.

Description

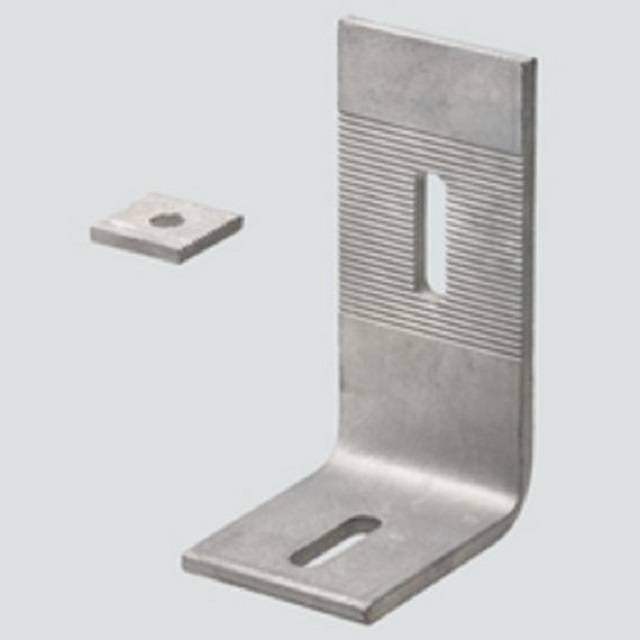

The PFEIFER Connection Bracket LCON is available in four sizes and used in combination with the PFEIFER Toothed Washer ZS for the restraint of precast concrete units. Manufactured from zinc plated steel, they can be used for both temporary and permanent connections. Offering easy adjustment and good load capacities they are connected to the concrete using JORDAHL anchor channels or drilled bolts.


PFEIFER Connection Bracket LCON VS® is a special version suitable as a restraint bracket for precast wall joints where PFEIFER VS®-ISI rails are installed. The angle of the bracket enables the anchoring points to be located away from the rail area.


Features and benefits:

  • Efficient.
  • Safe.
  • Cost effective.
  • Reusable.

General information

Color

Grey

Finish

Zinc plated

Material

Steel

Stainless steel

Shape

Other

Length

170 mm

180 mm

195 mm

Width

60 mm

80 mm

Height

110 mm

Uniclass

Pr_20_29_03_31 Framing anchorsPrimary

CAWS

E60/340 Lateral restraint straps

Specification data - Framing anchors

Material

Galvanized steel.

Thickness

6 mm.

Dimensions

170 x 110 x 60 mm.

Sustainability data

Country of product manufacture

Germany
