PFC Corofil RSB120 Open State Cavity Barrier

Application

Fixed within horizontal cavities 51–300 mm wide to allow a ventilation and drainage gap.

Description

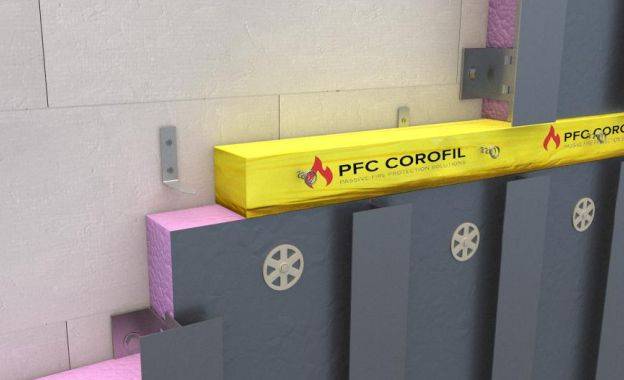

Open state cavity barrier used to prevent the spread of fire for up to 120 minutes. It is fixed back to the substrate, forming the ventilation gap between the barrier and inside face of the outer leaf of the wall. Pigtail screws are then inserted into the outer face to maintain the air gap once the outer leaf is installed.

For smaller cavities of up to 110 mm wide, it can be directly fixed back to the inner substrate. For cavities ranging from 111–300 mm wide, the barrier is supported to the inner substrate using multipurpose brackets.

Features and benefits:

  • It expands rapidly to form a fire barrier between the inner substrate and back of the outer leaf.
  • Suitable for cavities from 51–300 mm wide using masonry/ concrete substrates and outer leaf.
  • Suitable for continuous air gap of up to 25 mm.

Applications:

Fixed within horizontal cavities 51–300 mm wide to allow a ventilation and drainage gap.

General information

Material

TENMAT FF102 4 x 75 mm intumescent strip with a rock mineral fibre backer enclosed in a polythene shrink wrap

Uniclass 2015

Pr_25_80_80_44 Intumescent sleeved mineral wool cavity fire barriersPrimary

CAWS

P10/40 Insulation fitted betweenor to the face ofstuds

P12/360 Mineral wool rigid batts

P12/40 Mineral wool rigid batts

Product range

Cavity Barriers

Specification data - Intumescent sleeved mineral wool cavity fire barriers

Product Reference

PFC Corofil RSB120 Open State Cavity Barrier

Cavity size

Insert requirement, available to suit 51–300 mm widths.

Standard product features

Material:

TENMAT FF102 4 x 75 mm intumescent strip with a rock mineral fibre backer enclosed in a polythene shrink wrap.

Fire rating (to BS EN 1363-1: 2012):

Up to two-hours (120 minutes) dependent on cavity size and wall construction, consult manufacturer's literature for more information.
