PFC Corofil Open State Clip COSC
Verified by manufacturer 1 month ago
PFC Corofil Open State Clip COSC is a fire rated intumescent solution designed to react in a fire situation to seal within and in front of masonry support brackets.
Application
PFC Corofil Open State Clip COSC is designed for use in combination with PFC Corofil Open State Barrier COSB 44 (1026) and provides an effective cavity fire barrier solution to ensure a continuous cavity barrier line around a masonry support system that also maintains drainage in normal conditions.
Description

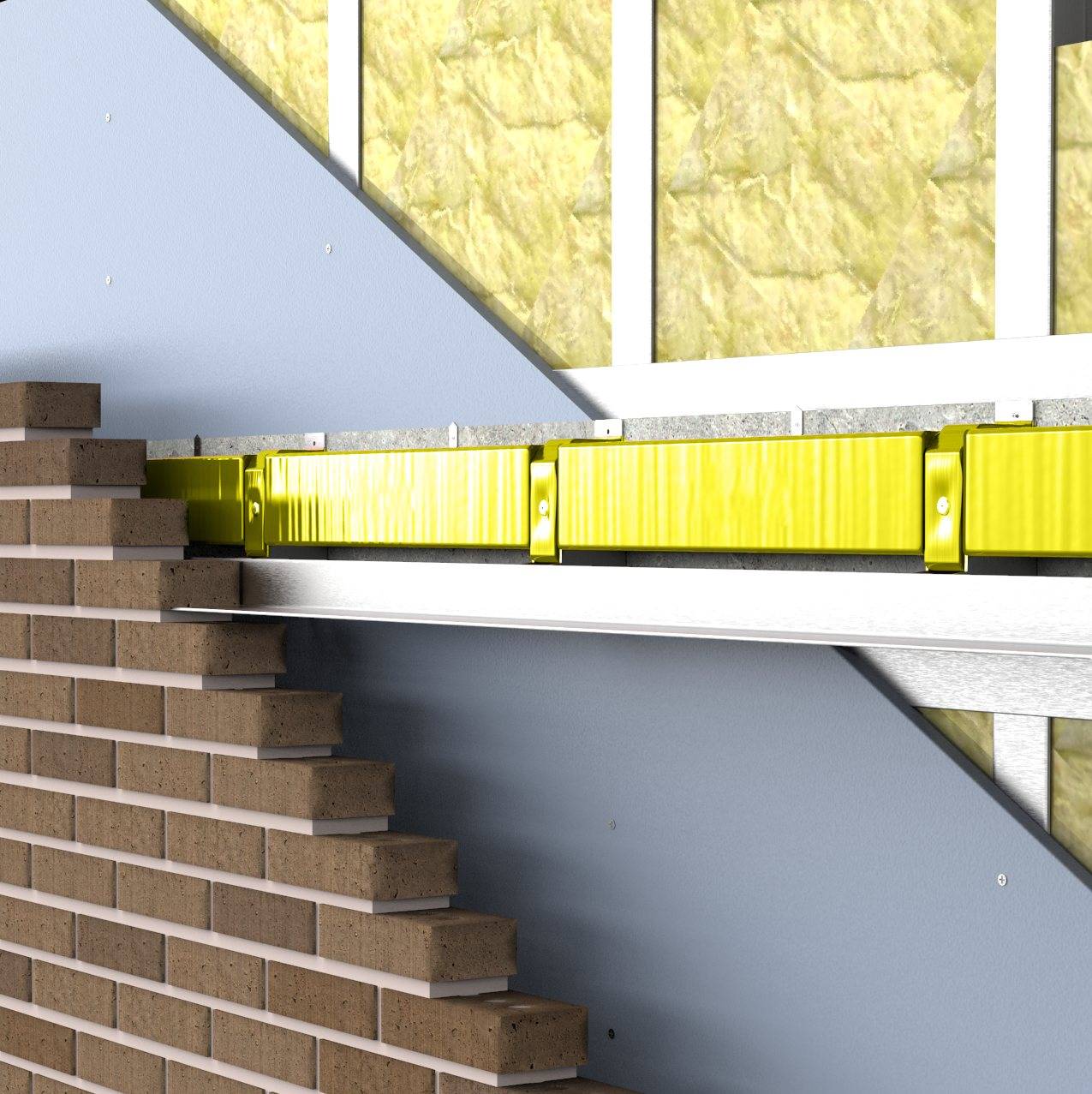

PFC Corofil Open State Clip COSC is a 4mm thick intumescent strip riveted to a stainless steel plate shaped to fit within the opening of a Masonry Support Bracket. Combined with the PFC Corofil Open State Cavity Barrier COSB 44 (1026) installed between the brackets the two products create a horizontal open state cavity barrier system. The intumescent strip will react in a fire situation to close off the air gap between the barrier and the back of the external substrate.
Features and benefits:
• Tested to the general principles of EN 1363-1 and in accordance with ASFP TGD 19
• Provides fire resistance performance of up to 120 minutes integrity and insulation
• Suitable for cavity widths between 112.5mm and 287mm
General information
Color | Yellow |
Material | Stainless steel Intumescent Polythene |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F30/18 Cavity closers F30/180 Cavity closers P10/435 Ventilated cavity barriers P10/77 Ventilated cavity barriers |
Product range |
Specification data - Stainless steel cavity barrier brackets
Thickness | 4 mm intumescent strip. |
Cavity sizeSuitable for cavity widths between 112.5 mm and 287 mm. Insert requirements. | - |
Cavity barriers | PFC Corofil Open State Cavity Barrier COSB 44 (1026) - specified seperately. |
Fire insulation | 120 minutes to EN 1363-1 and TGD19. Refer to manufacturer's literature for requirements. |
Fire integrity | 120 minutes to EN 1363-1 and TGD19. Refer to manufacturer's literature for requirements. |
