Application

Suitable for residential developments both new build or refurbishment schemes.

Description

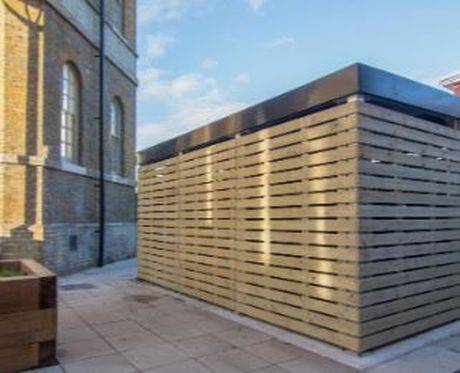

Modular cycle store unit available in standard unit widths of 2400 mm and 4800 mm, with numerous layouts and access configurations to suit the specific cycle storage requirement. The 2400 mm width models are configured with access for a single row of cycle stands from a side aisle door position, while the 4800 mm width has double rows of racks, accessed from the central aisle for greater capacity. As a standard configuration, PCH is fitted with either hoop type or semi vertical racks, while custom requirements including double stacking systems can be accommodated - consult manufacturer for further details.

Features and benefits:

  • Manufactured from highly durable steel framed modules.
  • 20 standard unit dimensions accommodate from 6–54 cycles with a wide range of configuration options and custom builds.
  • WILD® greenroof system option available.
  • An integrated e-cycle charging system can be specified, using either mains or renewable energy sources.
  • A range of cladding and finish options are available (including vandal resistant steel and hardwood slatted panels) to suit project requirements.
  • Cleanly styled to complement a scheme with panel frame design allowing flexibility in cladding density for the maintenance of clear lines of sight.
  • The door panel module accommodates multiple access configurations within the unit. The lock case can be fitted with a choice of key managed, mechanical or powered keypad access options.
  • CE marked.

Fire performance:

  • Fire retardant options for tongue and groove v-jointed (TGV) and sheet type cladding have a fireboard MgO internal liner with either treated timber or coated steel panel outer to provide Euro-class A1, UK class 0 reaction to fire. The panels are manufactured from materials of limited combustibility throughout to provide 30 minutes' fire resistance to BS 476.
  • Where fire retardant properties are required for an open-spaced cladding type, SE timber plank can be specified with a treatment process providing a Euro-class B, UK class 0 Reaction to Fire classification.

Applications:

Suitable for residential developments both new build or refurbishment schemes.

General information
Specification data - Carbon steel cycle lockers
Product Reference

PCH Cycle Store

Type

PCH 24.26

Six semi-vertical or six hoop stored cycles, insert requirement. Width: 2550 mm.

PCH 24.32

Eight semi-vertical or eight hoop stored cycles, insert requirement. Width: 3150 mm.

PCH 24.44

12 semi-vertical or 10 hoop stored cycles, insert requirement. Width: 4350 mm.

PCH 24.50

13 semi-vertical or 12 hoop stored cycles, insert requirement. Width: 4950 mm.

PCH 24.56

15 semi-vertical or 14 hoop stored cycles, insert requirement. Width: 5550 mm.

PCH 24.68

18 semi-vertical or 16 hoop stored cycles, insert requirement. Width: 6750 mm.

PCH 24.74

20 semi-vertical or 18 hoop stored cycles, insert requirement. Width: 7350 mm.

PCH 24.80

22 semi-vertical or 20 hoop stored cycles, insert requirement. Width: 7950 mm.

PCH 24.92

25 semi-vertical or 22 hoop stored cycles, insert requirement. Width: 9150 mm.

PCH 24.98

27 semi-vertical or 24 hoop stored cycles, insert requirement. Width: 9750 mm.

PCH 48.26

12 semi-vertical or 12 hoop stored cycles, insert requirement. Width: 2550 mm.

PCH 48.32

16 semi-vertical or 16 hoop stored cycles, insert requirement. Width: 3150 mm.

PCH 48.44

24 semi-vertical or 20 hoop stored cycles, insert requirement. Width: 4350 mm.

PCH 48.50

26 semi-vertical or 24 hoop stored cycles, insert requirement. Width: 4950 mm.

PCH 48.56

30 semi-vertical or 28 hoop stored cycles, insert requirement. Width: 5550 mm.

PCH 48.68

36 semi-vertical or 32 hoop stored cycles, insert requirement. Width: 6750 mm.

PCH 48.74

40 semi-vertical or 36 hoop stored cycles, insert requirement. Width: 7350 mm.

PCH 48.80

44 semi-vertical or 40 hoop stored cycles, insert requirement. Width: 7950 mm.

PCH 48.92

50 semi-vertical or 44 hoop stored cycles, insert requirement. Width: 9150 mm.

PCH 48.98

54 semi-vertical or 48 hoop stored cycles, insert requirement. Width: 9750 mm.

Cladding/ Finish

See 'Options' below and insert requirements.

Door configuration

Left hand hung

Right hand hung

Roof

Standard

WILD® greenroof system

e-Cycle Charging

Not required

Required

Locking

Latch and code secure lock

Mechanical code lock with code secured entrance.

Latch and eurocylinder lock

Self-latching daybolt. Eurocylinder key-operated self-latching bolt lock.

Latch and FB2 key lock

Self-latching daybolt. FB2 lever key-operated self-latching bolt lock.

Latch and triangle key lock

Self-latching daybolt. Triangle key-operated self-latching bolt lock.

Latch only

Self-latching daybolt. No bolt lock.

Slide bolt and padlock

Self-latching daybolt. Integral slide bolt/ handle with padlock provision.

Accessories/ Other requirements

Consult manufacturer and insert requirements.

Standard product features

Height:

2260 mm.

Depth:

  • PCH 24: 2450 mm.
  • PCH 48: 4850 mm.

Product Options

Cladding/ Finish:

- Timber (ForestPanel™):

  • ForestPanel™: FSC European redwood with light green finish and 100 mm PSE planks.
  • ForestPanel™ Cedar: FSC Western red cedar with a natural finish and 100 mm PSE planks.
  • ForestPanel™ Colour: FSC European redwood in a choice of colour, and 100 mm PSE planks. Consult manufacturer and insert requirements.
  • ForestPanel™ Iroko: FSC Iroko with an oiled finish and 70 mm PSE planks.
  • ForestPanel™ TG: FSC European redwood with a light green finish and 125 mm TGV planks.
  • ForestPanel™ TG Colour: FSC European redwood in a choice of coloured woodstains (Classic collection), and 125 mm TGV planks. Consult manufacturer and insert requirements.

- SSAB steel panels (Firenze™):

  • Firenze™ Anthracite: Plastisol P200® coating, finished in anthracite grey.
  • Firenze™ Black: Plastisol P200® coating, finished in black.
  • Firenze™ Grey: Plastisol P200® coating, finished in goosewing grey.

- Galvanized steel panels (Firenze™):

  • Firenze™ Design Wrap: SAV graphic design finish. Custom design. Consult manufacturer and insert requirements.
  • Firenze™ Freestyle: R5-T8 perforated pattern and powder-coated finish. Custom design. Consult manufacturer and insert requirements.

- High density polyethylene (HDPE - Tuffplas™):

  • Tuffplas™ Black: HDPE, 100% recycled. Black woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Brown: HDPE, 100% recycled. Brown woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Green: HDPE, 100% recycled. Green woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Grey: HDPE, 100% recycled. Grey woodgrain finish. 100 mm SE plank.
  • Tuffplas™ TG Black: HDPE, 100% recycled. Black woodgrain finish. 140 mm TGV plank.
  • Tuffplas™ TG Brown: HDPE, 100% recycled. Brown woodgrain finish. 140 mm TGV plank.
  • Tuffplas™ TG Grey: HDPE, 100% recycled. Grey woodgrain finish. 140 mm TGV plank.

- Vmex V3 panels (ZedPanel™):

  • ZedPanel™ Black: Vmex V3 panel. 195 x 50 mm wire aperture. Polyester powder coated black.
  • ZedPanel™ Green: Vmex V3 panel. 195 x 50 mm wire aperture. Polyester powder coated green.

Locking:

  • 100% stainless steel mechanism.
  • Aluminium handles (latch mechanisms).
