PAS 68 HVM Compact Terra Barriers - 3.5t At 30mph

PAS 68 HVM Compact Terra Barriers - 3.5t At 30mph

Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Frontier Pitts Ltd

PAS 68 Barrier - 3.5t at 30 mph.

Jump to:
+44 (0)1293 548301 www.frontierpitts.com
Application

Suitable for high security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks. Terra Barriers have been proven to stop vehicles, providing Hostile Vehicle Mitigation (HVM), impact-resistant barriers preventing vehicle as a weapon attack.

Description

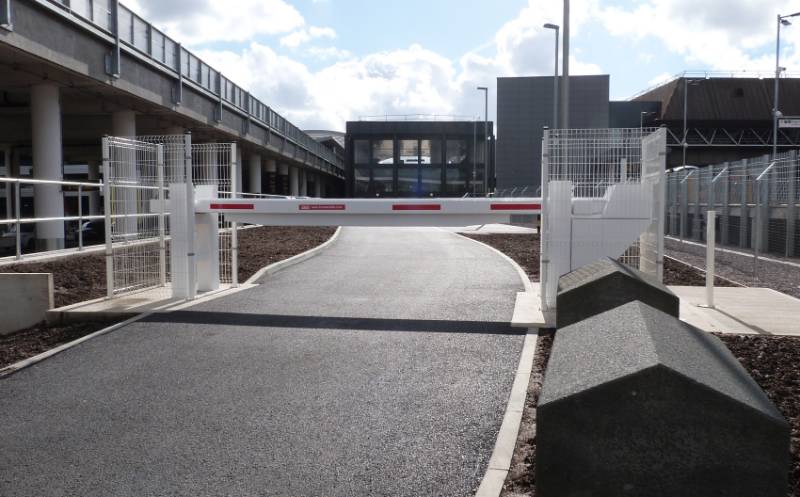

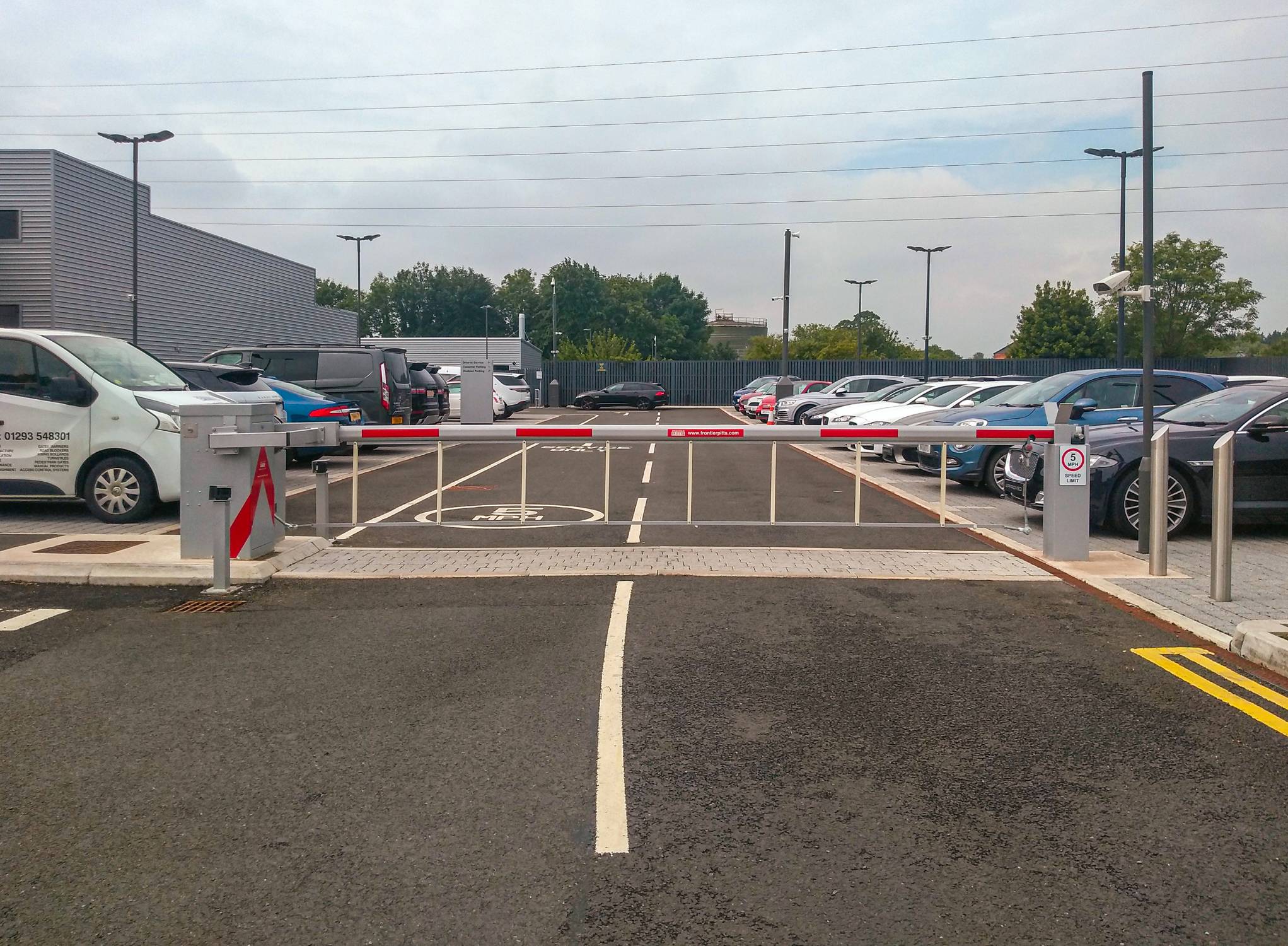

The Compact Terra Barrier is designed to look like a standard car park barrier so that it does not highlight the high security protection that the site requires. The barrier has been BSi PAS 68 impact tested to completely stop a 3.5 tonne vehicle travelling at 30 mph within the barrier aperture. PAS 68 Classification Code V/3500[N1]/48/90:1.5/0.0. A PSSA Verified Product.

The barrier has a shallow depth foundation of 500 mm and is fitted with an aluminium boom and a lower folding skirt as standard.

All made to order with size and safety system options available depending on individual site risk assessments. Compliant with BS EN 13849, Secured by Design and are listed on the CPNI List of IWA 14 and PAS 68 products.

Applications:

Suitable for high security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks. Terra Barriers have been proven to stop vehicles, providing Hostile Vehicle Mitigation (HVM), impact-resistant barriers preventing vehicle as a weapon attack.

General information

Finish

Shotblasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrially polluted inland sites to BS 5493

Uniclass 2015

Pr_30_59_59_72 Rising arm vehicular barriersPrimary

CAWS

Q41/190 Vehicle access point barriers

Specification data - Rising arm vehicular barriers

Product Reference

PAS 68 Compact Terra Barrier

Length

Insert requirement from 'Options' below

Actuation/ Safety

Not required

100 mm LED Traffic Lights system

Highly recommended to be installed with all Road Blocker systems.

Audible alarms

Flashing beacons

Hydraulic locking

Locks beam in the raised position (in case of power fail).

Induction loop/ Vehicle detector loop system

Lasers

Light curtain

Photocell

Safety edges

Signage

Ultrasonic sensors

Power fail operation

Accumulator

Allows a number of operations in power failure mode.

Manual hand pump

Standard.

Access control

ANPR - Automatic number plate recognition

Audio intercom

Card reader

Digital keypad

GSM intercom

HMI - Human machine interface

Hydraulic oil

Push button

VHF Radio control system

Accessories

None

100 mm diameter red/ green LED traffic light head with monitored safety circuit

Boom lights

Hydraulic locking bolt

Stops the barrier being forcibly opened.

Warning sign

Standard product features

Finish:

Shotblasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrially polluted inland sites to BS 5493.

Crash beam height:

1000 mm.

Operational speed:

7.5–15 seconds, dependent upon boom length.

Product Options

Length:

6 m (maximum).

Third party certifications
  • Certificate: Secured by Design accredited
  • Horiba MIRA: Certificate: PAS 68 impact tested
