Application

Suitable for floors and for use with underfloor heating

Description

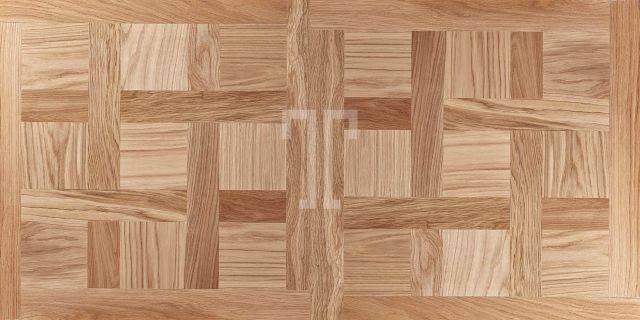

Engineered European oak flooring, for laying in a design panel format.

Features and benefits:

  • Part of the PARQUET PATTERNS collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for floors and for use with underfloor heating

- Can be installed over:

  • Concrete (dry, flat).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier).

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details.

Guarantee:

25-year product warranty.

General information
Uniclass 2015
Mosaic panels (Pr_35_93_97_52)Primary
Specification data - Mosaic panels
Product Reference

PARQUET PATTERNS Collection - Design Panel

Type

Chantilly

Chantilly Fumed

Petite Jerdi

Petite Jerdi Fumed

Standard product features

Technical characteristics:

  • Thickness: 21 mm.
  • Wood species: European oak.
  • Finish: Restoration oil.
  • Grade: Prime.
  • Construction: Two ply engineered, 100% hardwood.
  • Edge detail: Square shouldered.
  • Wear layer: 4 mm hardwood (nominal).
  • Surface texture: Smooth.
  • Profile: Tongue and grooved to all sides.
  • Tolerance: ±0.75 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Slip rating: Dry: Low risk; Wet: moderate risk.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Formaldehyde emission: E1.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Batch variation: Not advised to mix batches in one floor area.

Product Options

Type:

- Chantilly:

  • Tonal variation: Medium natural.
  • Width: 740 mm.
  • Length: 740 mm.
  • Tone: Mid.

- Chantilly Fumed:

  • Tonal variation: Medium natural.
  • Width: 740 mm.
  • Length: 740 mm.
  • Tone: Dark.

- Petite Jerdi:

  • Tonal variation: Low natural.
  • Width: 675 mm.
  • Length: 675 mm.
  • Tone: Neutral.

- Petite Jerdi Fumed:

  • Tonal variation: Medium natural.
  • Width: 675 mm.
  • Length: 675 mm.
  • Tone: Dark.
