PAROC® AST® E
Verified by manufacturer over a year ago

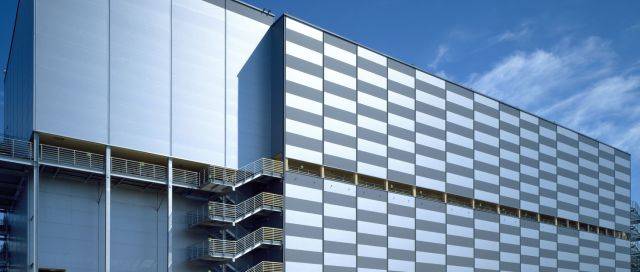

Prefabricated stone wool based lightweight sandwich panels for walls with higher strength requirements.
Application
For walls with higher strength requirements.
Description
Fireproof prefabricated stone wool based lightweight sandwich panels. The panels are based on Advanced Structural Technology (AST®) and high-quality PAROC® structural stone wool. The facings are constructed from steel sheet which act together with PAROC structural wool core to provide a composite action of high performance in strength and durability. The bonding between the core and the facings is performed by an adhesive which fully covers the surfaces.
Applications:
For walls with higher strength requirements.
General information
Uniclass | |
CAWS | H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel |
SKU Code | unknown |
Specification data - Carbon steel insulating sandwich panels
Classification data | |
Product Reference | PAROC® AST® E |
Thickness | 50 mm Guidance for specification option: U-value: 0.77 W/m²K; fire rating: El 45; weight: 16 kg/m². 80 mm Guidance for specification option: U-value: 0.53 W/m²K; fire rating: El 45 (horizontal), El 90 (vertical); weight: 19 kg/m². 100 mm Guidance for specification option: U-value: 0.43 W/m²K; fire rating: El 45 (horizontal), El 120 (vertical); weight: 22 kg/m². 120 mm Guidance for specification option: U-value: 0.36 W/m²K; fire rating: El 45 (horizontal), El 120 (vertical); weight: 24 kg/m². 150 mm Guidance for specification option: U-value: 0.29 W/m²K; fire rating: El 240; weight: 28 kg/m². 175 mm Guidance for specification option: U-value: 0.25 W/m²K; fire rating: El 240; weight: 31 kg/m². 200 mm Guidance for specification option: U-value: 0.22 W/m²K; fire rating: El 240; weight: 34 kg/m². 240 mm Guidance for specification option: U-value: 0.18 W/m²K; fire rating: El 240; weight: 39 kg/m². 300 mm Guidance for specification option: U-value: 0.14 W/m²K; fire rating: El 240; weight: 47 kg/m². |
Facing | |
External | |
Profile | Line 150 Line 200 Line 600 Micro Micro+Line 200 Micro+Line 600 Smooth |
Thickness | 0.6 mm Guidance for specification option: Standard. 0.7 mm |
Coating | PVDF Guidance for specification option: For normal exterior use. PVDF HB Guidance for specification option: For normal exterior use. PVDF Matt Guidance for specification option: For normal exterior use. |
Colour | Guidance for specification option: Insert requirement from manufacturer's literature. |
Internal | |
Profile | Acoustic Guidance for specification option: Perforated. Reface Line 150 Line 200 Line 600 Smooth |
Thickness | 0.5 mm Guidance for specification option: Standard. 0.6 mm 0.7 mm |
Coating | Polyester (SP) Guidance for specification option: Standard, for interior and external use. FoodSafe FS-1 Guidance for specification option: Fully food safe for interior use. FoodSafe FS-2 Guidance for specification option: Food safe for interior use. Stainless steel (HST) Guidance for specification option: For special hygiene requirements and premium façades. |
Colour | Guidance for specification option: Insert requirement from manufacturer's literature. |
Standard product features | Core: AST® E stone wool, the fibres are uniformly aligned to achieve controlled strength properties. It is specially treated to be water-repellent, non-hygroscopic and non-capillary. Facing: Hot dip galvanized coil-coated steel sheet. Panel length (maximum): 12 m, dependant on panel thickness. Module width: 1200 mm (1196 mm cover width). Fire classification: A2-s1, d0. Sound reduction (Rw): 27–32 dB. Air tightness (to BS EN 14509, 50 Pa): <1.0 m³/m²h (sealant in both grooves). Rain tightness (to BS EN 14509): 1.2 kN/m² (sealant in both grooves). |
Product Options | Fixing: Panels are usually fastened using either penetrating panel fixings or by pressing the panels between profiles. |
