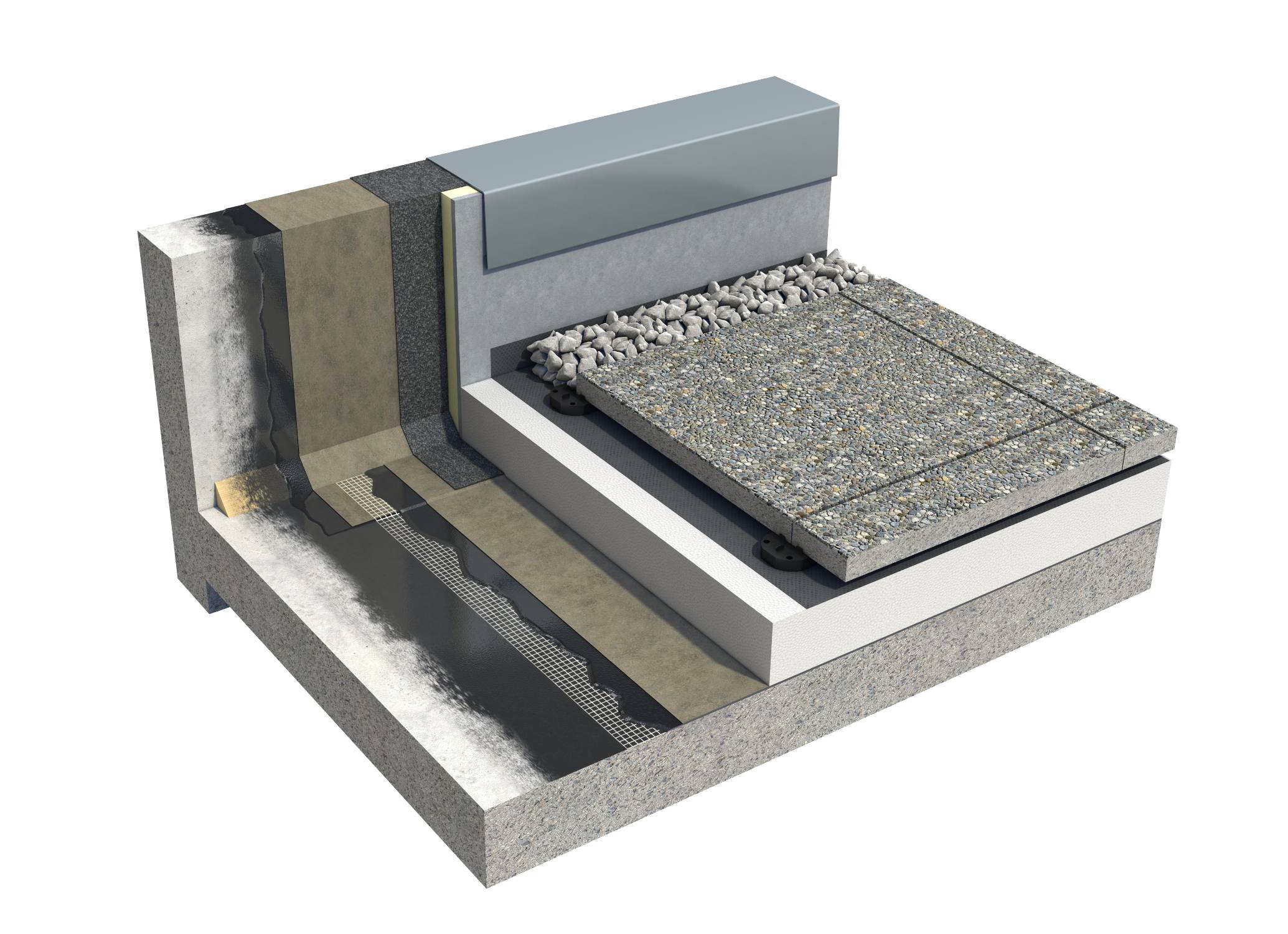

Parabit Solo System

Technical characteristics:

- Parabit hot melt compound:

• Mineral: Modified bitumen.

• Colour: Black.

• Flashpoint to CAN/CGSB-370.50-M89/ ASTM D92: ≥ 260°C.

• Cone penetration at 25°C to CAN/CGSB-370.50-M89/ ASTM D1191-64: ≤ 110. At 50°C: ≤ 200.

• Flow test, 75°C, 60°C, 5 hours to CAN/CGSB-370.50-M89/ ASTM D1191-64: ≤ 3 mm.

• Viscosity at 180°C to Brookfield DVII, S27: ≤ 1000 mPas.

• Ring and Ball to EN 1427: ≥90°C.

• Density at 25°C to EN 13880-1: 900-1100 kg/m³.

• Penetration at 25°C to EN 1426: 40-100.

• Penetration at 25°C to EN 1426: 40-100.

- Power Elastomeric 250 Sand:

• Size (l x w): 16 x 1 m.

• Weight: 45 kg.

• Thickness: 2.5 mm.

• Tensile strength: 822 N/50mm (MD) 785 N/50mm (TD).

• Elongation at break: 41% (MD) 52% (TD).

• Nail tear strength: 188N (MD) 220N (TD).

• Low temperature flexibility: -20°C.

• Water vapour resistance: 733MNsg-1.

• Water penetration at joint: Nil.

• Surface finish: Sand.

- Thermaweld Mineral Capsheet:

• Surface: Upper: Mineral granules with thermofusible polyethylene (PE) film to overlap selvedge. Lower: Thermofusible PE film.

• Material: Styrene butadiene styrene (SBS) modified bitumen.

• Type of reinforcement: Polyester.

• Selvedge width: 75 mm.

• Thickness: 4.3 mm.

• Mass per unit area to EN 1849-1: 5.25 kg/m².

• Water tightness to EN 1928 (B): Pass.

• Reaction to fire to EN 13501-1: Class F.

• Tensile strength to EN 12311-2 (A) 900 N/50 mm (MD and TD).

• Elongation to EN 12311-2 (A:) 35% (MD and TD).

• Dimensional stability to EN 1107-1: ≤0.5%.

• Resistance to Cold Bend to EN 1109: ≤-20°C.

• Flow resistance at elevated temperature to EN 1110: >75°C.

• Artificial ageing behaviour to EN 1296: Pass.

• Adhesion of granules to EN 12039: <30%.

The external fire performance of a roof is dominated by the built-up roof system. No performance can be assessed for the product alone. Thermaweld Mineral has been tested as part of a system to BS 476-3 and achieved EXT.F.AB (national class) rating.

- Parabbit Solo Reinforcing Grid:

• Material: Resin coated interwoven glass fibre reinforcement.

• Colour: Blue.

• Roll size: 50 x 1 m.

• Weight: 110 g/m².

• Mesh size: 11.5 x 10 mm.

• Tensile strength at break: Warp: 1.500 N/50 mm. Weft: 1.400 N/50 mm.

• Elongation at break: Warp: 3.3%. Weft: 3.6%.

Accessories:

- Neodyl Joint Strip:

• Material: SBS elastomeric bitumen without reinforcement.

• Colour: Black membrane with synthetic fibre finishes to both upper and lower surfaces.

• Roll size: 10 x 0.33 m.

• Thickness: 5 mm.

• Weight: 20 kg/ roll.

• Modulus at 100%: 90 daN/cm².

• Elasticity range: 100%.

• Cold flexibility: -25°C.

• Heat flow: <2.0mm 90°C/2h.

- Neodyl Chord:

• Material: Flexible extruded chord made from synthetic rubber.

• Colour: Black.

• Roll size: 10 m.

• Chord diameter: 30 mm.

• Weight: 11 kg/ chord.

• Elongation at break: > 200%.

• Heat resistance: -50 to +80°C.

- Icopal Roof Plant and Equipment Support:

Provides a cost-effective way of supporting rooftop equipment and services without penetratingthe waterproofing. The system is lightweight and adaptable avoiding unnecessary costly detailing.

- Roofgard Paving Support System:

Roofgard Paving Support System provides a versatile and cost-effective means of creating a fullysupported and stable raised paved area, terrace, walkway or balcony. They are suitable for use withconcrete paving tiles, or Icopal Terradek timber decking tile.
