Paper Towel Dispenser and Waste Bin - B-3942, B-3944, B-3947 and B-3949

Description

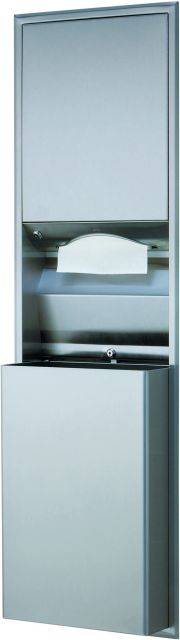

Recessed, semi-recessed or surface mounted combined dispensers and waste bins for C-fold and multi-foldpaper towels. Unit includes folded paper towel module and waste bin which can be interchanged with an automatic or touch-free roll towel modules. All-welded construction, seamless, bevelled flange. Removable leak-proof plastic waste container is locked into cabinet. Optional TowelMate allows paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening. Optional LinerMate facilitates quick and easy change-overs and eliminates the use of unsanitary vinyl liners.

General information

Uniclass 2015

Pr_40_70_22_62 Paper towel dispensersPrimary

CAWS

N13/442 Paper towel dispensers

Specification data - Paper towel dispensers

Product Reference

B-3942 Paper Towel Dispenser and Waste Bin with stainless steel skirt for semi-recessed mounting

B-3944 Recessed Paper Towel Dispenser and Waste Bin

B-3947 Recessed Paper Towel Dispenser and Waste Bin

B-3949 Paper Towel Dispenser and Waste Bin with stainless steel skirt

Standard product features

- B-3942:

  • Capacity: 600 C-fold or 800 multi-fold paper towels, 45.4 litre waste container.
  • Material: Satin finish stainless steel.
  • Operation: Double-pan-back construction door with a full-length stainless steel piano-hinge and semi-concealed keyed tumbler lock.
  • Dimensions: 443 mm wide x 1429 mm high x 209 mm deep (51 mm recess and 158 mm projection).

- B-3944:

  • Capacity: 600 C-fold or 800 multi-fold paper towels, 45.4 litre waste container.
  • Material: Satin finish stainless steel.
  • Operation: Double-pan-back construction door with a full-length stainless steel piano-hinge and semi-concealed keyed tumbler lock. Optional TowelMate allows paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening.
  • Dimensions: 437 mm wide x 1422 mm high x 205 mm deep (100 mm recess and 105 mm projection).

- B-3947:

  • Capacity: 600 C-fold or 800 multi-fold paper towels, 68.1 litre waste container
  • Material: Satin finish stainless steel.
  • Operation: Double-pan-back construction door with a full-length stainless steel piano-hinge and semi-concealed keyed tumbler lock.
  • Dimensions: 437 mm wide x 1422 mm high x 308 mm deep (100 mm recess and 208 mm projection).

- B-3949:

  • Capacity: 600 C-fold or 800 multi-fold paper towels, 45.4 litre waste container.
  • Material: Satin finish stainless steel.
  • Operation: Double-pan-back construction door with a full-length stainless steel piano-hinge and semi-concealed keyed tumbler lock.
  • Dimensions: 443 mm wide x 1429 mm high x 210 mm deep.

Product Options

Accessories:

  • 3944-130 - TowelMate.
  • 3944-134 LinerMate - for units B-3942, B-3944 and B-3949.
