Oxygen Cubicles
Description

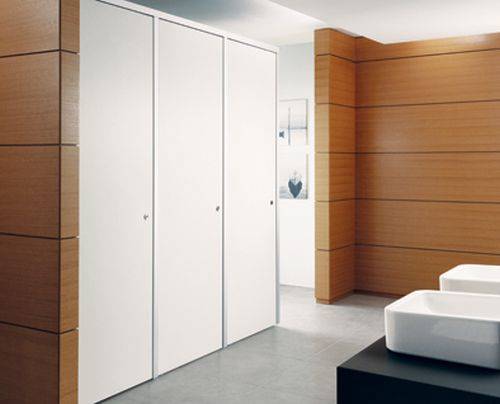

Frameless cubicle system available in a range of materials and finishes.

General information

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Product Reference

Oxygen HPL

High pressure laminate faced chipboard.

Oxygen HPL/ Glass

High pressure laminate faced chipboard partitions with glass doors.

Oxygen MFC

Melamine faced chipboard.

Oxygen MFC/ Glass

Melamine faced chipboard partitions with glass doors.

Oxygen Veneer

Veneered MDF.

Oxygen Veneer/ Glass

Veneered MDF partitions with glass doors.

Oxygen Veneer/ HPL

Veneered MDF doors and front panels, HPL faced partitions.

Size

-

Height

2150 mm

Standard height.

2370 mm

Full height (A).

2470 mm

Full height (B).

Depth

Maximum 2000 mm.

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

  • Ceiling clearance (minimum): 150 mm.
  • Pedestal adjustment: ± 6 mm.

Construction:

  • Headrail: Extruded aluminium.
  • Pilasters: Extruded aluminium.
  • Wall fixings: Extruded aluminium channel.
  • Finish: Ultra-matt satin anodized.

Ironmongery:

  • Hinges: Pivot system to top and bottom of door with no visible fixings.
  • Bolt: Lever-operated indicator bolt and keep, with circular face plate and emergency release.
  • Material/ Finish: Brushed stainless steel.

Product Options

Product reference:

– Oxygen HPL:

  • Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: Partitions/ panels, 18 mm; Doors 36 mm.
  • Edge treatment: 1 mm thick matching PVC.

– Oxygen HPL/ Glass:

  • Partition/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Doors: screen-printed, toughened safety glass.
  • Thickness: 8 mm.
  • Edge treatment: Polished flat and arrissed.
  • Colour: Opaque white or black.
  • Standard height only.

– Oxygen MFC:

  • Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
  • Thickness: Partitions/ panels, 18 mm; doors, 36 mm.
  • Edge treatment: 1 mm thick matching PVC.

– Oxygen MFC/ Glass:

  • Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
  • Thickness: Partitions/ panels, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Doors: screen-printed, toughened safety glass.
  • Thickness: 8 mm.
  • Edge treatment: Polished flat and arrissed.
  • Colour: Opaque white or black.
  • Standard height only.

– Oxygen Veneer:

  • Partition/ panel: 18 mm thick, 720 kg/m³ medium density fibreboard (MDF). Class A, low formaldehyde content with durability class D2.
  • Doors: 36 mm thick, 660 kg/m³ furniture grade, moisture resistant chipboard.
  • Finish: Lacquered, genuine wood veneer.
  • Edge treatment: Matching hardwood.

– Oxygen Veneer/ Glass:

  • Partition/ panel: 720 kg/m³ medium density fibreboard (MDF). Class A, low formaldehyde content with durability class D2.
  • Thickness: 18 mm.
  • Finish: Lacquered, genuine wood veneer.
  • Edge treatment: Matching hardwood.
  • Doors: screen-printed, toughened safety glass.
  • Thickness: 8 mm.
  • Colour: Opaque white or black.
  • Standard height only.

– Oxygen Veneer/ HPL:

  • Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard.
  • Thickness: Partitions/ panels, 18 mm; Doors 36 mm.
  • Door/ front panel finish: Lacquered, genuine wood veneer with matching hardwood edging.
  • Partitions: faced each side with high pressure laminate (HPL) and 1 mm thick matching PVC edging.

Floor clearance:

  • Standard height: 100 mm.
  • Full height (A) and (B): 15 mm.
