Over Fascia Vents - Eaves Level Ventilation
Verified by manufacturer 18 days ago
10 mm Slide & Lock Vent
10 mm Slide & Lock Vent

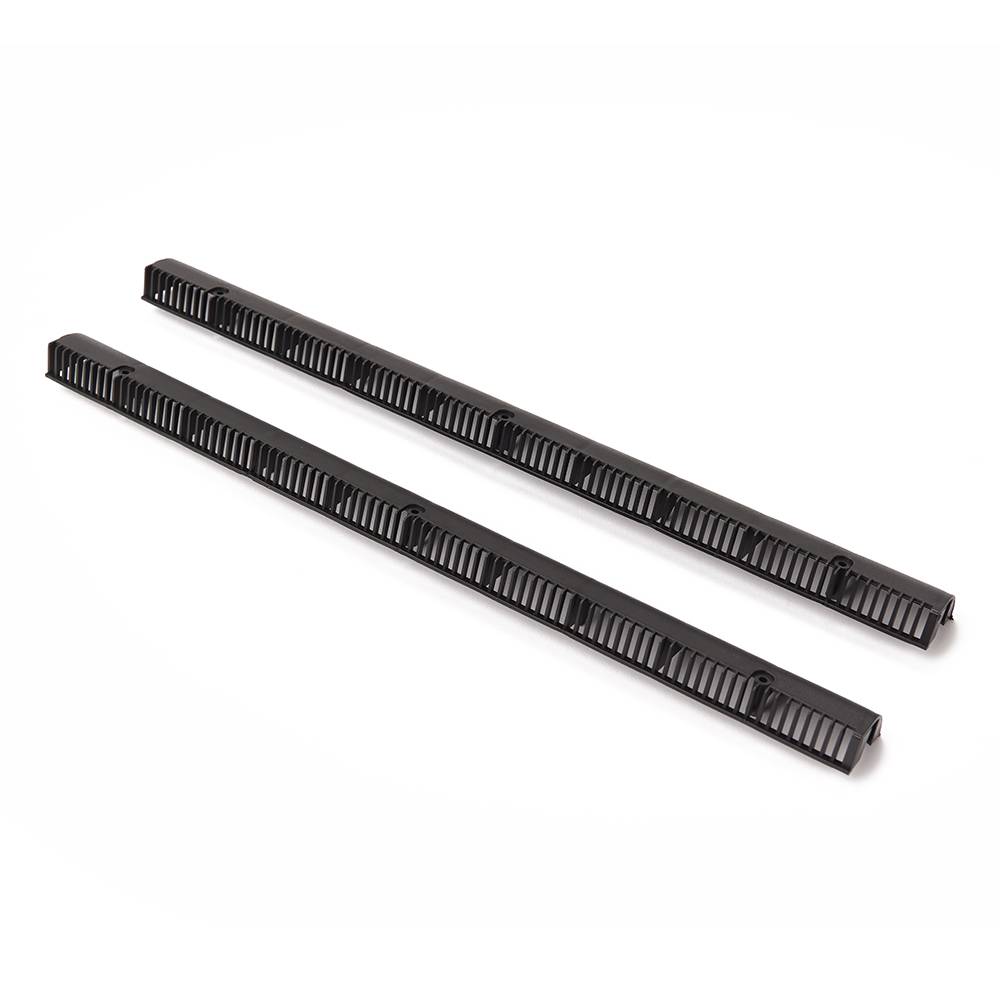

Over fascia ventilators provide air flow into the roof space.
Application
- The 10 mm vent is suitable for conventional cold roofs.
- The 25 mm vent is suitable for warm roofs and pitches of 15° and below.
Description

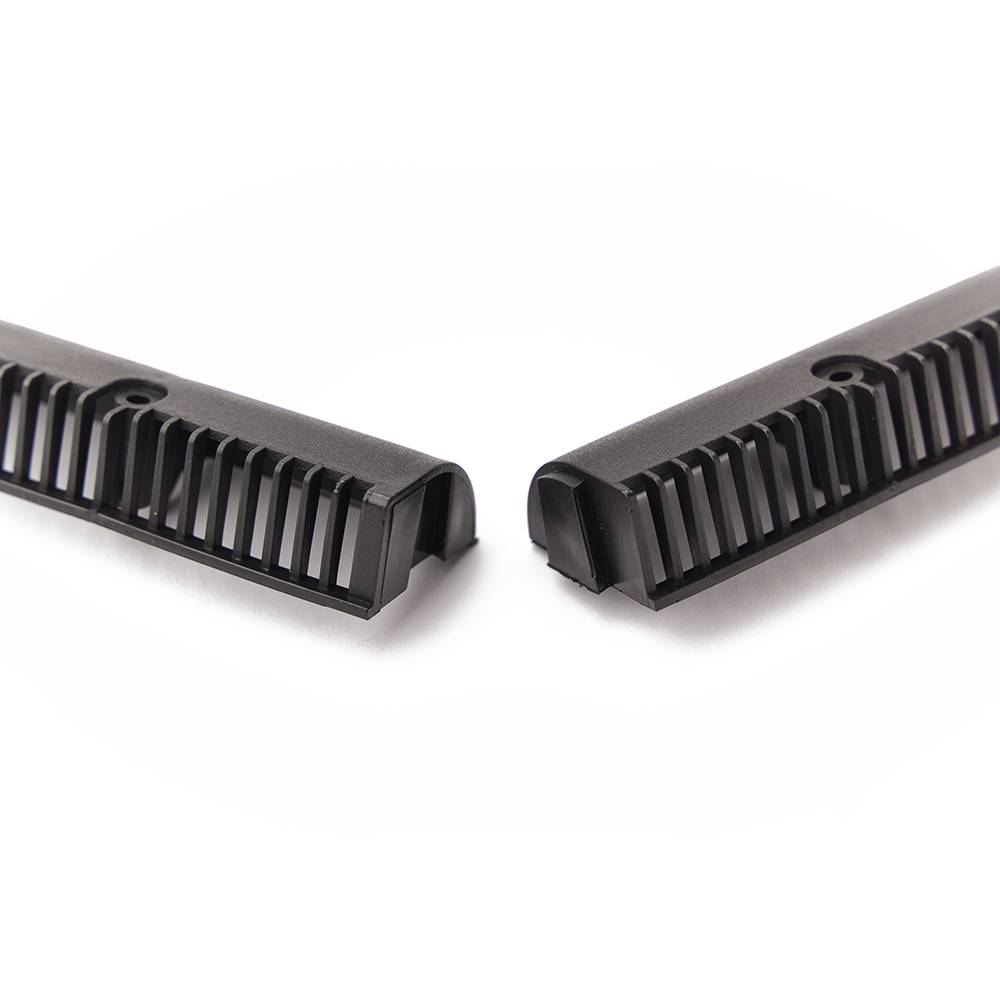

Over fascia ventilators provide discreet eaves ventilation by allowing airflow into the roof space. Each 500mm piece has a male and female end which interlock by simply sliding into place. This produces a robust structure that will not crush or warp.
Features and Benefits:
- Light weight.
- Discreet appearance once installed.
- Easy to install.
- Durable, resistant to decay.
- UV stable.
Quality Standards:
- Conforms to BS 5250: For Roof Space Ventilation (Management and Moisture in Buildings).
- Satisfies all NHBC requirements.
General information
Color | Black |
Material | Polypropylene |
Shape | Rectangle |
Length | 1000 mm |
Width | 38 mm 42 mm |
Height | 20 mm 30 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits H60/345 Ventilated eaves with integrated grilles/ trays H60/355 Ventilated eaves with separated grilles/ trays H61/345 Ventilated eaves with integrated grilles/ trays H61/355 Ventilated eaves with separated grilles/ rays H62/345 Ventilated eaves with integrated grilles tray H62/355 Ventilated eaves with separated grilles/ trays H64/665 Ventilated eaves for cold roof construction H64/670 Ventilated eaves for warm roof construction H65/345 Ventilated eaves – integrated grilles/ trays H65/355 Ventilated eaves – separated grilles/ trays H67/660 Ventilated eaves for cold roof construction H67/665 Ventilated eaves for warm roof construction |
Product range |
Specification data - Eaves fascia grilles
Ventilation opening | 10 000 mm²/ m. |
Colour | Black. |
Length | 1 m. |
Dimensions | 38 x 20 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Over Fascia Vents Datasheet
Over Fascia Vent Installtion Guide
