Original Meldorfer - Lightweight Mineral Facing Brick
Verified by manufacturer 2 days ago
URBAN CLASSIC
URBAN CLASSIC

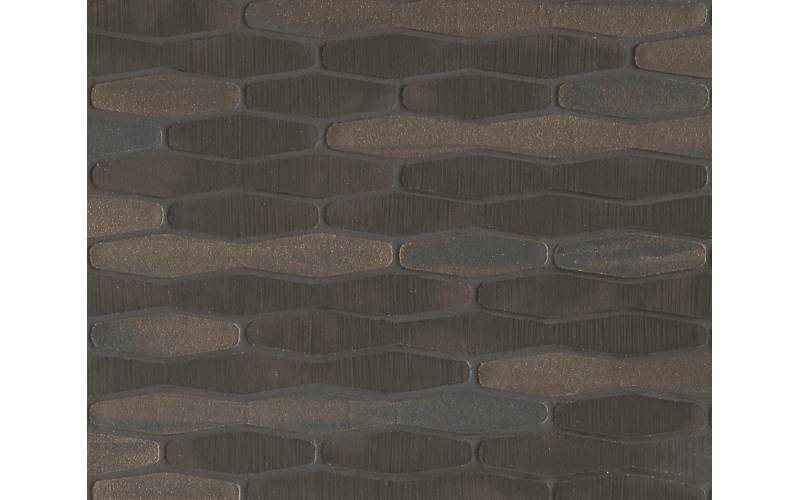

Lightweight, handmade, mineral facing bricks for decorative design.
Application
Decorative surface coating for individual design in the Capatect façade systems and for interior application.
Description
Lightweight, handmade, mineral facing bricks for decorative design of facades and interior surfaces as individual design variations.
Features and benefits:
- Hand-formed from high-quality and approximately 90% mineral raw materials.
- Low cladding weight of only 5 kg/m² and therefore low CO2 footprint according to EPD.
- Slender material structure of only approximately 8 mm including laying mortar 'Capatect Meldorfer® Ansatzmörtel 080'.
- Weatherproof and UV-resistant, durable.
- Hard-wearing and resistant to mechanical stress, scratch-resistant and resistant to cleaning.
- Water vapour diffusible.
- Heat conductivity: λR = 0.70 W/(mK) according to DIN 4108-4.
- Special formats, colours and surfaces available on request.
Assessments and Approvals:
- German: Z-33.41-130, Z-33.42-132, Z-33.43-133, Z-33.47-859, Z-33.42-1739.
- European: ETA-07/0184, ETA-10/0436, ETA-12/0383 ETA-11/0300, ETA-13/0890, ETA-13/0891, ETA-13/0289.
General information
Color | Red Other Beige Yellow Grey |
Finish | Brick |
Material | Mineral |
Shape | Rectangle Other |
Length | 240 mm 300 mm 400 mm 600 mm 740 mm |
Width | 71 mm 52 mm 135 mm 40 mm 300 mm |
Uniclass | |
CAWS | M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems |
Specification data - Composite brick slips
Classification data | |
Material | Mineral based. |
Work sizes | 240 x 52 mm. Guidance for specification option: Thin format (DF/Format II) 240 x 71 mm. Guidance for specification option: Normal format (NF/Format III) 300 x 52 mm. Guidance for specification option: Multi format (MF) 300 x 71 mm. Guidance for specification option: Multi format (MF) 300 x 135 mm. Guidance for specification option: Multi format (MF) 300 x 135 mm. Guidance for specification option: Special format (SF) 400 x 40 mm. Guidance for specification option: Exclusive long format (LF) 600 x 300 mm. Guidance for specification option: Large format (GF) 740 x 52 mm. Guidance for specification option: Extra long format (XLF) Manufacturer guidanceMaterial thickness: 4-6 mm. |
Profile | Manufacturer's standard. |
Water vapour permeability | Category V2 (medium) according to DIN EN 15824 sd ≥0.14 to <1.4 m according to DIN EN ISO 778. |
Reaction to fire | Class A2-s1, d0 according to DIN EN 13501-1. |
Accessories | Capatect Meldorfer Ansatzmörtel 080, Anthracite. Capatect Meldorfer Ansatzmörtel 080, Cement grey. Capatect Meldorfer Ansatzmörtel 080,Sand white. Manufacturer guidanceAdhesive and joint mortar for Meldorfer flat brick slips.
|
Water permeability | ≤0.1 kg/(m² h½) according to DIN EN 1062-3 Category W3 (low) according to DIN EN 15824. |
Colour: | Altweiß. Juist. Sylt. Antik. Mecklenburg. Hamburg. Dithmarschen. Rotbunt. Lüneburg. Friesland. Oldenburg. Brandenburg. Westerwald. Stockholm. Oslo. Sandstein. Kopenhagen. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Mineral |
Literature
Original Meldorfer
Capatect Meldorfer Ansatzmörtel 080
