Orangeries
Description

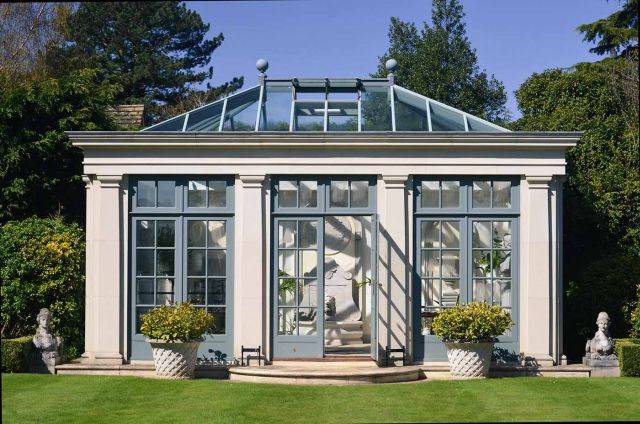

Elegant and original cast stone orangeries developed from a range of half columns and pilasters.

Available either freestanding or connected to an existing property. Haddonstone can also recommend joinery and glazing for the orangery project, consult manufacturer for details.

Material:

- Haddonstone (Semi-dry cast limestone):

High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

General information

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Uniclass 2015

Pr_20_93_52_13 Cast stone masonry unitsPrimary

CAWS

B91/365 Pavilion/ Gazebo

F22/110 Cast stone

Specification data - Cast stone masonry units

Product Reference

Orangery

Type

Bespoke, consult manufacturer for details and insert requirements.

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Accessories

None

Cast-in fixings

Insert requirements for cast fixings.

Cast-in lifting sockets

Insert requirements for lifting sockets.

Standard product features

Compressive cube strength after 28 days (minimum):

  • Haddonstone: >35 MPa.
  • TecStone: >45 MPa.

Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

Haddonstone:

  • Material density: 2150 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >35 N/mm² (MPa).
  • Aggregate size: 0–3 mm continuously graded.
  • Finish: Ex-Mould (no finishing required).
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).
