Oracle Z Locker
Verified by manufacturer over a year ago
Locker with Z-shaped solid grade laminate doors and aluminium carcass.
Application
For use in wet or demanding areas.
Description
Locker with Z-shaped solid grade laminate doors and aluminium carcass.

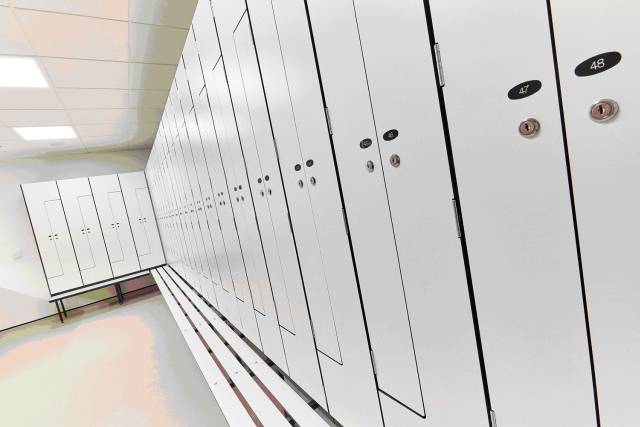

Suitable for all wet and dry environments, Oracle lockers have been specifically designed with z-shaped compartments to allow extended hanging space. The highly-effective combination of aluminium carcasses with solid-grade laminate doors, make these lockers a stylish and durable addition to any premium commercial end-of-rip facility.
Features and benefits:
- 10 mm or 12 mm solid-grade laminate, Z-shaped door combination, in colours of client choice.
- Aluminium carcasses with stainless steel door framing, for longevity – powder coated to range of colours.
- Wide range of configurations and sizes offered in addition to the standard sizes shown.
- Minimal door gap design for premium appearance.
- Flush inset number plate with option for bespoke vinyl numbering.
- Several integrated bench configurations.
- FSC-certified (where applicable).
- Provided with cam-locks as standard, with options for:
- Digital combination locks.
- RFID touchless locks.
- Coin refund locks.
- Swivel latch – for users own padlock.
General information
Color | Manufacturer guidancePowder-coated to colour chosen from Maxwood selector. RAL colour for extra cost. |
Finish | Powder coated Guidance for specification option: Locker carcass. Polished Guidance for specification option: Door edge treatment. |
Material | Aluminium Guidance for specification option: Shelf, sides, base and top. Steel Guidance for specification option: Doors / End panels. SGL Guidance for specification option: Stainless steel door frame. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N10/220 Lockers |
Product range |
Specification data - Lockers
Classification data | |
Performance requirements | Heavy duty. |
Locker type | Two doors, Z-shaped. |
Dimensions | 1775 x 300 x 450 mm. Guidance for specification option: Standard size. Height x width x depth. Other. Guidance for specification option: Various other sizes available, consult manufacturer for information. |
Material | 10 mm-thick solid grade laminate core (doors). 12 mm-thick solid grade laminate core (doors). Manufacturer guidanceCarcass:
Plinth: Lockers fixed onto a floor-mounted MRDMF ladder work plinth as standard. Note: Not applicable if integral bench is specified. |
Finish | Doors/ end panels: solid grade laminate finish with radiused and polished edges; Carcass: Polyester powder coated aluminium. |
Colour | Guidance for specification option: Insert all colour requirements for:
Door frame: black as standard. Manufacturer guidancePowder-coated to colour chosen from Maxwood selector. RAL colour for extra cost. |
Fittings | Manufacturer's standard. Guidance for specification option:
|
Product Reference | Oracle Z Locker |
Mounting | Floor mounted. |
Accessories | End panel, solid grade laminate. Guidance for specification option: Insert details. Integral bench. Guidance for specification option: Option for under-panel to conceal bench legs: consult manufacturer for details. Note: this replaces the standard plinth. Laminated plastic number discs with split key-ring. Locker stands. Guidance for specification option: Heavy-gauge aluminium extrusion, to be used where floor irregularities occur. Number engraving. Guidance for specification option: Onto door. Vinyl numbering. Guidance for specification option: Onto door. Sloped top capping. Guidance for specification option: Suitable for anti-storage or hygiene requirements. Wrist bands. Above-locker panels. |
Lock | Cam lock. Guidance for specification option: Standard. Supplied with two keys. Coin refund. Swivel latch. Guidance for specification option: For user's own padlock. Digital combination lock. RFID touchless lock. |
