Optima® XPC 150 mm (Extruded Plank Rainscreen)

Optima® XPC 150 mm (Extruded Plank Rainscreen)

Sotech Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

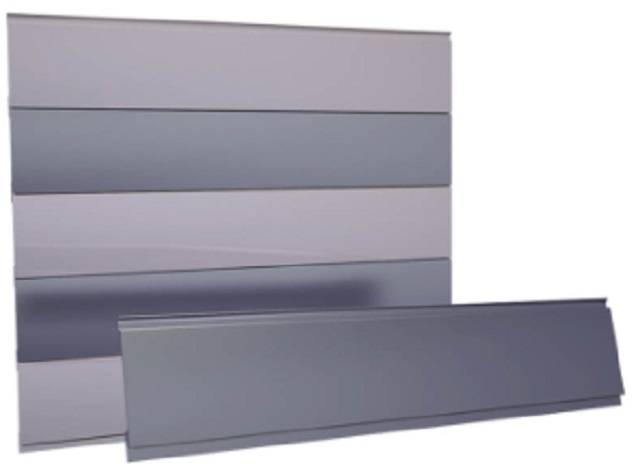

Optima® XPC 150 mm, aluminium extruded plank.

Jump to:
+44 (0)191 587 2287 www.sotech-optima.co.uk
Application

Robust design can be secret-fixed horizontally, vertically or diagonally.

Description

Robust secret fix extruded aluminium plank system available in different standard widths , comprising a 6063 T6 extruded plank panel, XPC carrier rails 'T&L', and adjustable helping hands brackets.


Features and benefits:

  • Adjustable brackets.
  • Also available in different standard widths; 200 mm, 225 mm and 250 mm (specified separately).
  • Recessed or hairline appearance.
  • Seamless integration.
  • CWCT-certified and approved.
  • Compliant to NHBC requirements.


Sotech would be pleased to discuss any bespoke detail proposals.

General information

Finish

PPC

Anodized

Material

Aluminium

Shape

Rectangular

Flat plank system with optional castellated profile.


Size

150 x 6400 mm

Width x maximum length.

WarrantyDescription

Dependent on specified finish and location, consult manufacturer.

-

Uniclass 2015

Pr_25_71_14_02 Aluminium cassette panelsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium cassette panels Enhanced data

Alloy

-

Grade

6063 T6.

Sheet thickness

15 mm.

Panel size

150 x 6400 mm.

Maximum length 6400 mm, insert requirements.

Finish

-

Material

Polyester powder-coated.

Anodized.

Colour

Insert guidance. All PPC and Anodized finishes available.

Environmental information

Recyclability

Prime aluminium.

-

Recycled content

99

Third party certifications
  • CWCT: BS8414, BR135 ISO9001:2015, ISO14001:2015, OHSAS18001:2007
