Optima TFC+ Rainscreen (Through Fix)

Verified by manufacturer 7 months ago

Sotech Ltd Third party certifications:
  • CWCT Certificate

    CWCT Certificate

    Certificate type

  • FPA

    FPA

    Certificate type

The cost effective rainscreen solution requires discreet colour match, wafer head fixings in the vertical panel recesses.

Jump to:
BIM object icon
+44 (0)191 587 9213 Website

Application

Rainscreen cladding system for all types of building including high rise.

Description

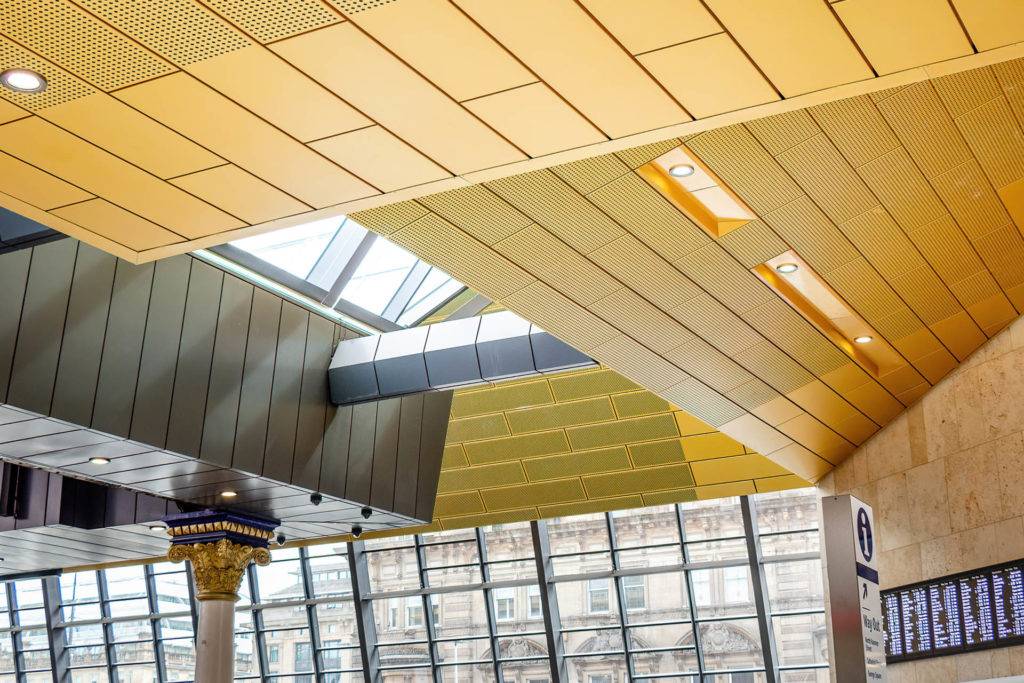

Optima TFC+ Discreet Through Fix Cassette Rainscreen is a ventilated and drained TFC+ cladding system, developed as an economical alternative to a complete secret fix cladding, showing a 20 mm joint vertically and horizontally between panels.


Features and benefits:

  • Can be fixed top-down, or bottom-up.
  • Suitable for large and bespoke panel sizes.
  • Precision fit and finish, with 20 mm joints in both directions.
  • Consistent colour.
  • Cassette recesses are formed from the face of the material.
  • Simple and speedy to achieve discreet fixings.
  • Drained and ventilated system consists of a baffle-jointed series of panels, creating a weather shield in front of a primary structure.
  • Engineered to seamlessly integrate with all other building facade elements such as windows, doors and louvres.
  • Full range of Euroclass A1 and A2, s1-d0 panel materials from 2-4 mm.
  • Fire-tested to BS 8414 and classified in BR135.
  • Mechanical fixing methods (no glue required), provide true A1 and A2 cladding systems.
  • CWCT-tested and certified.
  • Compliant to NHBC requirements.


Consult the manufacturer to discuss bespoke detail proposals.


Support and fixing system:

A fully adjustable system of cleats and carrier profile offers a 'hands free' lining and levelling facility for cladding zones from 100–380 mm. Panels are fixed using colour-coated, self-tapping stainless steel screws through pre-punched holes.

Consult manufacturer regarding structural restrictions, and constraints relating to panel size, fastener type and frequency of fixings.

Aluminium composite material (ACM A2): 4 mm.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Anodized

Powder-coated

Brass

Bright

Brushed

Show more

Material

Aluminium

Stainless steel

Copper

Zinc

Bronze

Show more

Shape

Shapes provided by Sotech.

Square

Standard rectangular and square flat panels.

Rectangle

Standard rectangular and flat panels.

Triangle

Available on request.

Other

Other bespoke shapes such as specialist curving as requested.

Length

Sizes available on request

Bespoke

Sizes available on request

Width

Sizes available on request

Bespoke

Sizes available on request

Height

Sizes available on request

Bespoke

Sizes available on request

WarrantyDescription

Dependant on specified finish and material.

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

Full range of bracket zones to accommodate specified thickness of rockwool insulation.

Breather membrane

-

Material

By installer.

Fasteners

By installer.

Secondary support structure

TFC+ bracket and rail system to take colour-coded fixings.

Cavity fire barriers

-

Horizontal

By others. Siderise tends to be used in our fire tests.

Vertical

By others. Siderise tends to be used in our fire tests.

Cladding panels

-

Material

Aluminium: 2 mm; precoated PVdf or polyester.

Aluminium: 2 and 3 mm; polyester powder-coated (PPC) to BS 6496.

Aluminium: 2 and 3 mm; anodized (25 micrometre minimum) to BS 3987.

Aluminium: 2 and 3 mm; PVdf 70/30 two-coat system (25 micrometre) to AAMA605.

Aluminium: 2 and 3 mm; PVdf 70/30 three-coat system (40 micrometre) to AAMA605.

Aluminium composite material (ACM): 4 mm. A1 and A2, s1-d0, only.

Copper: 1.5 mm; natural finish, and pre-patinated.

Stainless steel (rigidized): 1.2 and 1.5 mm; natural, polished or patterned finish.

Weathered zinc.

Reveals

Typical window reveals as TFC+ details.

Samples required

Finish and system samples available.

System accessories

None.

Column casing.

Coping system.

Corner profile - external.

Corner profile - internal.

Fascia system including bull-nose.

Head profile.

Jamb profile.

Window sill profile.

Thickness

1.2 mm.

1.5 mm.

2 mm.

3 mm.

4 mm.

Environmental information

Contains Red List materials

No

Country of material origin

Multiple places for material origins.

Europe

One of several places material is sourced.

Country of product manufacture

Multiple countries for product manufacture.

Europe

One of several places for manufacture.

Recyclability

Generally prime aluminum.

Generally prime aluminium.

Recycled content

99 %
