Open Fronted Shelter - Smoking and Waiting Shelters
Verified by manufacturer 4 months ago

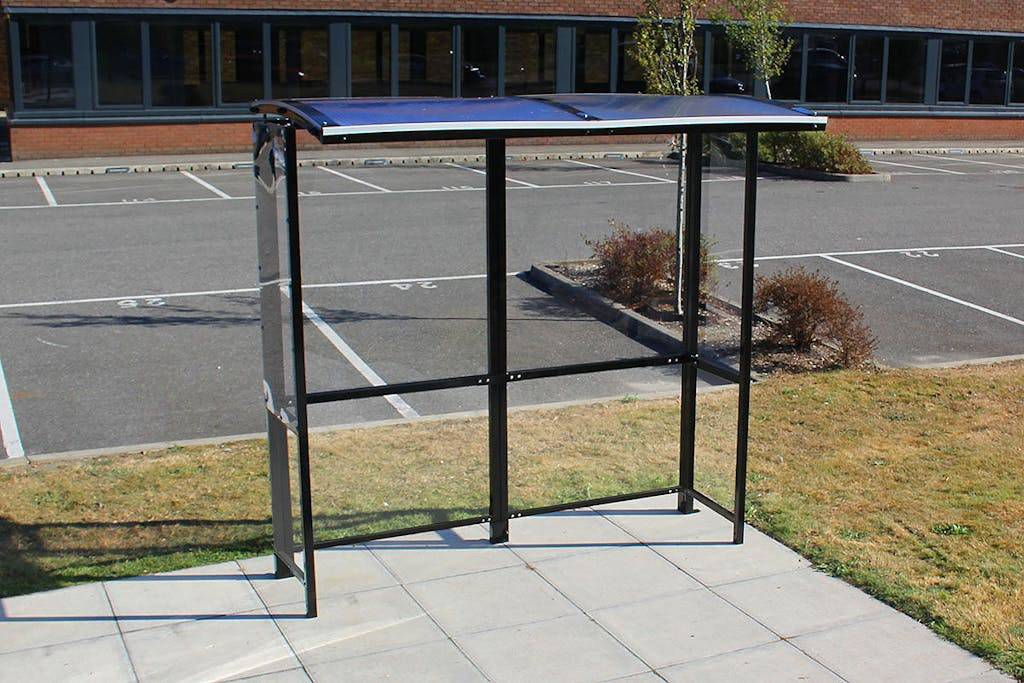

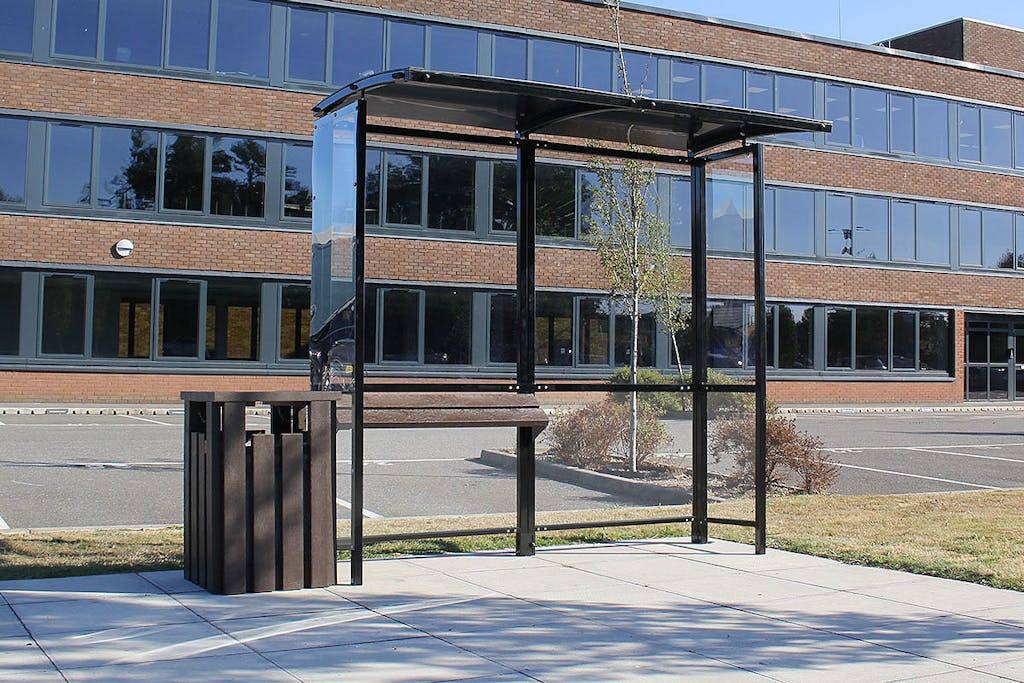

Waiting shelter
Waiting shelter
Range of open-fronted modular smoking or waiting shelters to accommodate up to 14 people.
Application
Freestanding shelter for external use, surface mountable; can also be sub-surface or wall mounted.
Description
Range of open-fronted modular smoking or waiting shelters.
Features and benefits:
- Anti-corrosion surface treatment guarantees the shelter for five years.
- Choose from six standard configurations, five roof types and four standard RAL colour finishes.
- Shelters can accommodate up to 14 people.
- Smoking shelter is compliant with Smoking Ban Legislation – Parliament Act 3368.
- Waiting shelter has full-length side panelling offering year-round protection from all weathers.
- Steelwork is zinc and epoxy powder-coated for effective corrosion resistance and longevity.
- Choose from roof sections made from clear polycarbonate (for a light and airy feel) or aluminium composite (for shade).
- Versatile freestanding shelter creates a designated smoking area for your premises.
- Modular system is easy to install, can be easily self-assembled or the manufacturer's expert installation team.
- Supplied surface mountable as standard; extended feet can be supplied for sub-surfacing.
General information
Color | Black Guidance for specification option: Frame only. Silver Guidance for specification option: Frame only. Green Guidance for specification option: Frame only. Blue Guidance for specification option: Frame only. |
Finish | Powder-coated |
Material | Steel Aluminium Polycarbonate |
Shape | Rectangle Square |
Length | 2100 mm 3100 mm 4100 mm |
Width | 1000 mm 2100 mm |
Height | 2100 mm |
Warranty description | Five year Guidance for specification option: Anti-corrosion surface treatment; consult manufacturer for details. |
Uniclass | |
CAWS | B91/420 Waiting shelter B91/390 Smoking shelter |
Specification data - Semi-closed shelters
Shelter description | Waiting shelter, open-fronted. |
Dimensions | |
Plan size | 2100 x 1000 mm.Guidance for specification option: For 3–5 people. 3100 x 1000 mm.Guidance for specification option: For 5–7 people. 4100 x 1000 mm.Guidance for specification option: For 7–9 people. 2100 x 2100 mm.Guidance for specification option: For 6–8 people. 3100 x 2100 mm.Guidance for specification option: For 10–12 people. 4100 x 2100 mm.Guidance for specification option: For 12–14 people. |
Height | 2100 mm. |
Frame | |
Material | Structural steel.Guidance for specification option: 40 x 40 mm mild steel hollow box section, 2 mm thick. |
Finish | Epoxy powder-coated. |
Colour | Black RAL 9005.Silver RAL 9006.Green RAL 6026.Blue RAL 5002. |
Flooring or decking | Not applicable. |
Panels | 2 mm polycarbonate clear panels, full-height. |
Roof covering | Curved 16 mm triple wall polycarbonate (clear).Curved 3 mm aluminium composite.Apex 16 mm triple wall polycarbonate (clear).Apex 3 mm aluminium composite.Domed 3 mm aluminium composite. |
Accessories | None.Standard picnic table, brown.One integrated perch seat.Two integrated perch seats. |
Mounting | Freestanding, surface mounted. Freestanding, sub-surface mounted. Guidance for specification option: Extended feet to be supplied. Attached to wall. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Aluminium Polycarbonate |
