Old Windsor - Clay Facing Brick
Verified by manufacturer 5 months ago
DF
DF

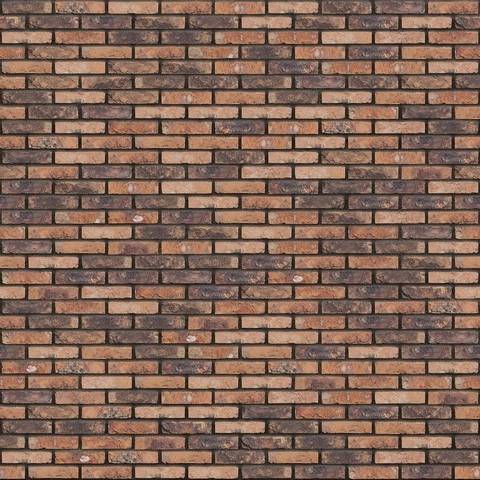

A soft orange facing brick with rose, beige and anthracite multi-coloured shades and a sanded-coated and grained structure.
Application
Facing brick.
Description
A mix of different kinds of clay - "Brunsummer" and "Maas" - forms the basis for this facing brick. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Multi-shade.
- Soft orange base colour with rose, beige and anthracite variations.
- Six joint styles available.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Orange Pink Beige Black |
Finish | Sandfaced |
Material | Clay |
Shape | Rectangle |
Length | 216 mm 209 mm |
Width | 100 mm 99 mm |
Height | 66 mm 50 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Orange, rose, beige and anthracite multi-coloured shades, and a sanded-coated and grained structure. |
Work size (length x width x height) | 216 x 100 x 66 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. |
Durability designation | F2 S2. |
Density | |
Gross dry | 1700 kg/m³. |
Net dry | 1850 kg/m³. |
Tolerance | D1. |
Water absorption | ≤12% m/md.Guidance for specification option: Initial rate of water absorption, to EN 771-1:2011 - 5.3.8:
|
Configuration | Frogged. |
Thermal conductivity | ≤0.51 W/m·K.Guidance for specification option: Lambda 50/50. |
Water vapour permeability | 50/100 µ. |
Bond strength | 0.15 N/mm² (general); 0.30 N/mm² (thin layer). |
Reaction to fire | Class A1 to BS EN 13501-1. |
Jointing | White. Joint free. Grey. Light grey. Tone on tone. |
Dangerous substances | NL-BSB. Guidance for specification option: According to Annex ZA 3. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Netherlands |
Recyclability | Recyclable |
