Ocula FT80 Double Twin Panel Partition System

Name: Ocula FT80 Double Twin Panel Partition System
Brand: Ocula Partitions
SKU: o1BLwRGQYwH761dHtQVfih

Verified by manufacturer 2 months ago

Toughened glass

Ocula Partitions

Third party certifications:

UKAS
Certificate type

A 80 mm twin glazed partitioning system.

Jump to:

+44 (0) 113 253 3546 Website

Application

All sectors covered: commercial, including education, healthcare, MOD (Ministry of Defence), airport and rail, industrial, hospitality, residential, and public. For more detailed information, please consult the manufacturer.

Description

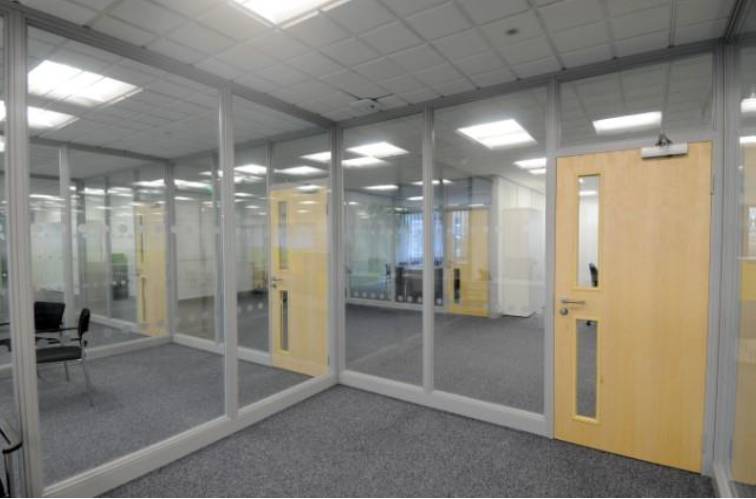

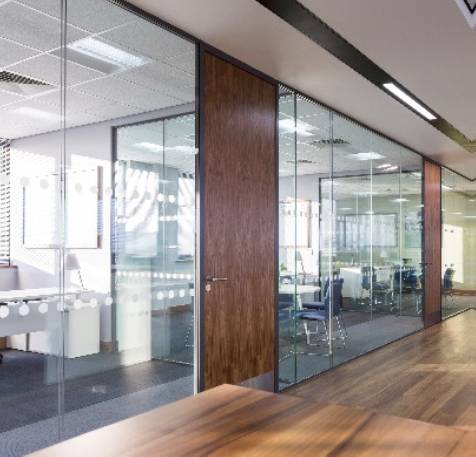

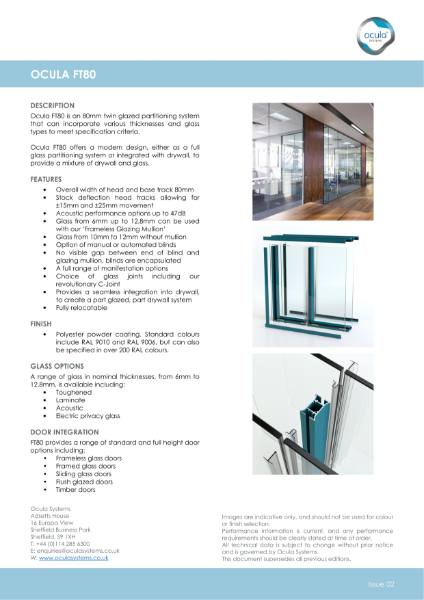

Ocula FT80 is an 80 mm twin-glazed partitioning system that can incorporate various thicknesses and glass types to meet specification criteria. The system offers a modern design, either as a full glass partitioning system or integrated with drywall, to provide a mixture of drywall and glass.

Features and benefits:

Overall width of head and base track 80 mm.
Stock deflection head tracks allow for ±15 mm and ±25 mm movement.

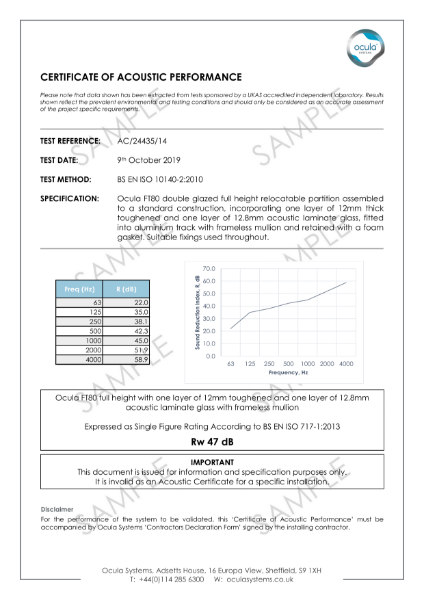

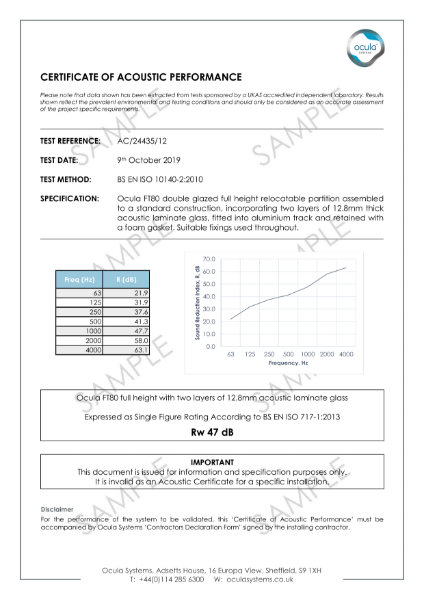

Acoustic performance options up to 47 dB.
Glass from 6 mm up to 12.8 mm can be used with Ocula's ‘Frameless Glazing Mullion’.
Glass from 10 mm to 12 mm without mullion.
Option of manual or automated blinds.
No visible gap between end of blind and glazing mullion, blinds are encapsulated.
A full range of manifestation options.
Choice of glass joints.
Provides a seamless integration into drywall, to create a part glazed, part drywall system.
Fully relocatable.

General information

Color	White Other Black Bronze Brown Copper Blue Cream Gold Green Grey Beige Ivory Purple Red Silver Pink Turquoise Orange Yellow Show more
Finish	Powder-coated
Material	Glass Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke 3000 mm
Warranty description	One year

Uniclass	Pr_25_71_57_60 Partition panelsPrimary
CAWS	K30/10 Relocatable partition system K30/130 Relocatable partition system

Specification data - Partition panels

Unit size	-
Thickness	80 mm.
Partition height (nominal)	Guidance for specification option: Maximum overall partition height: 3000 mm. Insert requirements or refer to a drawing.
Width (nominal)	Guidance for specification option: Maximum panel width (within run): 1200 mm. Insert requirements or refer to a drawing.
Deflection allowance (maximum)	-
Head	+/- 15 mm. Guidance for specification option: F401 50 mm double glazed head track to suit 10–12.8 mm glass +/- 15 mm. +/- 25 mm. Guidance for specification option: F403/105 double glazed deflection head to suit 10–12.8 mm glass +/- 25 mm. No deflection. Guidance for specification option: F400/001 26 mm double glazed track to suit 10–12.8 mm glass - no deflection. Manufacturer guidance Stock deflection head tracks.
Floor	No deflection. Guidance for specification option: F400/001 26 mm double glazed track to suit 10–12.8 mm glass - no deflection.
Verticals	No deflection. Guidance for specification option: F401 50 mm double glazed wall track to suit 10–12.8 mm glass - no deflection. F400/001 26 mm double glazed track to suit 10–12.8 mm glass - no deflection.
Panel partition type	Double glazed.
Framing, fixing points and joints	Channel/ track.
Solid panels	-
Type	Guidance for specification option: Consult manufacturer and insert requirements.
Finish and colour	Guidance for specification option: Insert requirements or omit.
Joint treatment	-
Type	H-joint. I-joint.
Finish and colour	Translucent.
Glazed panels	-
Type	Double-glazed, toughened.
Integral blinds	None. Manual blinds. Automated blinds.
Additional features	None. Manifestation. Switch Glass.
Door arrangement	-
Type	Frameless glass doors. Framed glass doors. Sliding glass doors. Flush glazed doors. Timber doors. Manufacturer guidance Standard and full-height door options available.
Locking	Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule.
Hardware	Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule.
Other features	None. Heat soaked glass. Low-iron glass.

Colour/ Finish	Polyester powder-coated, RAL 9010. Guidance for specification option: Standard colour. Polyester powder-coated, RAL 9006. Guidance for specification option: Standard colour. Polyester powder-coated, RAL. Guidance for specification option: Can be specified in over 200 RAL colours. Consult manufacturer and insert requirements. Polyester powder-coated, BS range. Guidance for specification option: Can be specified in the whole BS range. Consult manufacturer and insert requirements.

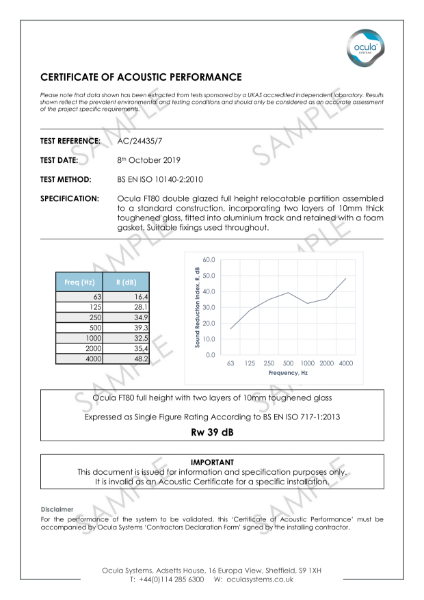

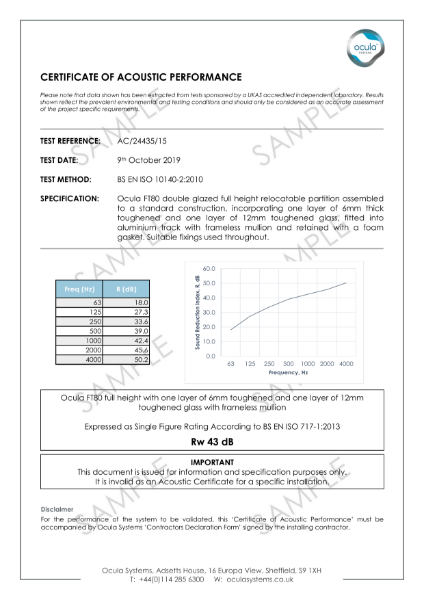

Sound insulation rating	39 dB (Rw). 42 dB (Rw). 43 dB (Rw).
