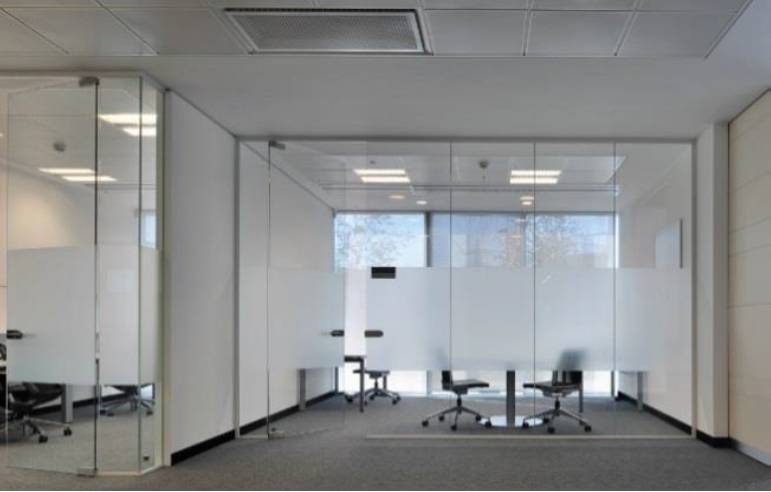

Ocula FS25 Single Glazed Panel Partition System

Verified by manufacturer 2 months ago

10/12 mm Toughened glass

Ocula Partitions Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

A 25 mm single-glazed partitioning system.

Jump to:
+44 (0) 113 253 3546 Website

Application

All sectors covered: commercial, including education, healthcare, MOD (Ministry of Defence), airport and rail, industrial, hospitality, residential, and public. For more detailed information, please consult the manufacturer.

Description

Ocula FS25 is a 25 mm single-glazed partitioning system that can incorporate various thicknesses and glass types to meet specification criteria. The system offers a modern design, either as a full glass partitioning system or integrated with drywall to provide a mixture of drywall and glass.


Features and benefits:

  • Offers a variety of head and base tracks to client specification.
  • Overall width of head and base track 25 mm.
  • Stock deflection head tracks allow for +/-15 mm and +/-25 mm movement.
  • Acoustic performance options up to 39 dB.
  • A full range of manifestation options.
  • Choice of glass joints.
  • Fully relocatable.
  • Fire performance of up to 60/60 (Integrity/ Insulation) steel framed screen.

General information

Color

White

Other

Beige

Cream

Gold

Show more

Finish

Powder-coated

Material

Glass

Aluminium

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

3000 mm

Warranty description

One year

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels

Unit size

-

Thickness

25 mm.

Partition height (nominal)

Guidance for specification option:

Maximum overall partition height: 3000 mm.

Insert requirements or refer to a drawing.

Width (nominal)

Guidance for specification option:

Maximum panel width (within run): 1200 mm. Insert requirements or refer to a drawing.

Deflection allowance (maximum)

-

Head

+/- 15 mm.

Guidance for specification option:

  • F103 50 mm head track to suit 10–12 mm glass +/- 15 mm.
  • F104 50 mm head track to suit 15–17 mm glass +/- 15 mm.

+/- 25 mm.

Guidance for specification option:

F105/106 80 mm single glazed head track +/- 25 mm.

No deflection.

Guidance for specification option:

  • F109/001 26 mm single glazed head track to suit 10–12 mm glass - no deflection.
  • F110/001 26 mm single glazed head track to suit 15–17 mm glass - no deflection .
  • F101 32 mm head track to suit 10–12 mm glass - no deflection.
  • F102 40 mm head track to suit 10–12 mm glass - no deflection.
  • F119 reveal channel to suit 10–12 mm glass - no Deflection.

Manufacturer guidance

Stock deflection head tracks.

Floor

No deflection.

Guidance for specification option:

  • F109/001 26 mm single glazed wall track to suit 10–12 mm glass - no deflection.
  • F110/001 26 mm single glazed wall track to suit 15–17 mm glass - no deflection.

Verticals

No deflection.

Guidance for specification option:

  • F109/001 26 mm single glazed wall track to suit 10–12 mm glass - no deflection.
  • F110/001 26 mm single glazed wall track to suit 15–17 mm glass - no deflection.
  • F101 32 mm wall track to suit 10–12 mm glass - no deflection.
  • F102 40 mm wall track to suit 10–12 mm glass - no deflection.
  • F103 50 mm wall track to suit 10–12 mm - no deflection.
  • F104 50 mm wall track to suit 15–17 mm - no deflection.
  • F119 reveal channel to suit 10–12 mm glass - no deflection.

Panel partition type

Single glazed.

Framing, fixing points and joints

Channel/ track.

Solid panels

-

Type

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish and colour

Guidance for specification option:

Insert requirements or omit.

Joint treatment

-

Type

Tape joint.

Silicone joint.

I-Joint.

Finish and colour

Translucent.

Glazed panels

-

Type

Single-glazed, toughened.

Manufacturer guidance

A range of glass in nominal thicknesses, from 10 to 25 mm, is available. Consult manufacturer for details.

Additional features

None.

Manifestation.

Switch glass.

32 mm applied flat bars.

Door arrangement

-

Type

Frameless glass doors.

Framed glass doors.

Sliding glass doors.

Flush glazed doors.

Timber doors.

Locking

Guidance for specification option:

Consult manufacturer and insert requirements or refer to an ironmongery schedule.

Hardware

Guidance for specification option:

Consult manufacturer and insert requirements or refer to an ironmongery schedule.

Other features

None.

Heat soaked glass.

Low-iron glass.

Colour/ Finish

Polyester powder-coated, RAL 9010.

Guidance for specification option:

Standard colour.

Polyester powder-coated, RAL 9006.

Guidance for specification option:

Standard colour.

Polyester powder-coated, RAL.

Guidance for specification option:

Can be specified in over 200 RAL colours. Consult manufacturer and insert requirements.

Polyester powder-coated, BS range.

Guidance for specification option:

Can be specified in the whole BS range of colours. Consult manufacturer and insert requirements.

Fire resistance of complete system to BS 476-22 (Integrity and insulation)

Non-fire rated.

Sound insulation rating

32 dB (Rw).

Guidance for specification option:

10 mm toughened single glazed.

34 dB (Rw).

Guidance for specification option:

12 mm toughened single glazed.

Sustainability data

Contains Red List materials

No

Third party certifications

UKAS

UKAS

AC/24435/2 - Acoustic Performance - 10mm Toughened Single Glazed 32dB

UKAS

UKAS

AC/24435/3 - Acoustic Performance - 12mm Toughened Single Glazed 34dB

UKAS

UKAS

AC/24435/4 - Acoustic Performance - 12.8mm Acoustic Laminate Single Glazed_37dB

UKAS

UKAS

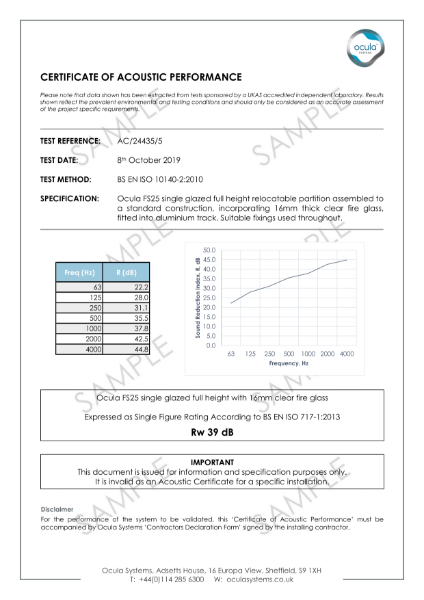

AC/24435/5 - Acoustic Performance - 16mm Clear Fire Single Glazed 39dB

UKAS

UKAS

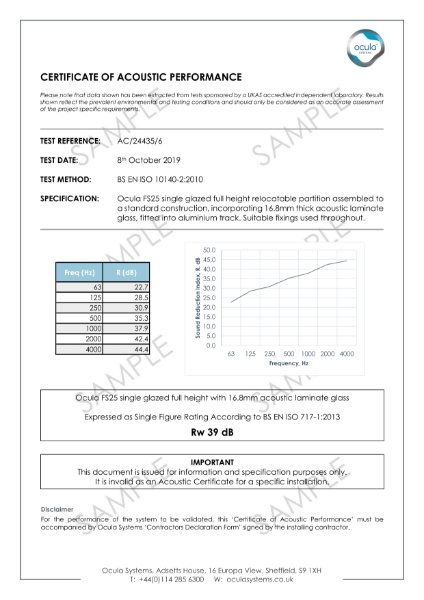

AC/24435/6 - Acoustic Performance - 16.8mm Acoustic Laminate Single Glazed 39dB

UKAS

UKAS

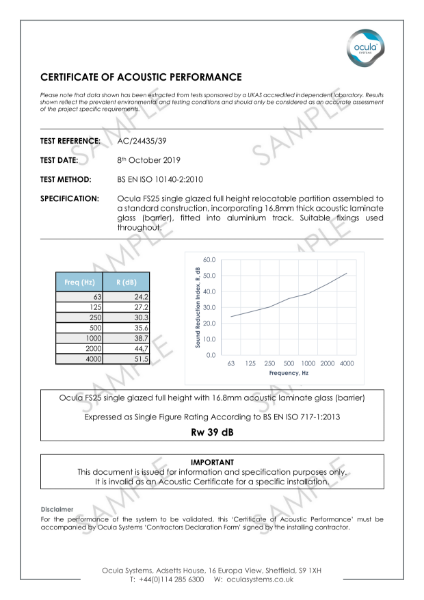

AC/24435/39 - Acoustic Performance - 16.8mm Acoustic Laminate Single Glazed (Barrier) 39dB

UKAS

UKAS

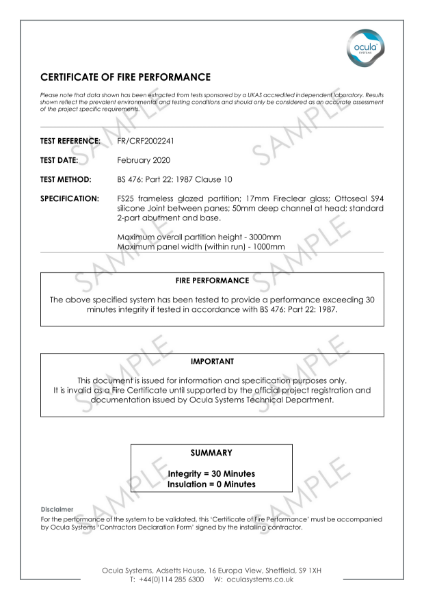

FR/CFR2002241 - Fire Performance - 50mm Head Silicone Joint

UKAS

UKAS

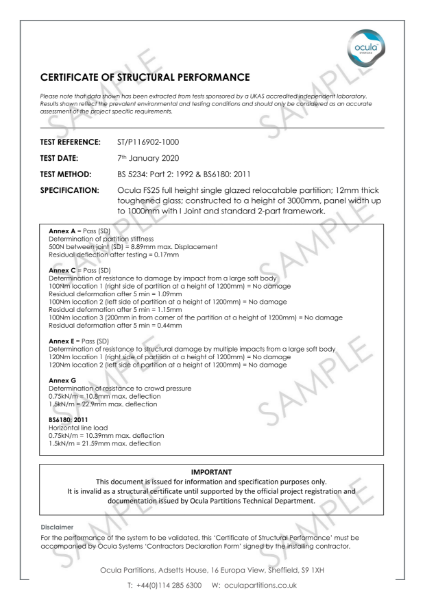

ST/P116902-1000 - Structural Performance - 12mm Toughened Glass 3000mm - FS25

UKAS

UKAS

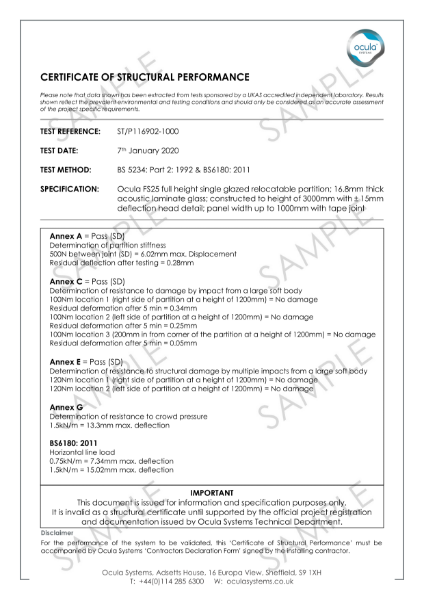

ST/P116902-1000 - Structural Performance - 16.8mm Acoustic Laminate Glass 3000mm

UKAS

UKAS

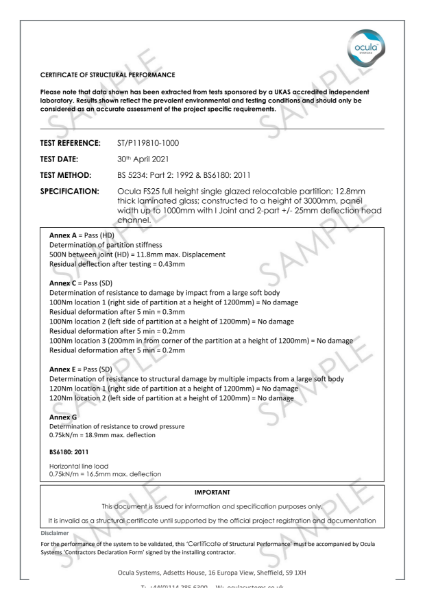

ST/P119810-1000 - Structural Performance - 12.8mm Laminated Glass 2 Part 25mm Deflection Head 3000mm

UKAS

UKAS

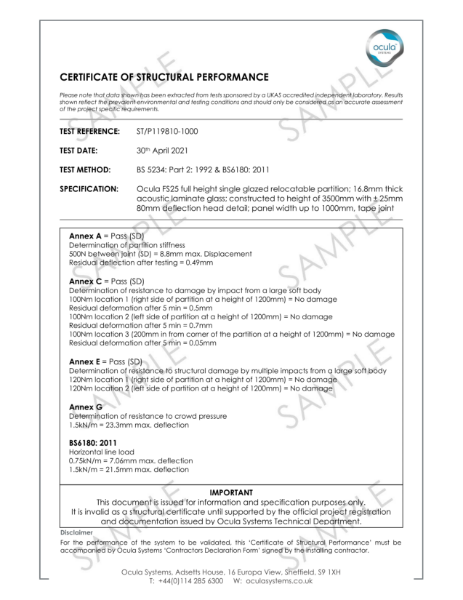

ST/P119810-1000 - Structural Performance - 16.8mm Acoustic Laminate Glass 80mm Head Channel 3500mm

Literature

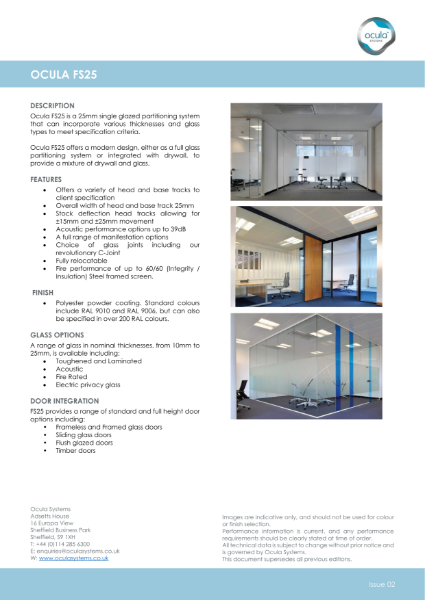

Ocula FS25 Product Data Sheet

Ocula FS25 Product Data Sheet
