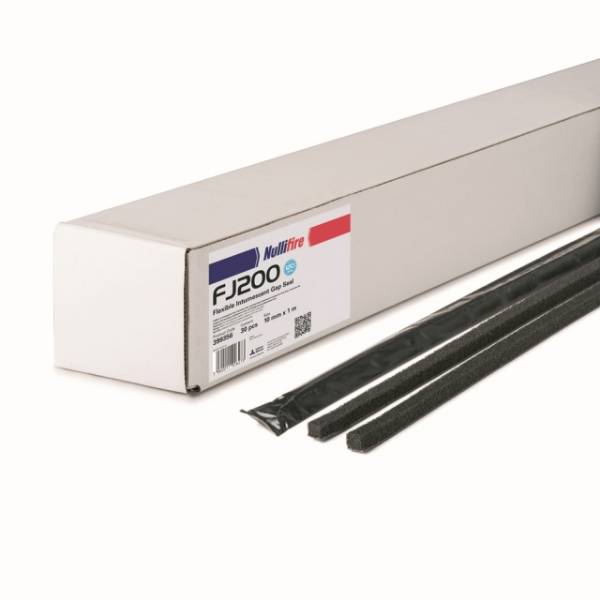

Nullifire FJ200
Certifire Certificate
Certificate type
Flexible intumescent gap seal.
FJ200 can provide up to two hours' fire protection, acoustic and smoke seal to building gaps and movement joints, whilst offering up to 50% movement. Typical areas of use include health and leisure facilities, schools, universities, commercial, retail and industrial buildings. Increased movement capabilities may be achieved by using a larger FJ200 size required for the gap width. It can also be used as a fire barrier inside cable trunkings allowing for the installation of further cables.
Elastomeric foam gap seal laminated with a graphite based intumescent compound on both sides. It is designed to perform as a two-hour barrier in construction movement joints. Suitable for long linear installations in horizontal and vertical applications which when exposed to fire expands protecting penetrations including cables, cable bunches, cable trays, plastic and metallic pipes. FJ200 maintains the integrity and insulation performance of the seal through masonry/ blockwork walls.
Features and benefits:
- Tested in accordance with BS EN 1366-4 and BS 476.
- Certified 3rd party accreditation.
- Fully tested for up to 120 minutes' joint fire resistance.
- Joint movement capability of ±50%.
- Air pressure tested up to 600 Pa.
- Acoustics up to 18 dB.
- Tested for use in linear gaps up to 150 mm.
- Tested with cables, cable bunches, cable trays and cable trunking.
Applications:
FJ200 can provide up to two hours' fire protection, acoustic and smoke seal to building gaps and movement joints, whilst offering up to 50% movement. Typical areas of use include health and leisure facilities, schools, universities, commercial, retail and industrial buildings. Increased movement capabilities may be achieved by using a larger FJ200 size required for the gap width. It can also be used as a fire barrier inside cable trunkings allowing for the installation of further cables.
Material | Elastomeric foam laminated with a graphite based intumescent compound |
Uniclass 2015 | |
CAWS | P12/335 Intumescent foam P12/36 Intumescent foam |
Product Reference | Nullifire FJ200/A210 mm gap, 12 x 12 mm (h x d), for 5–10 mm joint width. Nullifire FJ200/B220 mm gap, 29 x 12 mm (h x d), for 11–20 mm joint width. Nullifire FJ200/C235 mm gap, 53 x 20 mm (h x d), for 21–35 mm joint width. Nullifire FJ200/D250 mm gap, 61 x 35 mm (h x d), for 36–50 mm joint width. Nullifire FJ200/E260 mm gap, 85 x 40 mm (h x d), for 51–60 mm joint width. Nullifire FJ200/F2100 mm gap, 126 x 100 mm (h x d), for 61–100 mm joint width. Nullifire FJ200/G2150 mm gap, 170 x 100 mm (h x d), for 101–150 mm joint width. |
Standard product features | Material: Elastomeric foam laminated with a graphite based intumescent compound. Colour: Black. Density: 75 kg/m³. Performance:
Technical properties:
|
- Certificate: CF 5265
