Nova® MR
Verified by manufacturer 6 days ago
Painted Finish
Painted Finish
High-performance, moisture-resistant gypsum board composed of non-toxic material and moisture-repellent additives designed for durability and long term performance in areas with high humidity.
Application
Suitable for:
- Reception areas.
- Conference and meeting rooms.
- Cafeterias and restaurants.

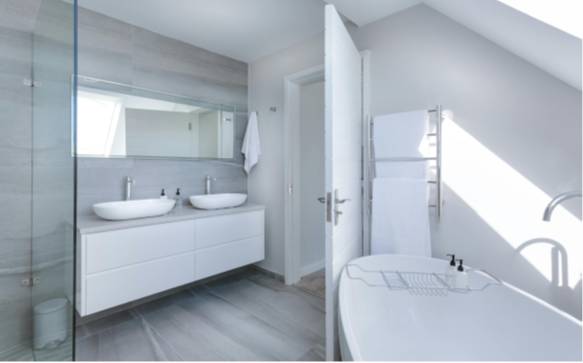

- Bathrooms and humid areas.
- Commercial spaces such as showrooms, offices and malls.
Description
NOVA® MR-H2 is a high-performance, moisture-resistant gypsum board designed for areas with high humidity. It is manufactured using premium-quality gypsum, non-toxic minerals, and moisture-repellent additives, ensuring durability and long-term performance. Engineered with a silicone-treated core, it minimizes water absorption to just 5–10%, preventing swelling, warping, and deterioration.
NOVA® MR-H2 meets ASTM and EN standards, ensuring long-lasting performance for both residential and commercial applications.
Features and benefits:
- Moisture resistance.
- Durability.
- Thermal balanced.
- Lightweight.
- Easy to install.
- Eco-friendly.
- CE marked.
General information
Color | Other |
Finish | Painted Other |
Material | Gypsum |
Shape | Rectangle |
Length | 2000 mm 2400 mm 2440 mm 2500 mm 3000 mm |
Width | 1200 mm 1220 mm |
Height | 8 mm 9.5 mm 12.5 mm 15 mm 15.9 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | K10/15 Lining on timber K10/30 Metal stud K10/155 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/175 Wall lining system (metal furrings) K10/185 Wall lining system (adhesive) K10/205 Lining on timber K10/220 Proprietary suspended ceiling system K10/245 Ceiling lining on timber K10/25 Ceiling lining on timber K10/35 Wall lining system (metal framing) K10/41 Wall lining system (metal furrings) K10/45 Wall lining system (adhesive) K10/50 Suspended ceiling system on metal framing K10/125 Metal stud partition system |
Specification data - Moisture-resistant gypsum plasterboards
Classification data | |
Standard | To EN 520+A1. |
Core | Moisture-resistant. |
Thickness (nominal) | 8.0 mm. 9.5 mm. 12.5 mm. 15 mm. 15.9 mm. 18 mm. Manufacturer guidanceTolerance to EN 520+A1, +0.5/ -0.5 mm. |
Edge profile | Square. |
Width | 1200 mm. 1220 mm. Manufacturer guidanceTolerance to EN 520+A1, +0/ -4 mm. |
Length | 2000 mm. 2400 mm. 2440 mm. 2500 mm. 3000 mm. Manufacturer guidanceTolerance to EN 520+A1, +0/ -5 mm. |
Surface finish | Painted. Guidance for specification option: Water or oil based; consult manufacturer for more details and insert requirements. |
Colour | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Density | To EN 520+A1, 784 kg/m³. |
Area weight | To EN 520+A1, 9.8 kg/m². Manufacturer guidanceWeight per unit area. |
Bending strength | Longitudinal bending strength to ASTM C 1396, 628 N. Transverse bending strength to ASTM C 1396, 222 N. Guidance for specification option: Longitudinal bending strength to ASTM C 1396, 628 N (+/-5 N). Transverse bending strength to ASTM C 1396, 222 N (+/-19 N). |
Hardness | To EN 520+A1, 15 mm. Manufacturer guidanceSurface hardness. |
Water absorption | Face surface to EN 520+A1, 241 g/m². Back surface to EN 520+A1, 238 g/m². |
Water vapour permeability | To EN ISO 12572, 12. |
Reaction to fire | To EN 13501, A2. |
Sustainability data
Material | Gypsum |
