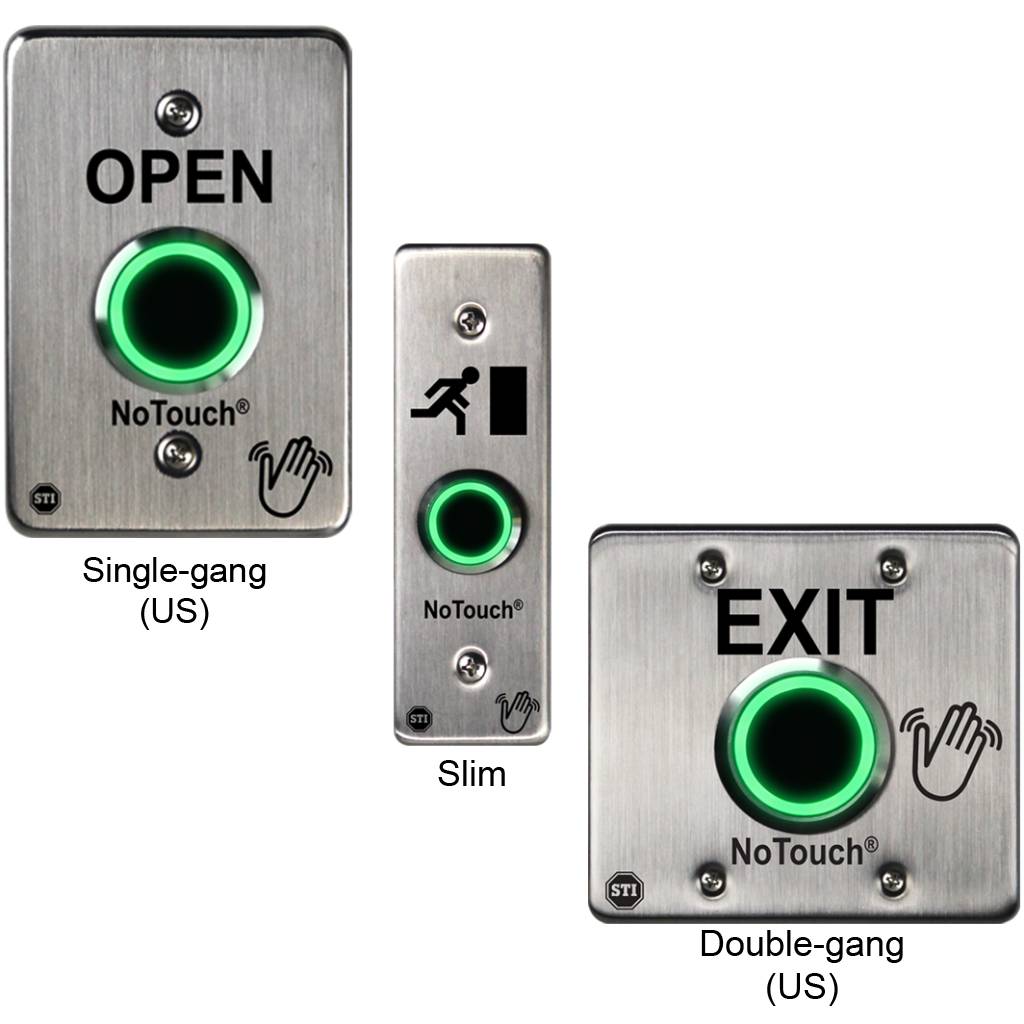

Slim/mullion (includes back box)
A touch free door exit button.
Suitable for public buildings.
This touch free button applies NoTouch® technology which helps reduce the spread of germs in any public building. To exit, a person must simply wave their hand in front of the device. The infrared will detect the motion and unlatch the time adjustable door.
Features and benefits:
Color | Grey |
Material | Stainless steel |
Shape | Square Rectangle |
Width | 38 mm 85 mm 114 mm 91.5 mm |
Height | 122 mm 126 mm 107 mm 91.5 mm |
Warranty description | One year Guidance for specification option: One year guarantee on electro mechanical and electronic components. |
Uniclass | |
CAWS | W90/130 Electronic access control systems W90/130 Electronic access control system |
Material and finish | Grade 304 stainless steel faceplate, polycarbonate button. |
Mounting arrangement | Surface.Flush mounted. |
Engraving | Door symbol (running man).'EXIT'.'OPEN'.Custom.Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceThree interchangeable, illuminated LED message lenses included. |
Operation | Passive infrared non-contact. |
Switch rating | Suitable for 1 A at 24 V d.c., 0.5 A at 120 V a.c. |
Illuminated button | Included.Manufacturer guidanceState indicator LED – Standby/ Active Red/Green (default) or selectable green/red. |
Button characteristics | No-touch sensor area. |
Accessories | KIT-BB0SS Surface mount back box for slim/mullion. |
Signage | EN - English. ES - Spanish. FR - French. |
Ingress protection (IP) rating | IP65 (switch only). |
Material | Stainless steel |
