NoTouch® Cast Aluminium Infrared Contactless Button

Verified by manufacturer 4 months ago

NT-CA300 European single gang

Safety Technology International Ltd Variant:

A touch free door exit button.

Jump to:
+44 (0) 1527 520 999 Website

Application

Suitable for public buildings.

Description

This touch free button applies NoTouch® technology which helps reduce the spread of germs in any public building. To exit, a person must simply wave their hand in front of the device. The infrared will detect the motion and unlatch the time adjustable door.


Features and benefits:

  • Touch free button applies NoTouch technology to help eliminate the spread of germs in any public building.
  • Faceplate constructed of heavy duty die cast aluminium.
  • Button constructed of polycarbonate.
  • Faceplate is slightly oversized to cover old installation marks.

General information

Color

Grey

Silver

Green

Red

Manufacturer guidance

The housing is grey/ silver, and the indication colour can switch between green and red for opening/closing depending on user preference.

Material

Aluminium

Shape

Square

Rectangle

Width

87 mm

82 mm

Height

87 mm

123 mm

Warranty description

One year

Guidance for specification option:

One year guarantee on electro mechanical and electronic components.

Uniclass

Pr_75_30_30_71 Request-to-exit buttonsPrimary

CAWS

W90/130 Electronic access control systems

W90/130 Electronic access control system

Specification data - Request-to-exit buttons

Material and finish

Cast aluminium faceplate, polycarbonate button.

Colour

Housing: Grey/ silver; Indication: Green/ red.

Guidance for specification option:

The indication colour can switch between green and red for opening/closing depending on user preference

Mounting arrangement

Surface.

Flush mounted.

Engraving

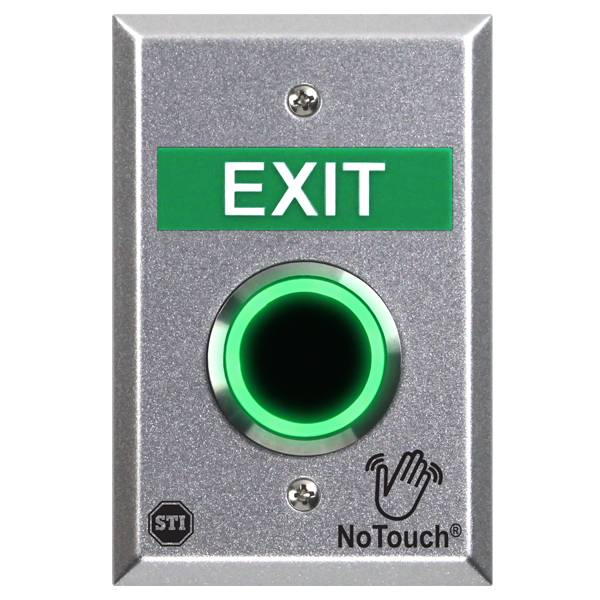

Blue 'EXIT' LED illuminated lense.

Green 'EXIT' LED illuminated lense.

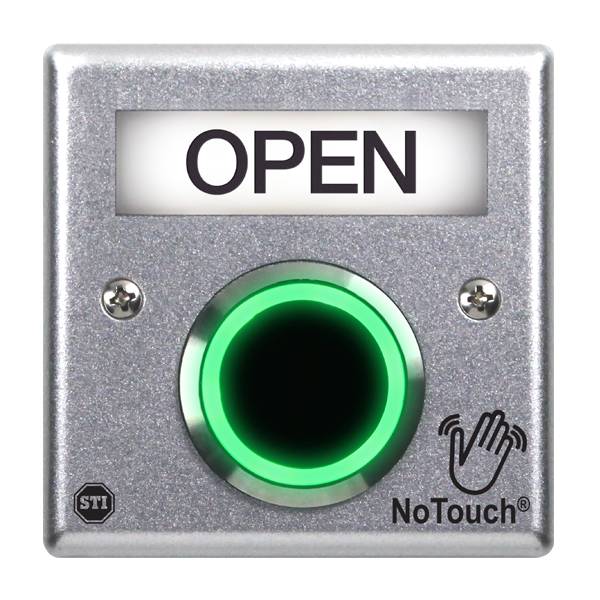

White 'OPEN' LED illuminated lense.

Custom.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Three interchangeable, illuminated LED message lenses included.

Operation

Passive infrared non-contact.

Switch rating

Suitable for 1 A at 24 V d.c., 0.5 A at 120 V a.c.

Illuminated button

Included.

Button characteristics

No-touch sensor area.

Accessories

None.

KIT-BB3CA Surface mount back box for European single gang.

Guidance for specification option:

45 mm depth.

Signage

EN - English.

ES - Spanish.

FR - French.

Sustainability data

Material

Aluminium

Manufacturing plant location

Literature

No Touch Cast Aluminium Button

No Touch Cast Aluminium Button

STI EMEA Product Catalogue 0123

STI EMEA Product Catalogue 0123
