Notifier Inspire Multi-Loop Analogue Addressable Fire Alarm Control Panel - Fire Alarm Control Panels
Verified by manufacturer 2 days ago
INSPIRE E10 2-Loop (HOP-131-206)
INSPIRE E10 2-Loop (HOP-131-206)
A range of addressable, 1 to 8 loop fire alarm control panels.
Application
- Airports
- Education
- Hospitality
- Industrial and manufacturing
- Commercial buildings
- Justice and corrections
- Government and military
- Healthcare
- Retail
- Data centres
- Stadiums and entertainment venues
Description

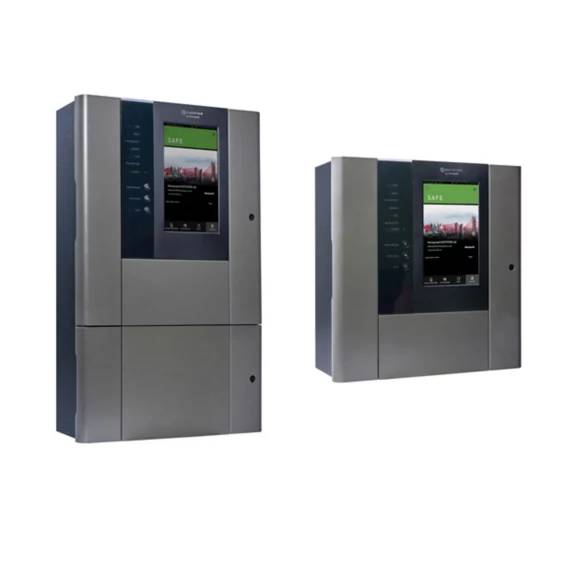

The INSPIRE™ series fire alarm control panel from NOTIFIER by Honeywell is a modular, easy-to-use networkable system available in 10U and 15U enclosures. It uses NOTIFIER’s Opal digital loop protocol to maximise the speed and efficiency of fire detection and alarm whilst supporting legacy CLIP loop protocol devices. The large 10-inch colour display with its intuitive interface, touch screen operation, and menu-driven features allows quick and easy operation of the system.
Features and benefits:
- The INSPIRE panel supports up to 10 modules in a 10U enclosure and up to 14 in a 15U enclosure.
- The 10" display guides users through all operations and data logs with context-driven menus and icons providing clear, user-defined data on the status of the system to provide error-free situation management.
- Graphical and text cause and effect programming tools support on and off site commissioning.
- Backbox with adaptations for 19" rack or semi-flush mounting.
- Most modules can simply be fitted in any slot for ease of wiring.
- Optional battery capacities.
- EN54-2 & 4 Certified.
General information
Color | Grey |
Finish | Semi-gloss |
Shape | Rectangle |
Length | 190 mm 196 mm 250 mm 256 mm |
Width | 455 mm |
Height | 445 mm 665 mm |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
SKU Code | HOP-131-206, HOP-134-412 |
Specification data - Fire alarm panels
Classification data | |
Standard | To EN 54-2, EN 54-13. |
Standby power supply | |
Standard | To EN 54-4. |
Main display | 10-inch colour display. |
Installed capacity | Two loops. |
Printer | Not required. |
Enclosure | |
Ingress protection (minimum) | IP 30. |
Finish | Semi-gloss. |
Colour | RAL 7022. |
Mounting | Surface. Flush. Rack. |
Accessories | Not required. HON-CGW-MBB. Guidance for specification option: Connected Life Safety Services (CLSS) Gateway. HOP-404-100. Guidance for specification option: I/O Module 4CH AUX 24VDC (optional). HOP-405-100. Guidance for specification option: Serial COM Module (optional). HOP-406-100. Guidance for specification option: Fire/Fault Routing Module (optional). HOP-407-200. Guidance for specification option: Dual FBF/FAT COM Module (optional). HOP-433-100. Guidance for specification option: Dual Loop Module OPAL (1 supplied and optional for extension). HOP-631-100. Guidance for specification option: ID2net Network Module (optional). |
Slots | 6 slot backplane (optional up to 10 slots). |
Power supply | 240 W PSU. |
Literature
NOTIFIER-INSPIRE-E-DS-EN-May24
CLSS Connected Gateway DS_EN (1)
