Notifier Pearl 1/ 2 Loop Analogue Addressable Fire Alarm Control Panel - Fire Alarm Control Panel
Verified by manufacturer 2 days ago
PRL-LED-EN-1
PRL-LED-EN-1
Intelligent addressable fire alarm control panel.
Application
Suitable for HMO applications.
Description

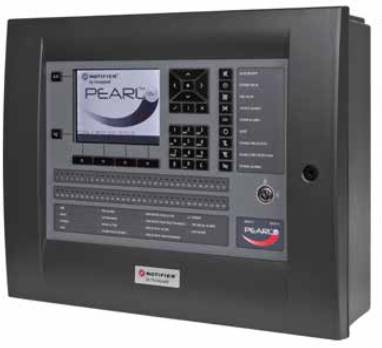

The Pearl fire alarm control panel from Notifier by Honeywell is a networkable one or two loop panel. It uses Notifier’s Opal digital loop protocol to maximise the speed and efficiency of fire detection and alarm.
The large display with its intuitive interface and menu driven features allows quick and easy operation of the system. The Pearl uses a new version of Notifier’s ID²net network enabling the creation of networks consisting of up to 16 Pearl panels. The Pearl panel is supported by an integrated tools suite to enhance and simplify the system management.
Features and benefits:
- One or two loop models available.
- 159 intelligent Opal detectors per loop.
- 159 modules (AV, MCP, input/ output interface modules) per loop.
- 64 zones of fire detection with LED indication per zone.
- Two programmable outputs – monitored for open and short circuits.
- Two programmable inputs.
- Four soft keys programmable to the needs of the user.
- Type B dependency functionality for HMO applications.
- EN54-2 & 4 Certified.
General information
Color | Black |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 145 mm Guidance for specification option: Depth. |
Width | 435 mm |
Height | 355 mm |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
SKU Code | PRL-LED-EN-1 |
Specification data - Fire alarm panels
Classification data | |
Standard | To EN 54-2. |
Third-party certification | LPCB-approved. |
Standby power supply | |
Capacity | 24 V d.c. sealed lead-acid standby batteries, 12–38 Ah (using PRL-BOX). |
Main display | LCD display. |
Zone indication | Individual LED status indicators. |
Installed capacity | One loop, each loop capable of supporting up to 159 detectors plus 159 modules. 64 zones of fire detection. |
Monitored sounder circuits (minimum) | Manufacturer guidanceInsert requirements. |
Indications | Fire zone indicators and system status. |
Controls | Delays to the activation of outputs. Dependencies on more than one alarm signal. Disablement of addressable points. Test condition facilities. |
Outputs | Guidance for specification option: Insert requirements. |
Input device | Alphanumeric keypad. |
Enclosure | |
Ingress protection (minimum) | To EN 60529, IP 30. |
Material | ABS plastics. |
Colour | Black. |
Mounting | Surface. Flush mounting. |
Accessories | PRL-BOX-17. Guidance for specification option: Extension back box for new Pearl installations, surface or flush mounting, includes cover and space for 17 Ah batteries. For flush mounting use PRL-BEZEL-17. 592 x 447 x 110 mm (HxWxD). PRL-BOX-38. Guidance for specification option: Extension back box for new Pearl installations, surface or flush mounting, includes cover and space for 38 Ah batteries. For flush mounting use PRL-BEZEL-17. 592 x 447x 203 mm (HxWxD). PRL-BEZEL-17. Guidance for specification option: Flush mounting bezel for PRL-BOX-17 and PRL-BOX-38 674 x 529 x 47 mm (HxWxD) (internal aperture 594 x 449 mm). PRL-FM. Guidance for specification option: Flush Mount Dress Ring (inc 19” Rack kit). PRL-P2P. Guidance for specification option: ID²net Network Card. HON-CGW-MBB. Guidance for specification option: CLSS Connected Gateway is Honeywell Fire’s permanent building connection to a Honeywell fire system panel, serving as a portal between the panel, Cloud and any peripheral devices. Refer to manufacturer's literature for details. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Literature
hba-fire-990-162-1119-Pearl-datasheet
CLSS Connected Gateway DS_EN (1)
