Notifier Addressable Electronic Sounders and Visual Alarm Devices

Verified by manufacturer 2 days ago

BRH-PC-I02 - Detector Base Sounder Strobe (Premium)

NOTIFIER Variant:

A range of Addressable electronic sounders and Visual Alarm Devices

Jump to:
+44 (0) 203 4091779 Website

Application

  • Office buildings
  • Public buildings
  • Bathrooms
  • Hotels
  • Noisy environments

Description

A range of sounder strobe and base sounder & Visual Alarm Devices products.

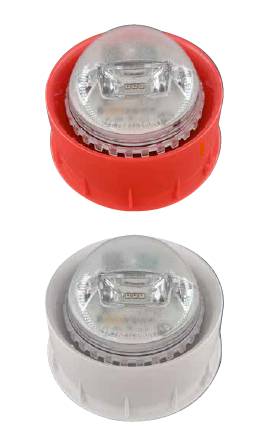

Wall Mount Sounder Visual Alarm Devices (VAD)

NOTIFIER by Honeywell’s Wall Mount Sounder Visual Alarm Devices are modular, high-output loop powered device intended to alert all building occupants of a potential fire.

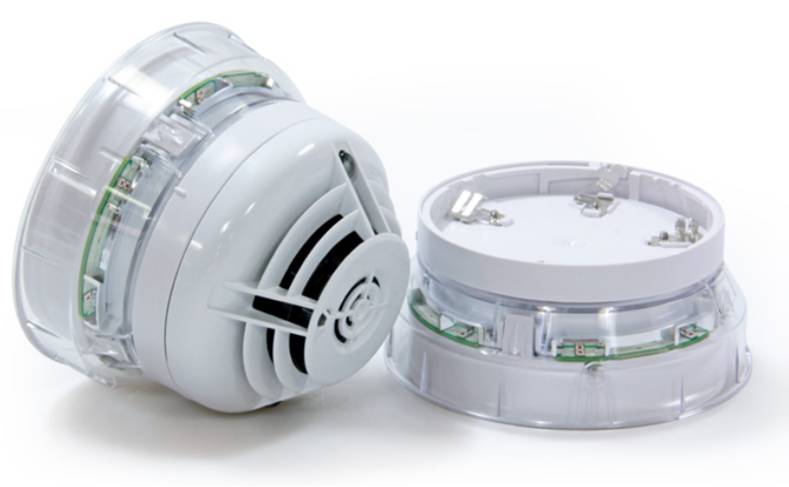

Intelligent Detector Base Sounder Visual Alarm Devices (VAD)

NOTIFIER by Honeywell’s Detector Base Sounder Visual Alarm Devices (VAD) are modular, high-output loop powered device intended to alert building occupants of a potential fire. The device is available in two variants - premium and standard options. Important note: To achieve an IP21C rating, the provided seal must be fitted to the product.

Features and benefits:

  • Approved to EN 54-3, EN 54-17, EN 54-23.
  • Enables a complete, fully compliant, and cost-effective fire alarm system by reducing installation and commissioning costs through fewer wiring points.
  • Global and approved 32 tone set, selectable from device or from panel.
  • Automatic synchronization of sounder and Visual Alarm Device.
  • Maximum light and sound output with efficient power consumption enables more devices on a loop.
  • Premium device with high light coverage reduces wiring points.

General information

Color

White

Red

Shape

Circle

Length

121 mm

125 mm

Width

121 mm

125 mm

Height

60 mm

Uniclass

Pr_75_80_30_30 Fire alarm soundersPrimary

CAWS

W90/338 Visual alarm devices

W90/337 Sounders

SKU Code

BRH-PC-I02

Specification data - Fire alarm sounders

Classification data

Standard

To EN 54-3, EN 54-17, EN 54-23.

Third-party certification

CE, LPCB.

Sounder type

Electronic sounder.

Rated voltage

15–29 V d.c.

Sound patterns

32 tones.

Enclosure protection

IP21C.

Manufacturer guidance

With low profile B501AP base and IP seal.

Sound pressure level (minimum)

95 dBA at 1 m.

Manufacturer guidance

Sound output, typical. ± 3 dB (Tone 3, high volume at 24 V).

Please refer to the installation manual to check the typical sound output at other tones.

Integral beacon

To EN 54-23, C-3-15 (high output mode); C-3-11 (lower power mode); O-1-4 (legacy mode).

Mounting

Surface.

Power supply

From loop.

Colour

Red flash, white body.

Accessories

B501AP - Low profile, pure white base.
