Notifier Electronic Sounders
Verified by manufacturer 2 days ago

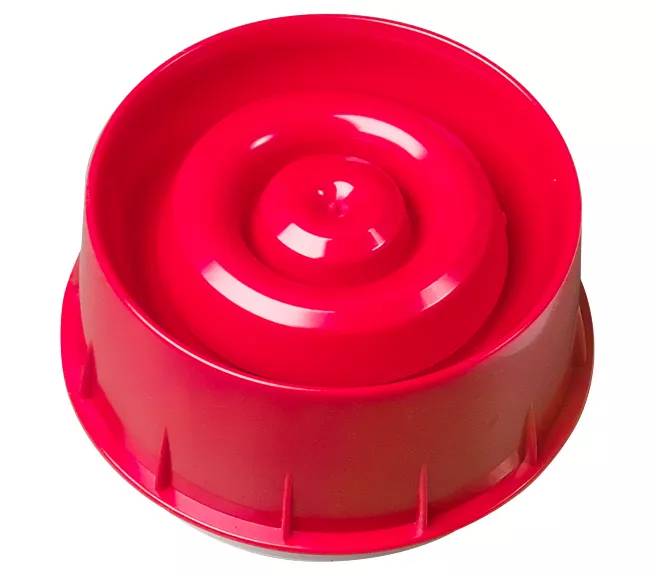

WSO-PR-I02 - Wall mount sounder
WSO-PR-I02 - Wall mount sounder
Intelligent wall mount sounder.
Application
Suitable for audible warning in the vent of an emergency in all building types.
Description
Wall Mount Sounder is a loop powered device designed to alert building occupants of an emergency. It utilizes the System Sensor B501AP base for improved installation flexibility and integrates with Notifier intelligent detection devices. When triggered by the fire panel its sounder gives an audible warning. A choice of output levels and tones make the device suitable for a wide variety of applications.
Features and benefits:
- Faster installation.
- Flexible installation.
- Reduced install errors and easy fault finding.
- Reduced full life costs.
- Excellent system performance.
- Reduced inventory count.
- Fully synchronised tones across control panel.
- EN54 certified
General information
Color | White Red |
Material | Plastic |
Shape | Circle |
Length | 121 mm |
Width | 121 mm |
Height | 64 mm 55 mm |
Uniclass | |
CAWS | W90/337 Sounders |
SKU Code | WSO-PR-I02 |
Specification data - Fire alarm sounders
Classification data | |
Third-party certification | LPCB-approved. |
Sounder type | Electronic sounder. |
Sound pressure level (minimum) | 97 dBA at 1 m (maximum). Guidance for specification option: High volume, Tone 8 at 24 V. Tone dependant. Figure stated is based on high volume 970 Hz continuous at 24 V d.c. |
Mounting | Surface. |
Power supply | From loop. |
Colour | Pure white skirt, red body. |
Lens | Red. Amber. Clear. |
Base | BPW. Guidance for specification option: Surface mount deep base in pure white, IP44 (with surface mount base). BRR. Guidance for specification option: Surface mount deep base in red, IP44 (with surface mount base). |
Sustainability data
Material | Plastic |
Literature
WSO and BSO base spec-Intelligent-Detector-Base-Sounder
HBT-Fire-1427-Addressable-sounder-dep-eng
