Naturally occurring sodium bentonite granules ideal for detailing to the Newton HydroBond System where HydroBond 403 Plus terminates to building elements
Suitable for use on both new and remedial waterproofing projects, including:

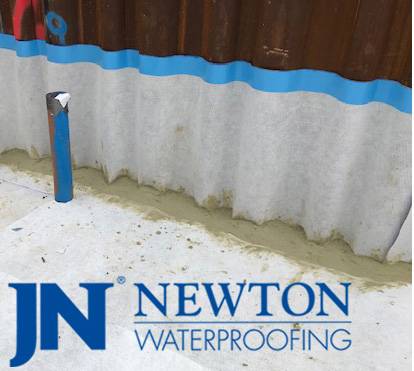

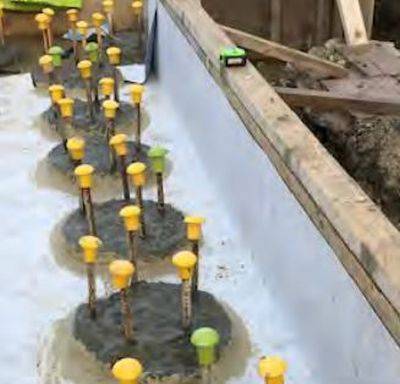

Suitable for detailing to the Newton HydroBond System where HydroBond 403 Plus terminates to building elements such as piled walls, support piles, pile caps, and protrusions through the membrane.
Bentonite is an absorbent clay formed millions of years ago from volcanic ash. There are different types of bentonite but all expand to an extent when hydrated. The sodium bentonite in HydroBond 314 Bentonite Granules can absorb many times its mass in water.
The property of swelling on contact with water makes sodium bentonite useful as a sealant since it provides a self-sealing, low permeability barrier. When in contact with water, HydroBond 314 Bentonite Granules swells up to 15 times its initial size to form a dense, water impermeable paste. When confined, the swell is controlled, forming a dense waterproofing component that fully seals these otherwise difficult to detail joints against water ingress.
Consult manufacturer for details on surface preparation.
Features and benefits:
Color | Grey |
Finish | Smooth |
Material | Clay Guidance for specification option: Bentonite clay granules |
Shape | Formless |
Length | 2 mm 3 mm 4 mm 5 mm 6 mm |
Width | Bespoke |
Height | 2 mm 3 mm 4 mm 5 mm 6 mm |
Uniclass | |
CAWS | D40/565 Proprietary waterstops E40/320 Hydrophilic waterstops |
Product range |
Composition | A naturally occurring sodium bentonite in the form of varying sizes of granules. |
Primer | No primer. |
Category | Concrete joint and leak sealing. |
Colour | Grey. |
Specific gravity (in container) | 0.8. |
Specific gravity (in use) | 2.6. |
Installation temperature | 5–40°C. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
