Description

Ancillary waterproof lining products for use during the installation of Newton System 800 damp proofing systems.

Newton Back-Box Liner (BX1 and BX2):

Pre-formed waterproof lining for either single or double sized electrical pattress boxes, joists, beams, and pipes. Available in two standard sizes.

Newton Pipe Sleeve (BX3):

Waterproof sleeve for 110 mm O/D waste pipe entries and protrusions through the wall or floor membrane.

Seal to the membrane with Newton Waterseal Tape. Over seal with Newton Overtape or with Newton Mesh Tape to meshed wall membranes – consult manufacturer for information.

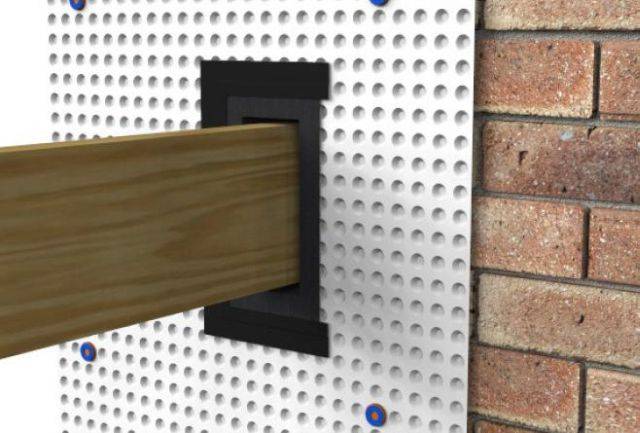

Newton Joist Liner (BX4):

Waterproof lining for steel or timber joist ends. Made to order.

Both linings can be sealed to the membrane with Newton Waterseal Tape, and over sealed with Newton Overtape or Newton Mesh Tape to meshed membranes – consult manufacturer for information.

General information
Size

Manufacturers' standard

For Newton Back-Box Liner products. See 'Options' below for information.

Made to order

For Newton Joist Liner. Consult manufacturer and insert requirements.

Uniclass 2015
Rubber studded sheets (Pr_25_57_51_74)Primary
Specification data - Rubber studded sheets
Product Reference

Newton Back-Box Liner – Double box (BX2)

Newton Back-Box Liner – Single box (BX1)

Newton Joist Liner (BX4)

Newton Pipe Sleeve (BX3)

Size

Manufacturers' standard

For Newton Back-Box Liner products. See 'Options' below for information.

Made to order

For Newton Joist Liner. Consult manufacturer and insert requirements.

Standard product features

Colour:

Black.

Product Options

Size:

– Manufacturers' standard:

  • Newton Back-Box Liner – Double box (BX2): 200 x 134 x 35 mm.
  • Newton Back-Box Liner – Single box (BX1): 134 x 134 x 35 mm.
